Code: 104920
Warranty: 1 Year Warranty
Description
Description
x

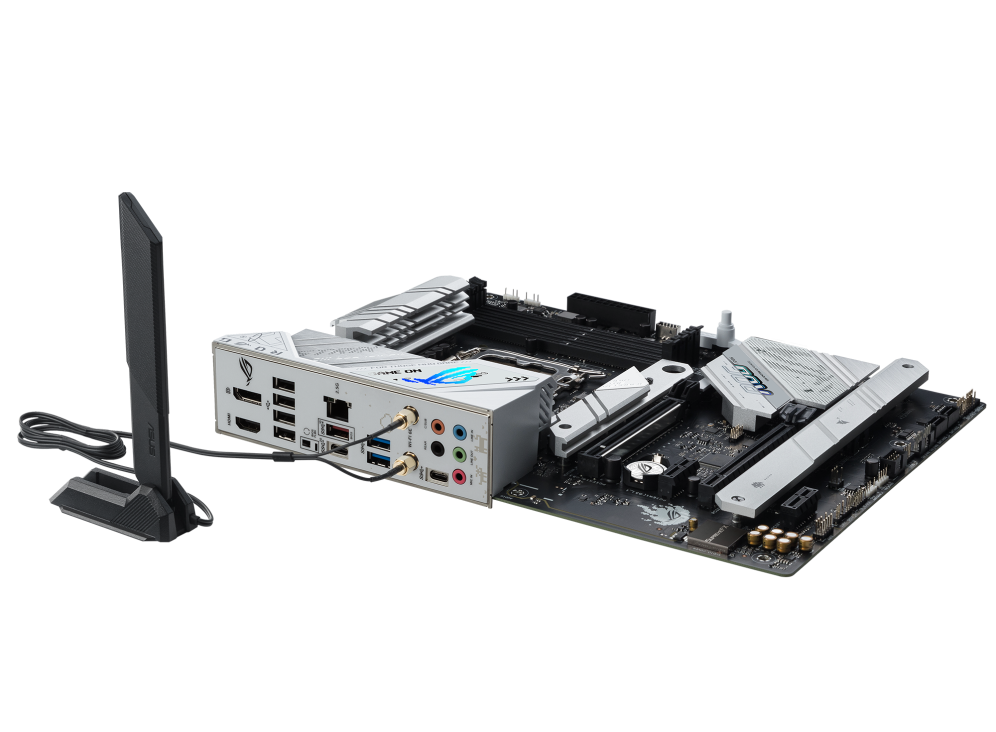

On its face, the Strix B760-A D4 wears a light aesthetic, but beneath its grey aluminum heatsinks lies a dark PCB flush with high-performance hardware. A VRM configuration equipped to handle high-core-count Intel® 13th Gen processors, PCIe 5.0 bandwidth for graphics cards, and next-gen WiFi 6E team up to bring devilishly good gaming to this heavenly board.

PRODUCT SPECIFICATIONS

Socket
LGA1700
Chipset
Intel® B760 Chipset

CPU Supports

 Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
Memory 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Expansion slots Intel® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot

Intel® B760 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)*
2 x PCIe 3.0 x1 slots*

* PCIe x1(G3)_1 and PCIe x1(G3)_2 slots share bandwidth with PCIe x16(G3). When PCIe x1(G3)_1 or PCIe x1(G3)_2 slot is operating, PCIe x16(G3) will only supports x2 mode.

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ports
  • Rear USB (Total 9 ports)
    1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
    1 x USB 3.2 Gen 2 port (1 x Type-A)
    3 x USB 3.2 Gen 1 port (2 x Type-A, 1 x USB Type-C®)
    4 x USB 2.0 ports (4 x Type-A)

    Front USB (Total 6 ports)
    1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 port
  • Audio Ports:
    ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
    - Impedance sense for front and rear headphone outputs
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    - Supports up to 32-Bit/384 kHz playback
    Audio Features
    - SupremeFX Shielding Technology
    - Savitech SV3H712 AMP
    - Premium audio capacitors
    - Dedicated audio PCB layers
    - Audio cover
    *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis
  • Back Panel ports:
    1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
    1 x USB 3.2 Gen 2 port (1 x Type-A)
    3 x USB 3.2 Gen 1 ports (2 x Type-A, 1 x USB Type-C®)
    4 x USB 2.0 ports (4 x Type-A)
    1 x DisplayPort
    1 x HDMI® port
    1 x Wi-Fi Module
    1 x Intel® 2.5Gb Ethernet port
    5 x Audio jacks
    1 x BIOS FlashBack™  button
  • Internal I/O ports:
    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    4 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    1 x 4-pin +12V Power connector
    Storage related
    3 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
    1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Aura RGB header
    1 x Clear CMOS header
    1 x Front Panel Audio header (AAFP)
    1 x S/PDIF Out header
    1 x 20-5 pin System Panel header
    1 x Thunderbolt™ (USB4®) header
Special Features Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Operating System
Support for Windows® 11 64-bit, Windows® 10 64-bit
Dimensions
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
