BND 140.00
Code: 104481
Warranty: 3 Months Warranty
Description
Description
x

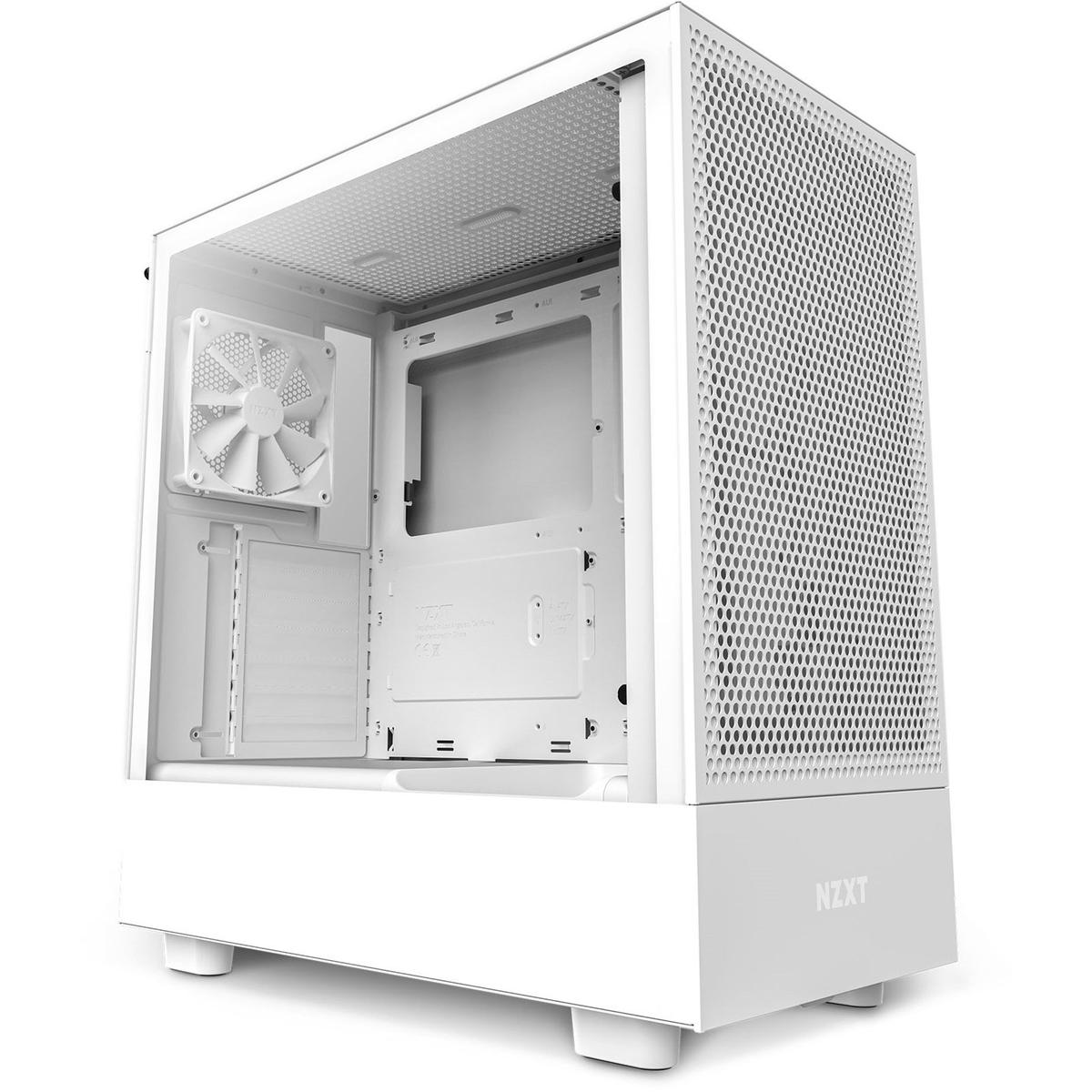

The H5 Flow features a perforated front panel to generate an extra dimension of airflow for maximum cooling potential. With optimized thermal performance and intuitive cable management, the H5 Flow is an ideal chassis for most builds.

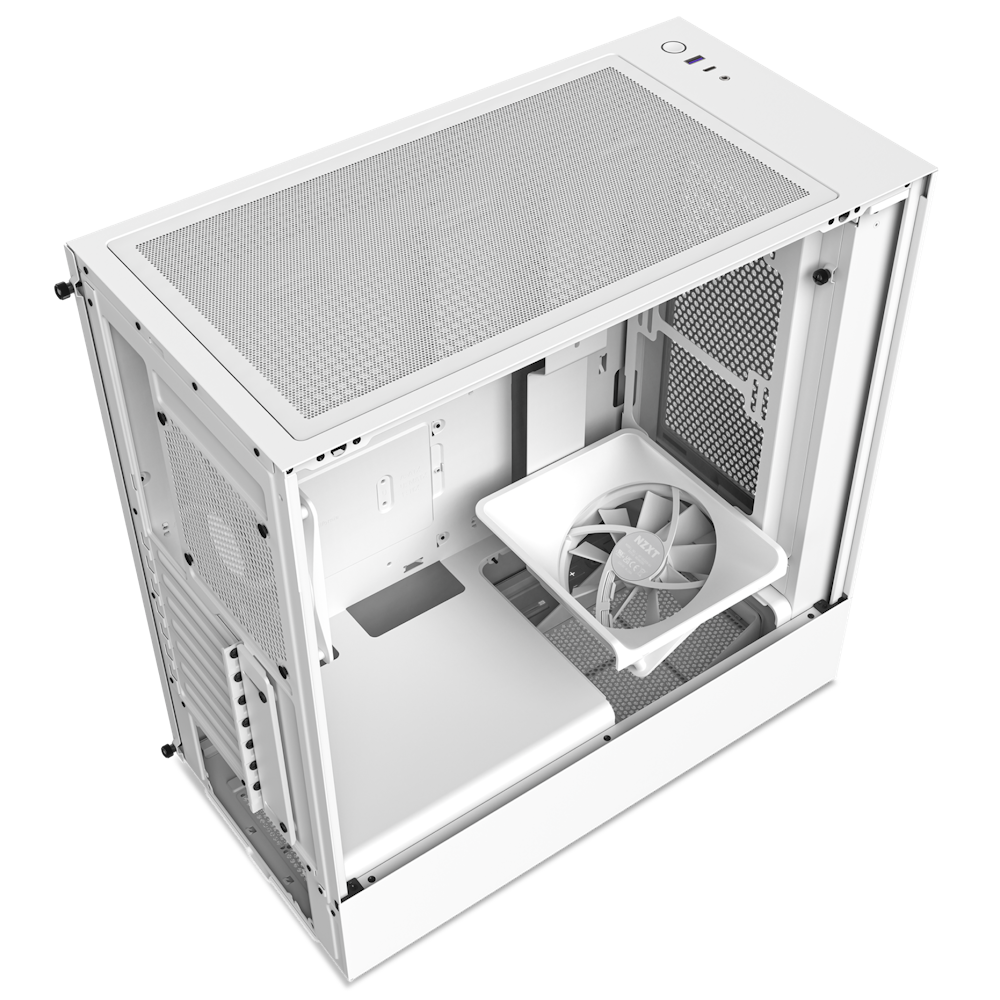

  • Dedicated fan on bottom inside panel is angled to cool GPU
  • Perforated front panel provides optimal ventilation

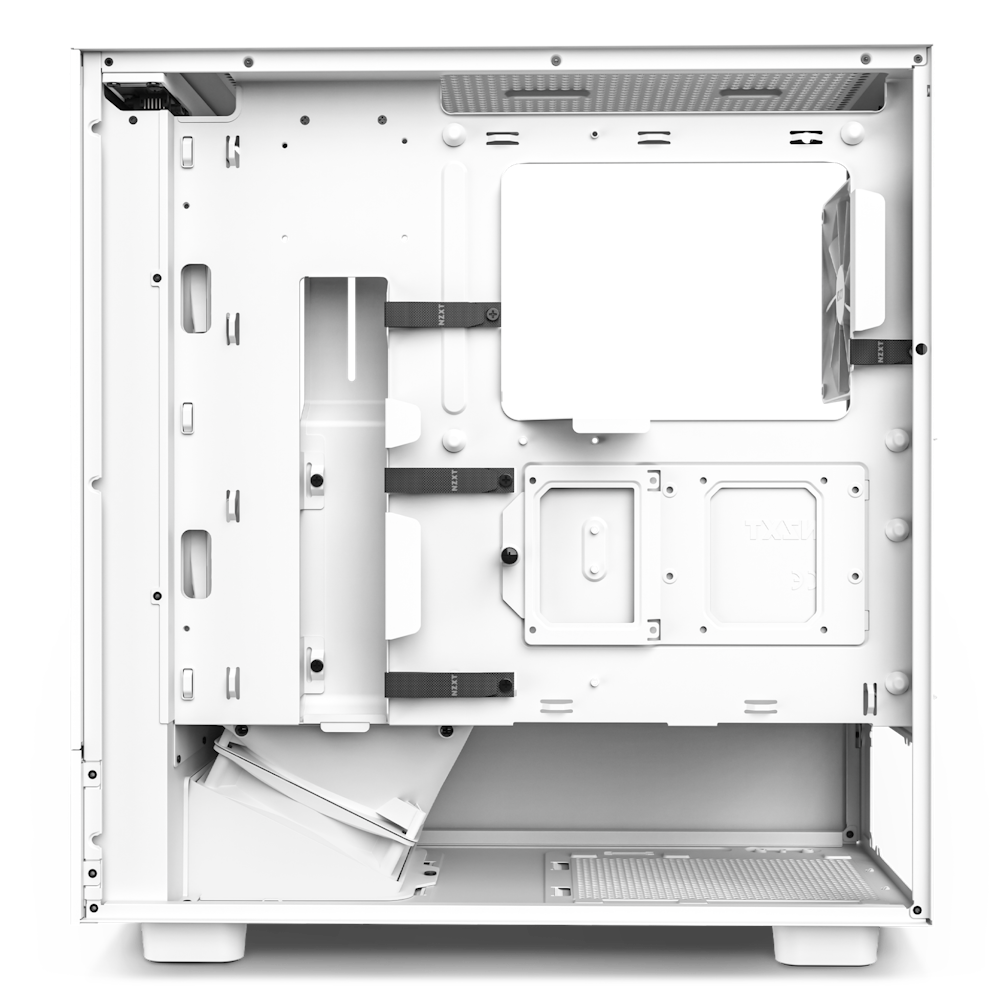

  • Intuitive cable management system with wide channels, hooks, & straps
  • Tool less access to front and side panels
  • Front panel supports up to 2 x 140mm fans or 280mm radiator
  • Top panel supports up to 2 x 120mm fans or 240mm radiator
  • Includes two pre-installed F120Q fans

Specifications

Key Specs

  • Motherboard Support: Mini-ITX, Micro-ATX, ATX

  • Enclosure Type: Mid-Tower

  • Case Material: SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)
Dimensions

  • Height: 464mm (With Feet)

  • Width: 227mm

  • Depth: 446mm

  • Weight: 7.01 kg
Compatibility and Clearance

  • Max CPU Cooler Clearance: Up to 165mm

  • Max GPU Clearance: Up to 365mm

  • Front Radiator Clearance: 45mm

  • Cable Management: Up to 23mm
Front I/O Ports

  • USB 3.2 Gen 1 Type-A: 1

  • USB 3.2 Gen 2 Type-C: 1

  • Headset Audio Jack: 1
Expansion Slots

  • Standard: 7

  • Vertical: 0
Drive Bays

  • 2.5": 1+1

  • 3.5": 1
Fan Support

  • Front: 2 x 120mm / 2 x 140mm

  • Top: 2 x 120mm

  • Rear: 1 x F Series Quiet 120mm (Case Version) included

  • Bottom: 1 x F Series Quiet 120mm (Case Version) included
Radiator Support

  • Front: Up to 280mm

  • Top: Up to 240mm

  • Rear: Up to 120mm
Fan Specs

  • Model: F120Q (Case Version)

  • Speed: 1200 ± 240RPM

  • Airflow: 62.18 CFM

  • Static: 1.05 mm - H2O

  • Noise: 25.1 dBA

  • Fan Connector: 3-pin
