Product Description
xKey Features
- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 14+2+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click：M.2 heatsinks with screwless design
- Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage：3*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking：2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity：HDMI,Displayport
-
PCIe UD Slot ：PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Specifications
| CPU Support | AMD Socket AM5; Supports Ryzen™ 9000/8000/7000 Series Processors. Refer to GIGABYTE's website for the latest CPU support list. |
| Chipset | AMD B850 |
| Memory | - DDR5 up to 8200(O.C.) MT/s - 4 x DIMM slots, up to 256 GB (64 GB per slot) - Dual-channel architecture, AMD EXPO™, and XMP support |
| Onboard Graphics | - Integrated AMD Radeon™ Graphics - 1 x DisplayPort: 3840x2160@144Hz (HDR, DP 1.4) - 1 x HDMI: 1920x1080@30Hz (HDR, HDMI 1.4) |
| Audio | Realtek® Audio CODEC: |
| - Rev 1.0: Realtek® high-definition CODEC supporting 2/4/5.1/7.1 channels - Rev 1.1: Realtek® ALC1220 CODEC with DSD audio |
|
| Networking | - LAN: Realtek® 2.5GbE chip - Wi-Fi 7 (Realtek® RTL8922AE): 802.11a/b/g/n/ac/ax/be, Bluetooth 5.4 |
| Expansion Slots | - PCIe 5.0 x16 for GPUs and SSDs (Ryzen 9000/7000 support) - Additional PCIe slots: 2 x PCIe 3.0 x1 |
| Storage Interface | - 3 x M.2 slots - PCIe 5.0, PCIe 4.0 supported depending on CPU - 4 SATA 6 Gb/s connectors - RAID 0, 1, 5 (Ryzen 9000 only), and 10 for NVMe and SATA |

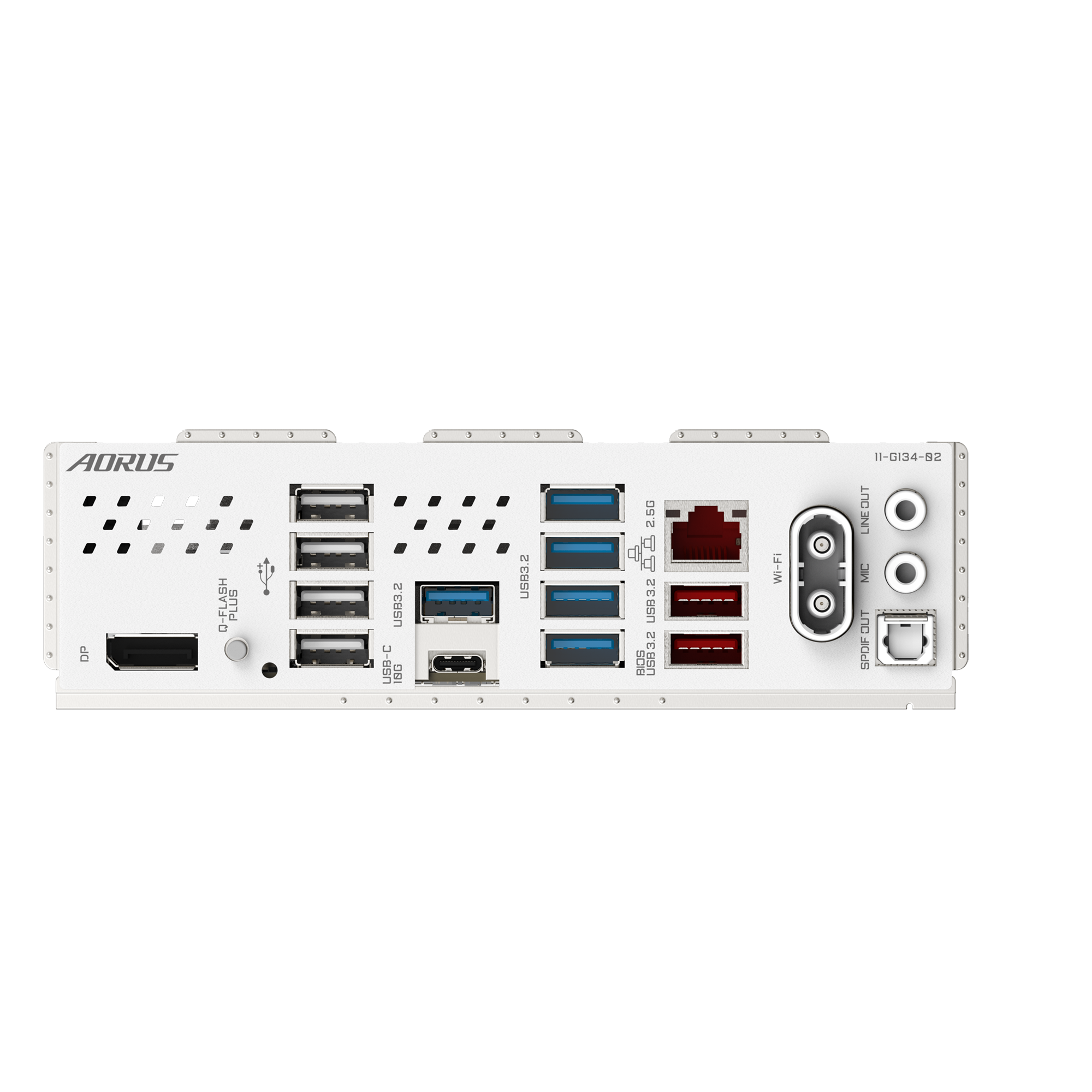

| USB Ports | - Back Panel: 4 x USB 2.0, 5 x USB 3.2 Gen 1, 2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C® - Internal: USB 3.2 Gen 2x2 Type-C header, USB 3.2 Gen 1 header, USB 2.0 headers |
| Internal I/O Connectors | - Power: 24-pin ATX, 8-pin 12V, 4-pin 12V - Cooling: 1 x CPU fan header, 1 x water cooling pump header, 3 additional fan headers - Lighting: 3 x RGB Gen2 headers, 1 x RGB LED header - Storage: 3 x M.2 connectors, 4 x SATA connectors |
| BIOS | AMI UEFI BIOS with Q-Flash, Q-Flash Plus, and GIGABYTE Control Center (GCC) support |
| Software | Includes Norton® Internet Security (OEM), LAN bandwidth manager |
| Operating System | Supports Windows 11 64-bit only |
| Wireless Capabilities | Wi-Fi 7 with 2.4/5/6 GHz bands, Bluetooth 5.4, supports 11be protocol |
| Form Factor | ATX (30.5cm x 24.4cm) |
