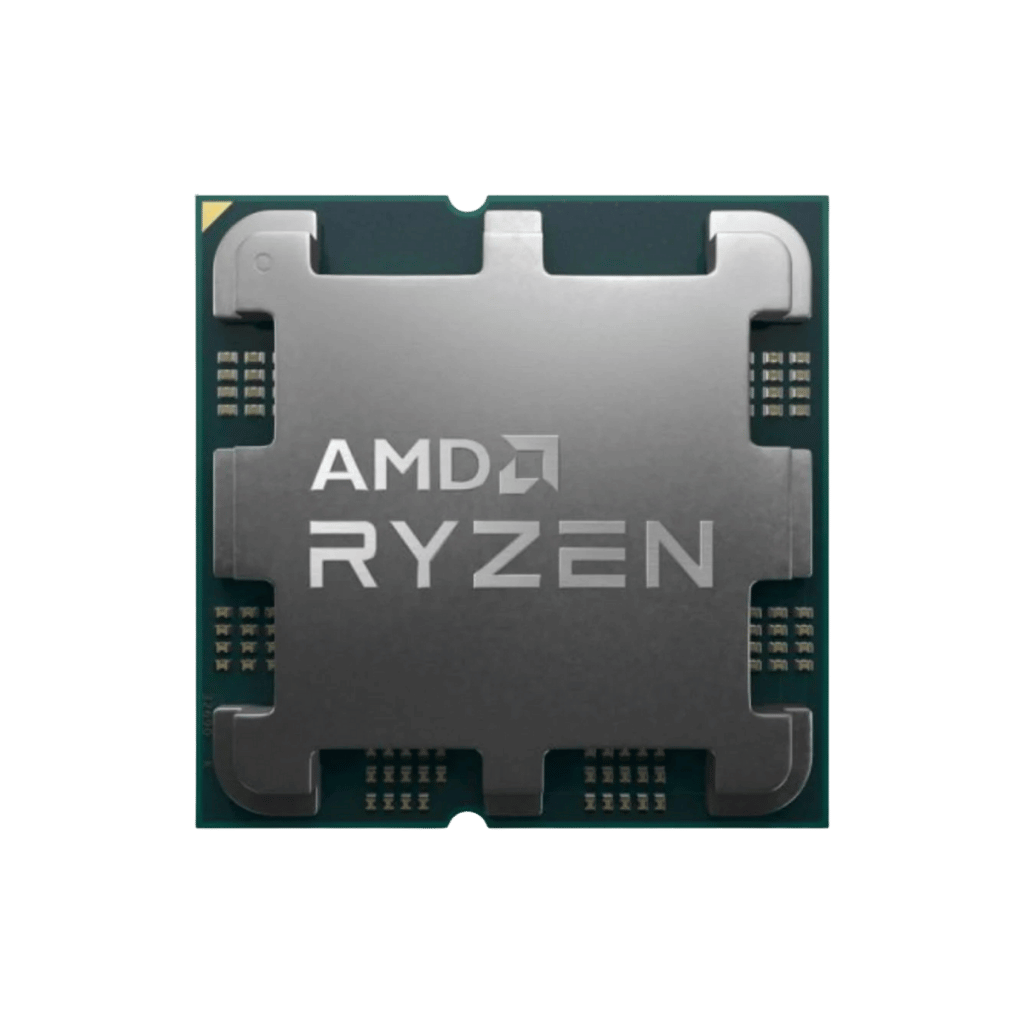

| Name | AMD Ryzen™ 5 9600X |
| Family | Ryzen |
| Series | Ryzen 9000 Series |
| Form Factor | Desktops, Tray Processor |
| Market Segment | Enthusiast Desktop |
| Architecture | Zen 5 |
| # of CPU Cores | 6 |
| # of Threads | 12 |
| Max Boost Clock | Up to 5.4 GHz |
| Base Clock | 3.9 GHz |
| L1 Cache | 480 KB |
| L2 Cache | 6 MB |
| L3 Cache | 32 MB |
| Default TDP | 65W |
| Process Technology | TSMC 4nm FinFET (CPU), TSMC 6nm FinFET (I/O) |
| Unlocked for Overclocking | Yes |
| AMD EXPO™ Memory Support | Yes |
| Socket | AM5 |
| Supported Chipsets | A620, X670E, X670, B650E, B650, X870E, X870 |
| Max Operating Temperature | 95°C |
| OS Support | Windows 10/11, RHEL, Ubuntu |
| PCI Express Version | PCIe 5.0 |
| Native Memory Support | DDR5 |
| Max Memory | 192 GB |
