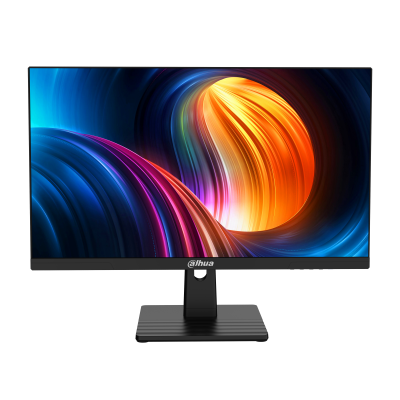

Dahua LM25 B211B (24.5 inch 120Hz 1080P IPS)
- Dahua LM25-B211B: 24.5-inch FHD commercial monitor with IPS panel and ELED backlight
- Full HD (1920 x 1080) resolution, 16:9 aspect ratio, and ultra-slim bezels (≥90% screen-to-body ratio)
- 120Hz refresh rate with rapid 1ms MPRT response time for smooth and blur-free visuals
- Wide color coverage: 85% NTSC (typ.), 16.7 million display colors, and 300 cd/m² brightness
- Ergonomic and durable: 178° wide viewing angle, adjustable incline, tough 3H anti-glare coating
- Certified for CE EMC, CE LVD, CE ERP for safety, reliability, and energy efficiency
- Versatile connectivity: 1x HDMI 2.0, 1x DisplayPort 1.4, 1x audio out; VESA 100x100 mm wall mount compatible
- Accessories included: Power adapter, base, HDMI cable, and user manual (QR code)
Product Specifications:
| Model | DHI-LM25-B211B |
| LCD Technology | IPS |
| Backlight | ELED |
| Screen Size | 24.5 inch |
| Aspect Ratio | 16:9 |
| Resolution | 1920 x 1080 (Full HD) |
| Viewing Size | 543.744 x 302.616 mm |
| Screen-to-Body Ratio | ≥90% |
| Viewing Angle | 178° (H) / 178° (V) |
| Display Mode | Horizontal |
| Pixel Pitch (H x V) | 0.2832 x 0.2802 mm |
| Pixels Per Inch | 89.91 |
| Refresh Rate | 120 Hz |
| Display Colors | 16.7 million |
| Color Gamut | 85% NTSC (typical) |
| Brightness | 300 cd/m² (typical) |
| Contrast Ratio | 1,500:1 |
| Response Time | MPRT 1 ms |
| Lifespan | 30,000 hours |
| Surface Treatment | Haze 25%, 3H (anti-glare) |
| Input Ports | 1x DP 1.4 (120Hz), 1x HDMI 2.0 (120Hz) |
| Output Ports | 1x Audio out |
| Power Supply | 12 VDC, 2.5 A (external power adapter) |
| Power Consumption | 18W (basic), 22W (typical), 32W (max), <0.5W (standby) |
| Operating Temp/Humidity | 0°C to 40°C; 10%–85% RH (non-condensing) |
| Storage Temp/Humidity | –20°C to 60°C; 5%–90% RH (non-condensing) |
| Inclined Angle | -5° ±2° / +20° ±2° |
| Product Dimensions | 557.7 x 330.6 x 58.1 mm (W x H x D, without mount) |
| Package Size | 620 x 431 x 134 mm |
| Frame Width | U/L/R: 2.1 mm each, D: 19.6 mm |
| Net/Gross Weight | 2.9 kg / 3.9 kg |
| Casing Color | Black |
| Control Mode | Five-button panel |
| Status Indicator | Yes |
| VESA Mounting | 100 x 100 mm |
| Included Accessories | Power adapter, base, HDMI cable, user manual (QR code), legal & regulatory info |
