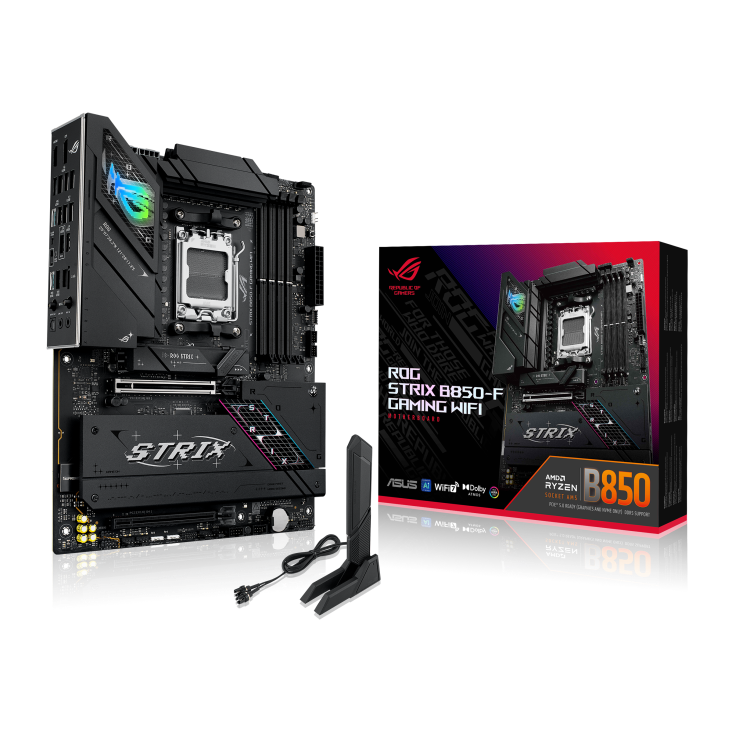

ASUS ROG STRIX B850-F GAMING WIFI (ATX Motherboard)
- Supports AMD Ryzen™ 9000, 8000, and 7000 series desktop CPUs (Socket AM5)
- AMD B850 chipset, up to 256GB DDR5 RAM (supports 8000+ MT/s OC, ECC/Non-ECC)
- PCIe 5.0 x16 slot, 4x M.2 slots, and 2x SATA 6Gb/s for flexible storage
- Built-in Wi-Fi 7, Intel 2.5Gb Ethernet, Bluetooth 5.4
- 12 rear and 7 front USB ports (including Type-C®), HDMI and DisplayPort
- SupremeFX ALC4080 7.1 channel sound, Aura Sync RGB, and Q-Design DIY features
- Compatible with Windows 11 OS
- ATX form factor (30.5 x 24.4 cm)
Product Specifications
| CPU | AMD Socket AM5, Ryzen™ 9000/8000/7000 Series |
| Chipset | AMD B850 |
| Memory | 4 x DDR5 DIMM (up to 256GB, 8000+ MT/s OC), ECC/Non-ECC, dual channel |
| Expansion | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4) shared with one M.2 |
| Storage | 4 x M.2 slots, 2 x SATA 6Gb/s |
| Networking | Intel® 2.5Gb Ethernet, Wi-Fi 7, Bluetooth 5.4 |
| Graphics Output | 1 x HDMI 2.1 (4K@60Hz), 1 x DisplayPort 1.4 (8K@30Hz) |
| USB (Rear) | 1x USB-C 20Gbps, 3x USB 10Gbps (2A, 1C), 4x USB 5Gbps, 4x USB 2.0 |
| USB (Front) | 1x USB-C 10Gbps, 1x USB 5Gbps header (2 ports), 2x USB 2.0 headers (4 ports) |
| Audio | SupremeFX ALC4080, 7.1 surround, Savitech AMP, optical S/PDIF |
| Form Factor | ATX (12 x 9.6 inches / 30.5 x 24.4 cm) |
| OS Support | Windows 11 |
| DIY & Cooling | Pre-mounted I/O, BIOS FlashBack™, Q-Latch, Q-LED, M.2 heatsink |
| RGB Lighting | Aura Sync, Addressable Gen 2 headers |
| Accessories | 2x SATA cables, WiFi Q-antenna, cable ties, M.2 latches/slides, stickers |
