Jonsbo

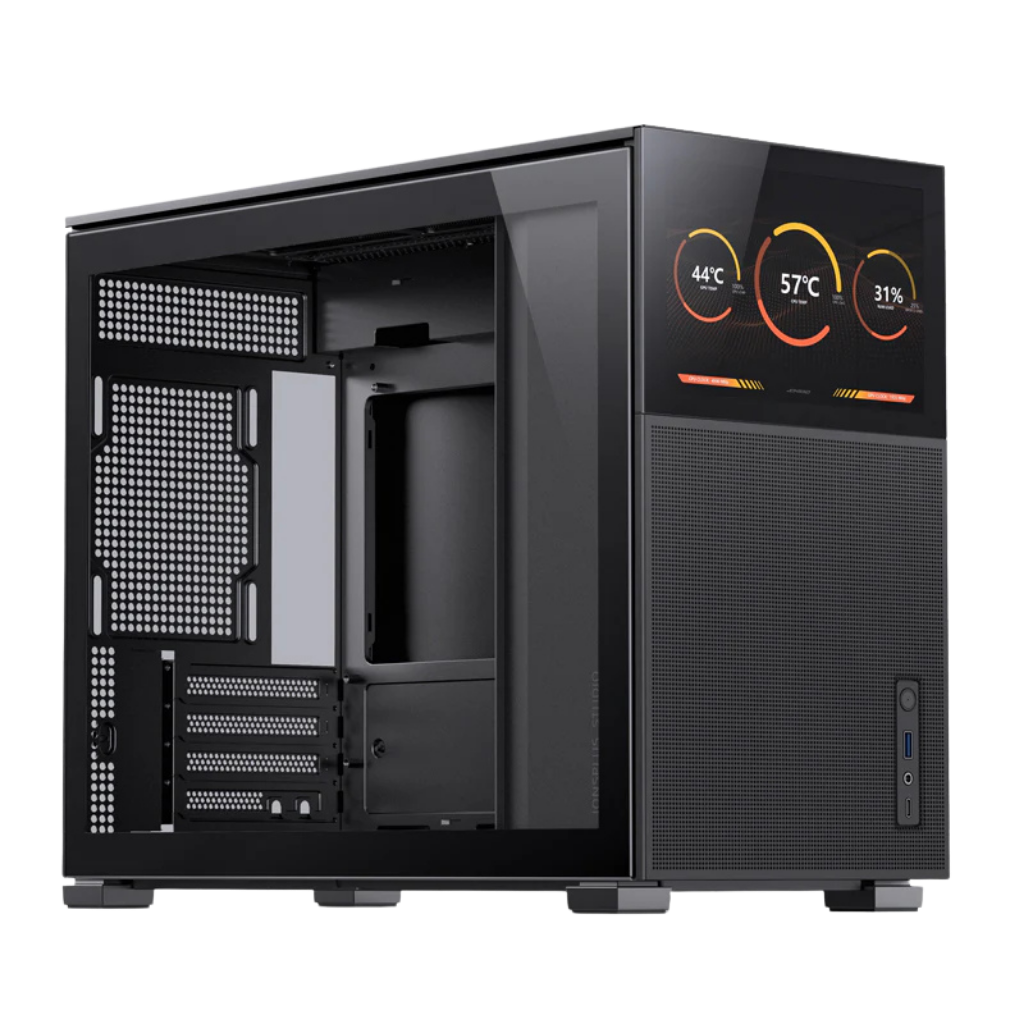

Jonsbo D31 Mesh Screen (Black)

BND 119.00

Hurry up! Stock running low!

Estimated delivery: Feb 01 - Feb 05

Product Information

D31 MESH SCREEN compact mATX/ITX case with integrated 8" color TFT‑LCD, ideal for system monitoring, gameplay overlays, or custom artwork.
High‑airflow mesh front design with a 31.3 L chassis that supports powerful cooling in a small footprint.
8" 1280 × 800 TFT‑LCD with 16.7M colors, 300 cd/m² brightness, 1000:1 contrast, Mini‑HDMI + Type‑C input, and 60 Hz refresh rate.
Supports ITX / DTX / Micro‑ATX motherboards, ATX power supply, and full‑length GPUs (330–400 mm) with CPU coolers up to 168 mm height.
Flexible storage with 2× 2.5" SSD + 1× 3.5" HDD and extensive fan/radiator support, including top and bottom 360 mm radiators for advanced liquid cooling.
Front I/O with USB 3.2 Gen 2 Type‑C, USB 3.0, and audio/mic combo for modern, high‑speed connectivity.
Built with 0.6 / 0.7 mm steel panels and 4 PCI expansion slots, balancing rigidity, expandability, and airflow‑focused mesh styling in a compact form factor.

Product Summary

The D31 MESH SCREEN is a 31.3 L compact mATX/ITX case with a high‑airflow mesh front and integrated 8" 1280 × 800 TFT‑LCD. It supports full‑length GPUs, 168 mm CPU coolers, ATX PSUs, and dual 360 mm radiators (top and bottom). With USB 3.2 Gen 2 Type‑C front I/O, it’s ideal for powerful, space‑efficient builds.

Quantity:

BND 119.00

104991 / 3 Months...

View details

Product Specifications

Warranty Information

Reviews

Model	D31 MESH SCREEN (Black / White)
Case Type	Compact mATX / DTX / ITX tower with mesh front and integrated screen
Screen Dimensions	24.6 mm (W) × 131.7 mm (H) × 205.3 mm (L)
Screen Size	8" Color TFT‑LCD
Screen Resolution	1280 × 800
Screen Colors	16.7M
Screen Response Time	30 ms (Typ.)
Screen Brightness	300 cd/m² (Typ.)
Screen Contrast Ratio	1000:1 (Typ.)
Screen I/O	1 × Mini‑HDMI (video signal), 1 × Type‑C
Screen Refresh Rate	Up to 60 Hz
Screen Working Temperature	0–50 ℃
Internal Volume	31.3 L
Chassis Dimensions	205 mm (W) × 347.5 mm (H) × 440 mm (D) (depth excludes PCI brackets, height excludes stand)
Overall Dimensions	205 mm (W) × 363 mm (H) × 452 mm (D) (including external parts and stand)
Material	0.6 mm + 0.7 mm steel panel
Drive Bays	2 × 2.5" SSD, 1 × 3.5" HDD
Motherboard Support	ITX / DTX / Micro‑ATX
PCI Expansion Slots	4
Front I/O Ports	1 × USB 3.2 Gen 2 Type‑C, 1 × USB 3.0, 1 × Audio & Mic combo
Power Supply Support	ATX
CPU Cooler Clearance	Up to 168 mm
GPU Length Support	Approx. 330–400 mm
Fan Mounts – Top	3 × 120 mm or 2 × 140 mm
Fan Mounts – Rear	1 × 120 mm
Fan Mounts – Bottom	3 × 120 mm or 2 × 140 mm
Fan Mounts – Front	1 × 120 mm
Radiator Support – Top	1 × 240 / 280 / 360 mm
Radiator Support – Rear	1 × 120 mm
Radiator Support – Bottom	1 × 240 / 360 mm
Net Weight	6.4 kg
