MSI

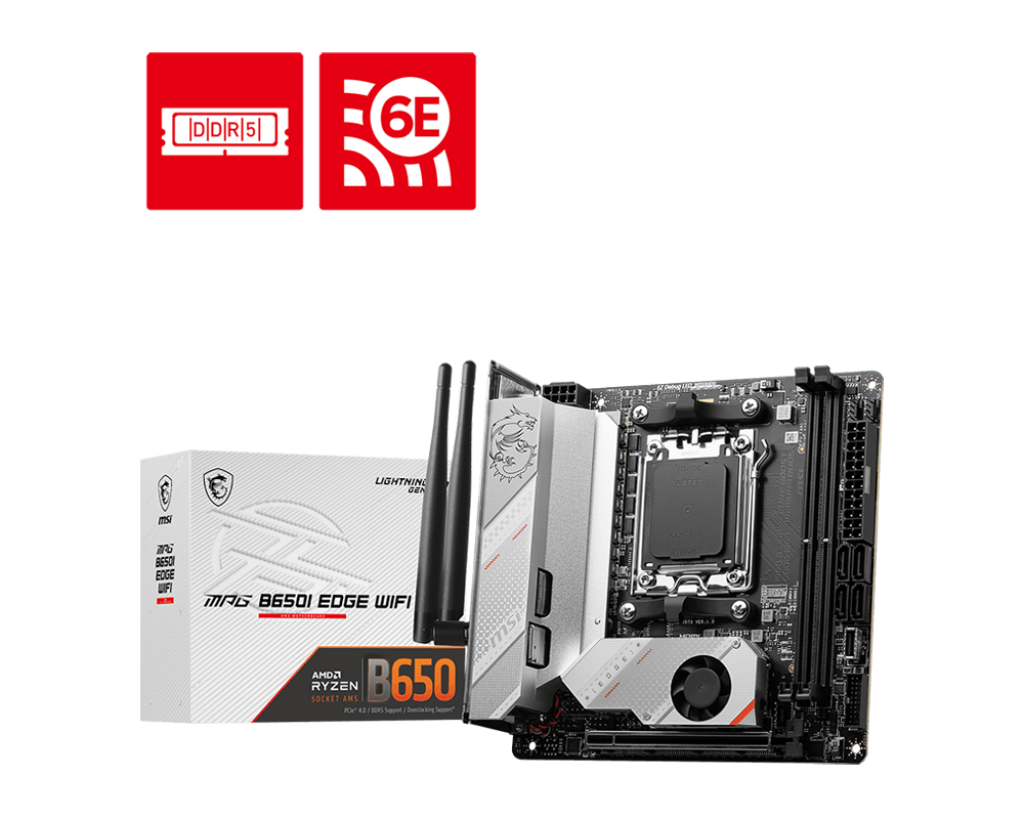

MSI B650I Edge Wifi

BND 339.00

Hurry up! Stock running low!

Estimated delivery: Oct 27 - Oct 29

Product Information

Robust Power Design: Features a Direct 8+2+1 VRM power design with Core Boost and Memory Boost for stable and high-performance operation.
Advanced Thermal Solutions: Equipped with an Extended Heatsink, 7W/mK MOSFET thermal pads, and M.2 Shield Frozr for effective cooling under heavy loads.
High-Quality PCB: A 10-layer PCB with 2oz thickened copper and server-grade materials ensures durability and signal integrity.
Cutting-Edge Connectivity: Includes 2.5G LAN and AMD Wi-Fi 6E for fast and stable wired and wireless networking.
Lightning-Fast Storage and Expansion: Supports PCIe 4.0 slots, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2x2 for rapid data transfer and peripheral connectivity.
DIY-Friendly Features: Simplifies PC building with a Flash BIOS Button, Pre-installed I/O Shield, and Steel Armor.
Immersive Audio: AUDIO BOOST 5 provides studio-grade sound quality for an enhanced gaming and multimedia experience.

Product Summary

The MPG B650I EDGE WIFI is a Mini-ITX motherboard designed for AMD Ryzen™ 8000/7000 Series processors, featuring DDR5 memory support up to 7200+MHz, a robust 8+2+1 VRM power design, and comprehensive thermal solutions. It offers 2.5G LAN, Wi-Fi 6E, PCIe 4.0, and M.2 Gen 4 for rapid connectivity and storage, all within a DIY-friendly design.

Quantity:

BND 339.00

108312 / 1 Year W...

View details

Product Specifications

Warranty Information

CPU Support	AMD Ryzen™ 8000/ 7000 Series Desktop Processors, Socket AM5
Memory	2x DDR5, Max 96GB, 7200+(OC)/.../4800(JEDEC) MHz, Dual-Channel, non-ECC, un-buffered, AMD EXPO™
Onboard Graphics	1x HDMI™ 2.1 FRL, 4K 120Hz (CPU dependent)
Expansion Slot	1x PCI-E 4.0 x16 (from CPU)
Storage	2x M.2 (PCIe 4.0 x4), 4x SATA 6G
RAID Support	RAID 0, 1, 10 for SATA; RAID 0, 1 for M.2 NVMe
USB Ports	Front: 2x USB 2.0, 2x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2 Type C; Rear: 2x USB 3.2 Gen1 Type A, 3x USB 3.2 Gen2 Type A, 1x USB 3.2 Gen2x2 Type C
LAN	Realtek® RTL8125BG 2.5Gbps LAN
Wireless / Bluetooth	AMD Wi-Fi 6E, Supports MU-MIMO TX/RX, 802.11 a/b/g/n/ac/ax, Bluetooth® 5.3
Audio	Realtek® ALC4080 Codec, 7.1-Channel USB High Performance Audio, 32-Bit/384 kHz playback
Internal I/O	ATX_PWR, CPU_PWR, CPU Fan, Pump Fan, System Fan, JFP, JCI, JAUD, JARGB_V2, TPM pin header, 2x USB 2.0, 2x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2 Type C
LED Feature	4x EZ Debug LED
Back Panel Ports	Clear CMOS Button, USB 3.2 Gen 1 5Gbps (Type-A), 2.5G LAN, Wireless / Bluetooth, Audio Connectors, Flash BIOS Button, HDMI™, USB 3.2 Gen 2 10Gbps (Type-A), USB 3.2 Gen 2x2 20Gbps (Type-C)
Operating System	Windows® 11 64-bit, Windows® 10 64-bit
PCB Info	Mini-ITX, 170mmx170mm

Product Warranty: 1 Year

Warranty covers defects or dead-on-arrival items with original receipt and packaging. It excludes damage from misuse, power issues, unauthorized repairs, and software/data.
To claim, contact us within the warranty period with all accessories and packaging. Warranty is non-transferable and for the original buyer only.
For questions, contact us or check our warranty information.
