NZXT

NZXT H5 Flow RGB (Black - 2024)

BND 169.00

Hurry up! Stock running low!

Estimated delivery: Oct 27 - Oct 29

Product Information

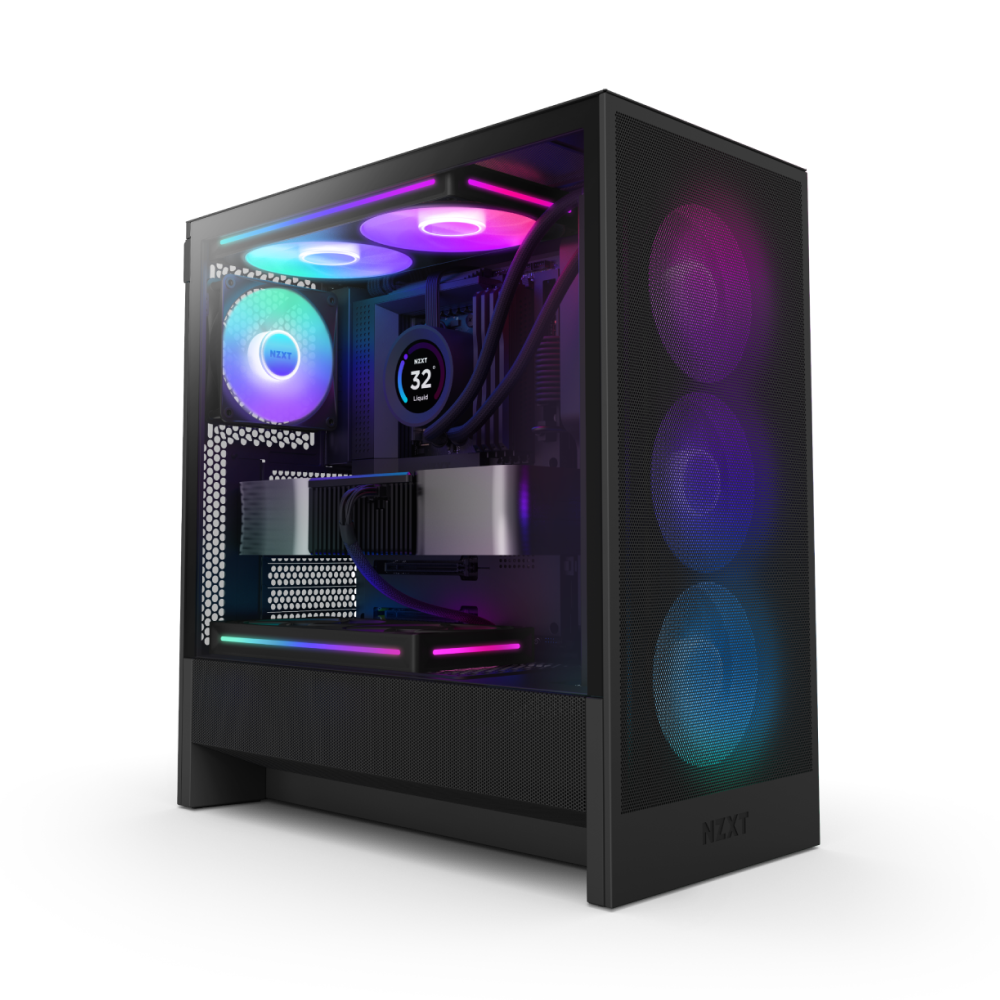

NZXT H5 Flow RGB (2024)

The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
Equipped with a front-mounted F360 RGB Core (CV) single-frame fan and rear-mounted F120Q (CV) fan for strong out-of-the-box cooling and lighting.
Effortlessly route and conceal cables using the wide channels, hooks, and straps.

Product Summary

The NZXT H5 Flow RGB (2024) features a perforated PSU shroud for optimal airflow, supports large radiators for liquid cooling, and has ultra-fine mesh panels for dust filtration. It includes front and rear RGB fans for powerful cooling and easy cable management for a clean build.

Quantity:

BND 169.00

111079 / 6 Months...

View details

Product Specifications

Warranty Information

The H5 Flow RGB boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.

The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
Equipped with a front-mounted F360 RGB Core (CV) single-frame fan and rear-mounted F120Q (CV) fan for strong out-of-the-box cooling and lighting.
Effortlessly route and conceal cables using the wide channels, hooks, and straps.

Category	Specification
Motherboard Support	E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
Enclosure Type	Mid-Tower
Case Material	SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)
Dimensions	Height (with feet): 465 mm / 18.31 in Width: 225 mm / 8.86 in Depth: 430 mm / 16.93 in Weight: 7.63 kg / 16.82 lb
CPU Cooler Height	Up to 170 mm
GPU Length	Up to 410 mm
PSU Length	Up to 200 mm
Cable Management	Up to 28.7 mm
Top Radiator	Up to 240 mm (280 mm with low-profile memory)
Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness	Up to 55 mm
Front Ports	USB 3.2 Type-A: 1 USB 3.2 Gen 2x2 Type-C (20 Gbps): 1 Headset Audio Jack: 1
Expansion Slots	Standard: 7 Vertical: 0
Drive Bays	2.5": 2 3.5": 1
Fan Support	Front: 3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included) Top: 2 x 120 mm / 2 x 140 mm Bottom: 2 x 120 mm Rear: 1 x 120 mm (1 x F120Q Case Version included)
Radiator Support	Front: Up to 360 mm Top: Up to 240 mm (280 mm with low-profile memory only)
Fan Specs (F360 RGB Core)	Speed: 1,700 ± 200 RPM Airflow: 50.1 CFM Static Pressure: 1.27 mm-H₂O Noise: 23.3 dBA Fan Connector: 3-pin
Fan Specs (F120Q)	Speed: 1,350 ± 150 RPM Airflow: 60.2 CFM Static Pressure: 1.05 mm-H₂O Noise: 24.1 dBA Fan Connector: 3-pin
General	Model Number: CC-H52FW-R1 (White) / CC-H52FB-R1 (Black) UPC: 810074845922 (White) / 810074845939 (Black) EAN: 5056547205861 (White) / 5056547205878 (Black)

Product Warranty: 3 Months (Case Fans)

Warranty covers defects or dead-on-arrival items with original receipt and packaging. It excludes damage from misuse, power issues, unauthorized repairs, and software/data.
To claim, contact us within the warranty period with all accessories and packaging. Warranty is non-transferable and for the original buyer only.
For questions, contact us or check our warranty information.
