NZXT

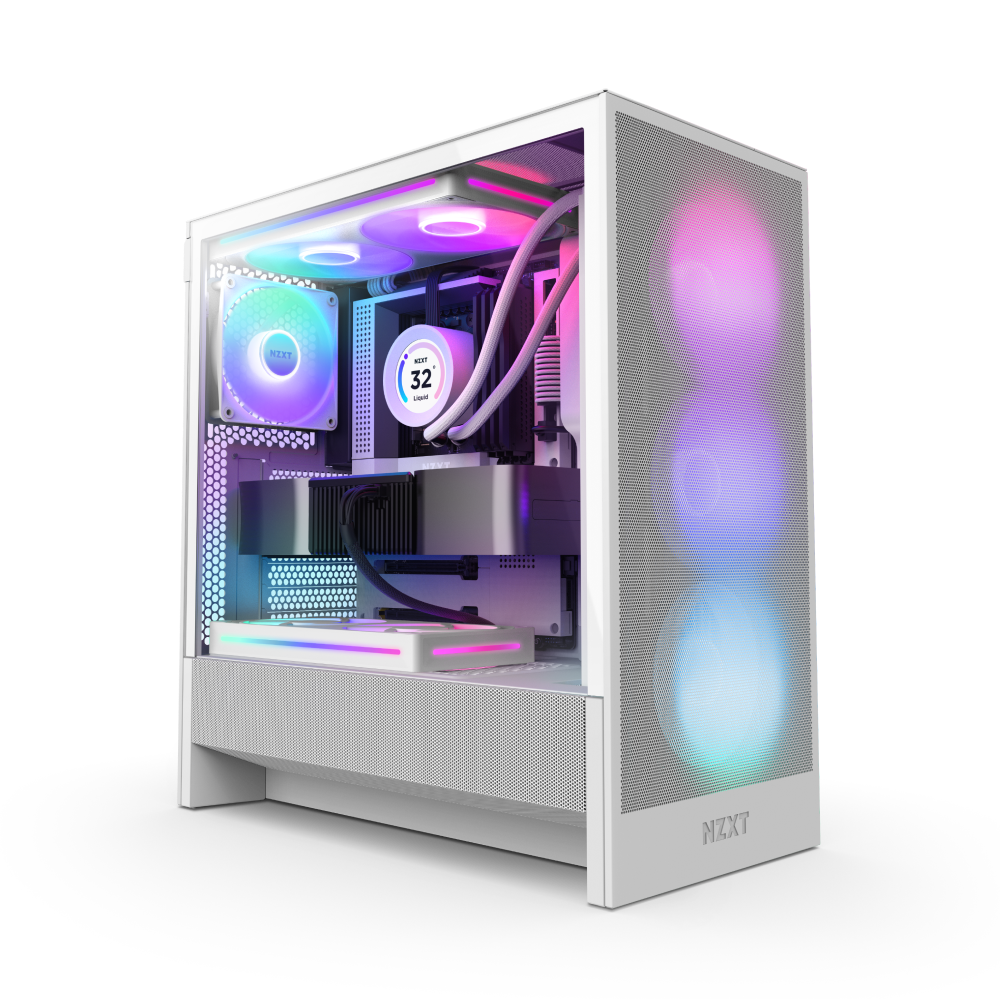

NZXT H5 Flow RGB (White - 2024)

BND 169.00

Hurry up! Stock running low!

Estimated delivery: Oct 27 - Oct 29
Product Information

NZXT H5 Flow RGB (2024)

  • The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
  • Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
  • Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
  • Equipped with a front-mounted F360 RGB Core (CV) single-frame fan and rear-mounted F120Q (CV) fan for strong out-of-the-box cooling and lighting.
  • Effortlessly route and conceal cables using the wide channels, hooks, and straps.
Product Summary

The NZXT H5 Flow RGB (2024) features a perforated PSU shroud for optimal airflow, supports large radiators for liquid cooling, and has ultra-fine mesh panels for dust filtration. It includes front and rear RGB fans for powerful cooling and easy cable management for a clean build.
NZXT H5 Flow RGB (White - 2024)
BND 169.00
111078 / 6 Months...
Pairs well with
Related categories
View details

NZXT H5 Flow RGB (2024)

  • The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
  • Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
  • Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
  • Equipped with a front-mounted F360 RGB Core (CV) single-frame fan and rear-mounted F120Q (CV) fan for strong out-of-the-box cooling and lighting.
  • Effortlessly route and conceal cables using the wide channels, hooks, and straps.
Category Specification
Motherboard Support E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
Enclosure Type Mid-Tower
Case Material SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)
Dimensions Height (with feet): 465 mm / 18.31 in
Width: 225 mm / 8.86 in
Depth: 430 mm / 16.93 in
Weight: 7.63 kg / 16.82 lb
CPU Cooler Height Up to 170 mm
GPU Length Up to 410 mm
PSU Length Up to 200 mm
Cable Management Up to 28.7 mm
Top Radiator Up to 240 mm (280 mm with low-profile memory)
Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness Up to 55 mm
Front Ports USB 3.2 Type-A: 1
USB 3.2 Gen 2x2 Type-C (20 Gbps): 1
Headset Audio Jack: 1
Expansion Slots Standard: 7
Vertical: 0
Drive Bays 2.5": 2
3.5": 1
Fan Support Front: 3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included)
Top: 2 x 120 mm / 2 x 140 mm
Bottom: 2 x 120 mm
Rear: 1 x 120 mm (1 x F120Q Case Version included)
Radiator Support Front: Up to 360 mm
Top: Up to 240 mm (280 mm with low-profile memory only)
Fan Specs (F360 RGB Core) Speed: 1,700 ± 200 RPM
Airflow: 50.1 CFM
Static Pressure: 1.27 mm-H₂O
Noise: 23.3 dBA
Fan Connector: 3-pin
Fan Specs (F120Q) Speed: 1,350 ± 150 RPM
Airflow: 60.2 CFM
Static Pressure: 1.05 mm-H₂O
Noise: 24.1 dBA
Fan Connector: 3-pin
General Model Number: CC-H52FW-R1 (White) / CC-H52FB-R1 (Black)
UPC: 810074845922 (White) / 810074845939 (Black)
EAN: 5056547205861 (White) / 5056547205878 (Black)
