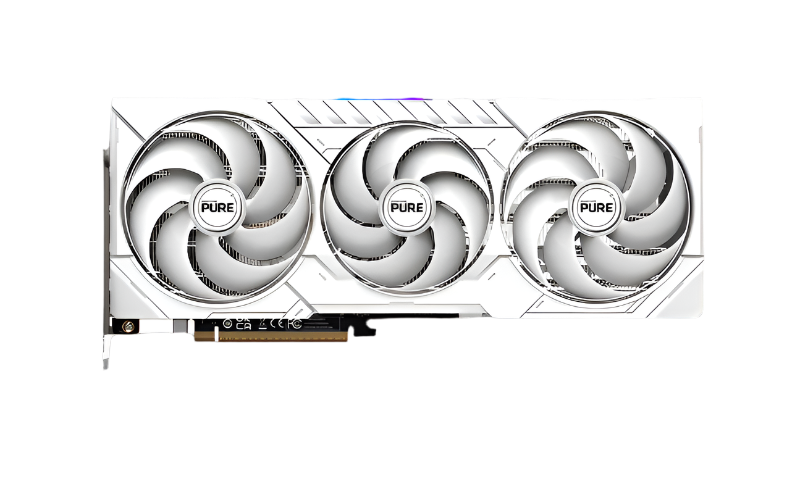

Sapphire Pure RX 9070XT Gaming OC 16GB
- Next-gen graphics: AMD Radeon™ RX 9070 XT with advanced RDNA™ 4 architecture
- High-performance: Boost clock up to 3010 MHz, Game clock up to 2460 MHz
- 16GB GDDR6 memory on 256-bit bus, running at an effective 20 Gbps
- 4096 stream processors, 64 compute units, 64MB Infinity Cache, 64 ray accelerators, 128 AI accelerators
- Modern PCIe Gen 5 x16 interface
- Powerful and efficient Tri-X cooling system with optimized composite heatpipes, dual-ball bearing fans, and metal backplate
- 4 display outputs: 2x HDMI® (up to 7680×4320), 2x DisplayPort™ 2.1a (up to 7680×4320)
- Advanced AMD features: HYPR-RX with AFMF 2, FidelityFX™ Super Resolution 4, Radiance Display™ Engine, Anti-Lag 2, AV1 Encode/Decode, DirectX® 12 Ultimate, FreeSync™, Noise Suppression, Adrenalin Edition™ software
- Robust, enthusiast-ready design: 3-slot ATX, 14-phase digital power, fuse protection, L-Shape Support Bracket, ARGB SAPPHIRE Logo, RGB sync
Product Specifications
| GPU | AMD Radeon™ RX 9070 XT |
| Architecture | AMD RDNA™ 4 |
| Compute Units | 64 (3rd Gen RT + 2nd Gen AI Accelerators) |
| Stream Processors | 4096 |
| Ray Accelerators | 64 |
| AI Accelerators | 128 |
| Boost Clock | Up to 3010 MHz |
| Game Clock | Up to 2460 MHz |
| Memory | 16GB GDDR6, 256-bit, 20 Gbps |
| Infinity Cache | 64MB |
| Max Displays | 4 |
| Max Resolution | 7680×4320 (HDMI/DP 2.1a) |
| Outputs | 2x HDMI®, 2x DisplayPort™ 2.1a |
| Interface | PCIe Gen 5 x16 |
| Form Factor | 3-slot, ATX |
| Dimensions (mm) | 320(L) x 120.25(W) x 61.6(H) |
| Typical Power | 317W |
| Recommended PSU | 750W+ (2x 8-pin connectors) |
| OS Support | Windows 10/11 (64-bit), Linux |
| BIOS Support | UEFI |
| Cooling | Tri-X with AeroCurve Fan, Composite Heatpipes |
| Additional Features | ARGB, TriXX Utility, Metal Backplate, Bracket |
| Accessories | L-Shape Support Bracket, 3-pin 5V ARGB Cable |
