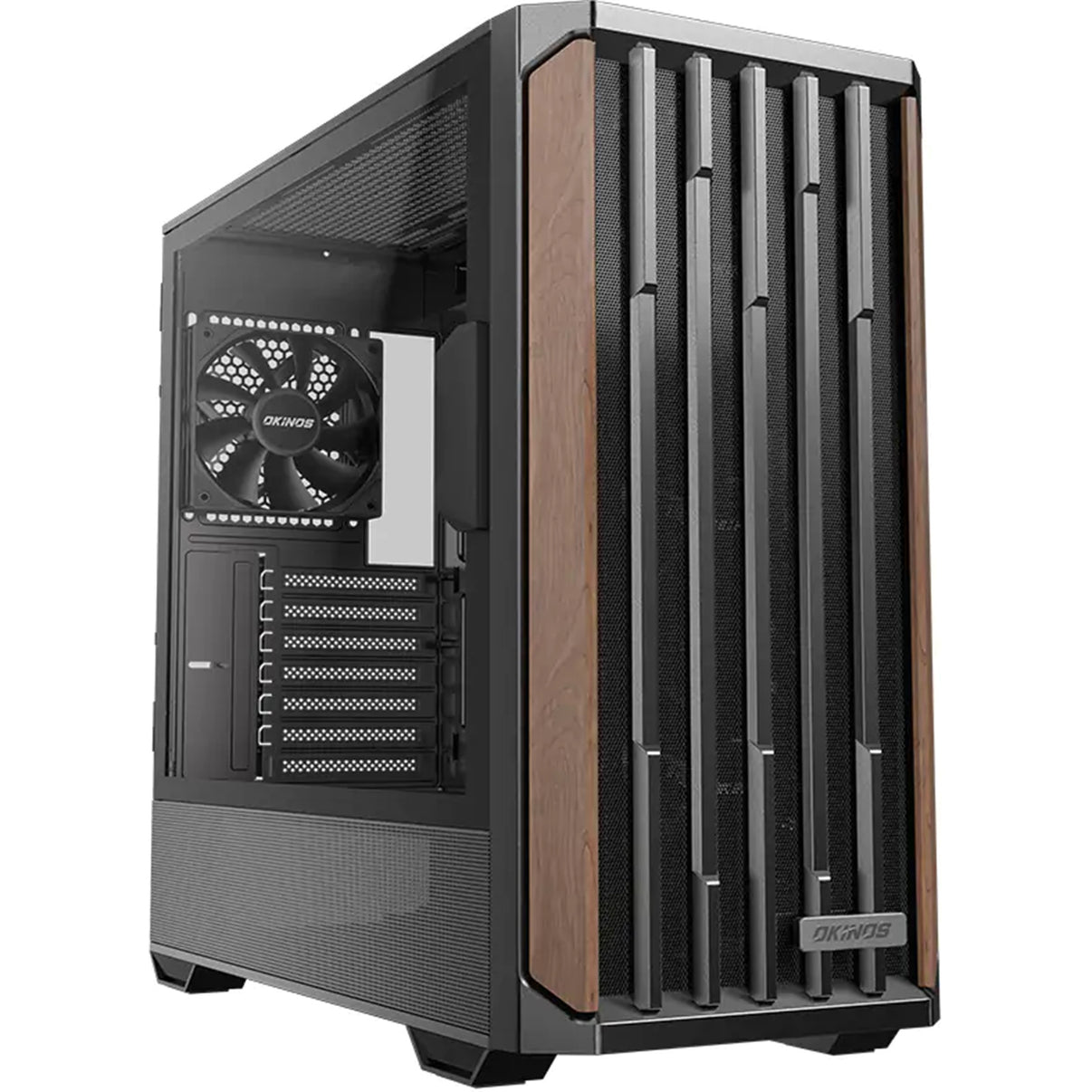

Okinos Cypress 7 ATX
- Genuine walnut wood exterior fusion with a high-performance chassis for a refined, modern workspace aesthetic.
- Pre-installed with 4 × PWM fans, total airflow up to 200 CFM for strong and efficient cooling.
- Includes a Type-C 3.2 Gen 2 (10Gbps) port, two USB 3.0 ports, audio jacks, power, and reset switches on the front panel.
- Supports up to 5 SSDs; side mounting 2 SSDs may restrict fan options (best for max storage).
- Toolless quick access design simplifies interior maintenance and upgrades.
- Flexible GPU compatibility: up to 415 mm (front fan), 390 mm (rear fan); side AIO up to 280 mm (note: installing a 240mm side AIO may block GPUs wider than 280mm).
- Multiple cooling options: supports top water cooling (up to 360mm rad), side (up to 240mm), air cooling at the rear with enhanced airflow, and up to 2x120mm fans at the bottom.
- Expansion: 7 slots, only supports horizontal GPU installation (no vertical GPU support).
| Dimensions | 476mm x 210mm x 486mm |
| Motherboard Support | ATX, M-ATX, ITX |
| Fans Included | 4 x PWM fans |
| Controller | - |
| Type-C Port | Yes, Type-C 3.2 Gen 2 |
| Radiator Support | Top: up to 360mm, Side: up to 240mm |
| Fan Support (Top & Side) | Top: 3x120mm / 2x140mm; Side: 2x120mm |
| Fan Support (Bottom) | 2x120mm |
| Fan Support (Rear) | 1x120mm |
| Max GPU Length | 280mm – 415mm (based on fan/GPU config) |
| Max PSU Length | 240mm |
| Expansion Slots | 7 |
| Storage | Up to 5 SSDs (limitations for side fan mounts) |
