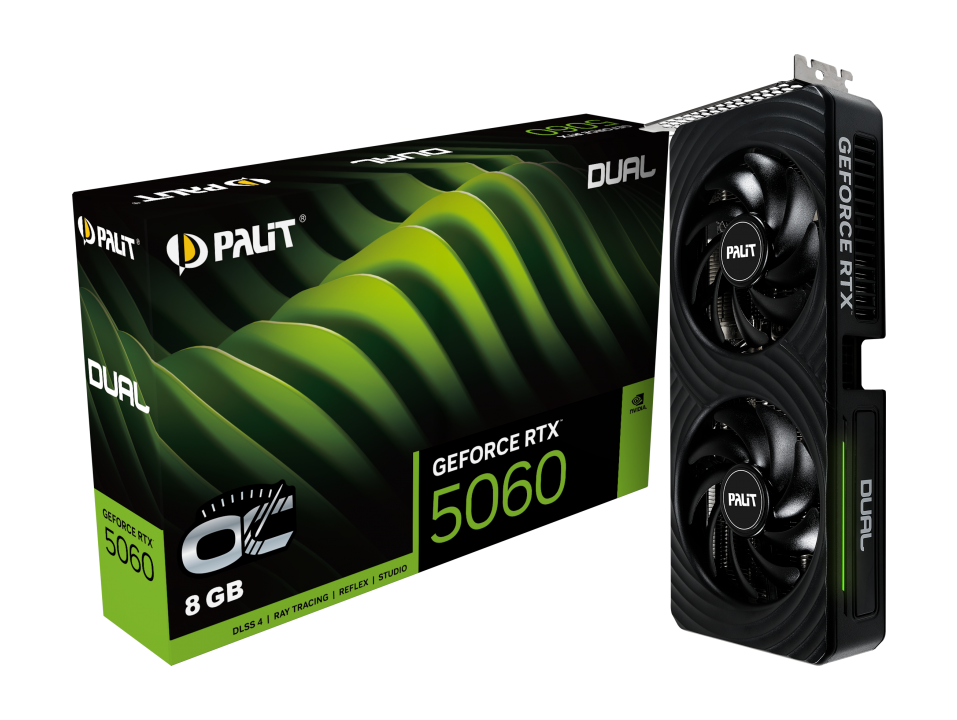

Palit RTX 5060 Dual OC 8GB
- Classic, dual-fan cooling with twin 95mm fans for quiet and efficient operation
- Sleek black shroud with subtle RGB lighting for a modern look
- Compact 2-slot design for small form factor PC builds
- Powerful NVIDIA Blackwell architecture with 4th Gen Ray Tracing, 5th Gen Tensor Cores, and advanced AI features
- Palit Maker support for easy shroud customization—warranty safe
- Reinforced backplate enhances durability
- PCIe 5.0, HDMI 2.1b, and triple DP2.1b output support up to 4K 480Hz or 8K 120Hz displays
| Memory Size | 8 GB GDDR7 |
| Memory Interface | 128 bits |
| Graphics Clock | 2280 MHz |
| Boost Clock | 2535 MHz |
| Memory Clock | 28 Gbps |
| CUDA Cores | 3840 |
| Memory Bandwidth | 448 GB/sec |
| DirectX Support | Microsoft DirectX® 12 Ultimate |
| OpenGL Version | 4.6 |
| Bus Interface | PCI-E 5.0 |
| Ports | HDMI 2.1b x1, DP2.1b x3 |
| Max Resolution | 4K@480Hz or 8K@120Hz with DSC |
| Board Size | 262.1 x 126.3 x 40.1 mm |
| Card Slot Height | 2 Slot |
| Graphics Card Power | 145W |
| Recommended PSU | 550W |
| Power Connectors | 1 x 8-pin |
| RGB Lighting | Yes |
| Maker Customization Support | Yes |
| Composite Heat Pipe & Copper Base | Yes |
| NVIDIA Blackwell Arch | Yes |
| Ray Tracing Cores | 4th Generation |
| Tensor Cores | 5th Generation |
| NVIDIA DLSS/Reflex/Studio Drivers | Yes |
| VR & Multi-Monitor | VR Ready, Supports up to 4 displays |
| Encoder/Decoder (NVENC/NVDEC/AV1) | 1x 9th Gen Encoder, 1x 6th Gen Decoder, AV1 Support |
Palit RTX 5060 Dual OC 8GB
