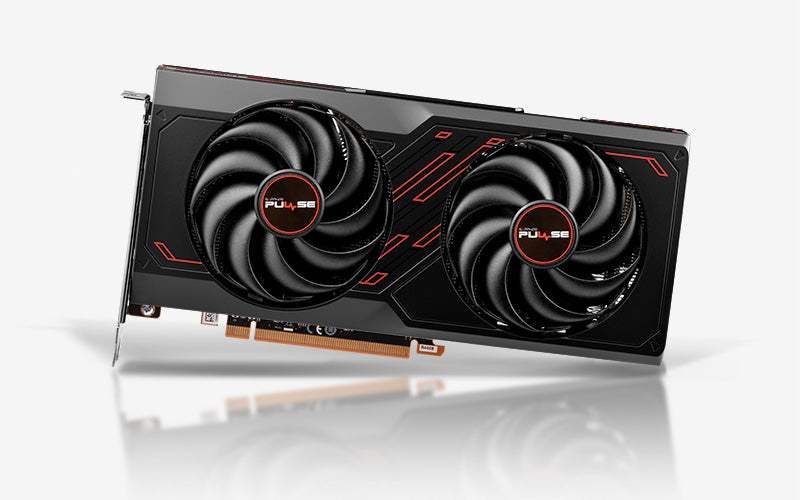

Sapphire Pulse RX 7600 8GB
- AMD Radeon™ RX 7600 GPU with RDNA™ 3 architecture for exceptional 1080p gaming
- 8GB GDDR6 (128-bit) memory, 18 Gbps effective for high frame rates and smooth performance
- Boost Clock up to 2755 MHz, Game Clock up to 2355 MHz, 32 Compute Units
- 2048 stream processors, 32MB Infinity Cache, and hardware ray tracing support
- Dual-X cooling system with metal backplate, optimized heatpipe & two dual-ball bearing fans
- Supports up to 4 displays: 1x HDMI, 3x DisplayPort, max resolution 7680×4320 (8K ready)
- DirectX 12 Ultimate, AMD Smart Access Memory, FreeSync™, and VR Ready Premium
- PCIe 4.0 x8 interface, UEFI BIOS, and robust Sapphire build features
- Recommended 550W PSU, single 8-pin connector, efficient 185W TDP
- Perfect for 1080p ultimate gaming, creators, and upgraders on modern Windows/Linux PCs
Product Specifications
| Model | SAPPHIRE PULSE Radeon™ RX 7600 8G GDDR6 |
| Graphics Engine | AMD Radeon™ RX 7600 |
| Architecture | AMD RDNA™ 3 |
| Engine Clock | Boost: Up to 2755 MHz Game: Up to 2355 MHz |
| Stream Processors | 2048 |
| Compute Units | 32 |
| Ray Accelerators | 32 |
| Infinity Cache | 32MB |
| Video Memory | 8GB GDDR6, 128-bit |
| Memory Clock | 18 Gbps Effective |
| Displays Supported | Max 4 |
| Max Resolution | 7680×4320 (HDMI & DP) |
| Display Outputs | 1 x HDMI™, 3 x DisplayPort 1.4 |
| PCIe Interface | PCI-Express 4.0 x8 |
| BIOS Support | UEFI |
| Game Index | 1080p Ultimate |
| Cooler | Dual-X (2 fans), optimized composite heatpipe, two-ball bearing fans |
| Backplate | Metal |
| Special Features | Fuse protection, Intelligent Fan Control, Precision Fan Control, TriXX Boost, Smart Access Memory, FreeSync™, Infinity Cache, VR Ready Premium, Anti-Lag, Radeon Image Sharpening, Adrenalin Software |
| Form Factor | 2-slot ATX (240 x 107.1 x 44.07 mm) |
| Power Consumption | 185W |
| Recommended PSU | Minimum 550W |
| Power Connector | 1 x 8-pin |
| System Requirements | PCIe x16 slot, minimum 8GB system memory (16GB recommended), Windows 10/11 or Linux (64-bit) |
| Operating Systems | Windows® 10/11 (64-bit), Linux® (64-bit) |
