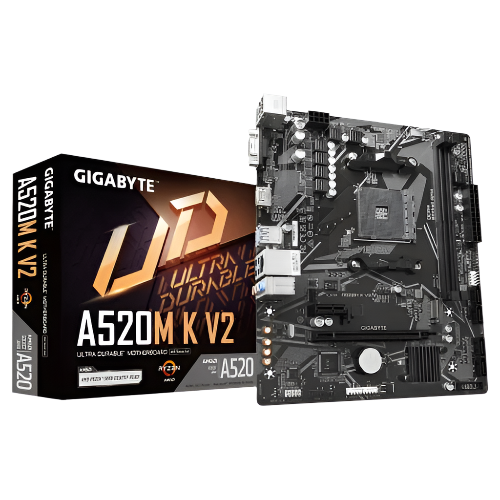

Gigabyte A520M K V2
- Supports AMD Ryzen™ 5000, 4000 G-Series, 3000, and 3000 G-Series processors (Socket AM4)
- Dual Channel DDR4 (ECC/Non-ECC), up to 64GB, 5100+ MHz (OC)
- PCIe Gen3 x4 M.2 slot (NVMe & SATA support)
- Realtek 1GbE LAN with bandwidth management
- 8-channel HD Audio with high-quality capacitors
- Onboard HDMI & D-Sub for multi-display
- Smart Fan 5: multiple sensors, hybrid headers, Fan STOP
- Anti-Sulfur Resistor Design for durability
- GIGABYTE APP Center, @BIOS, EasyTune, Smart Backup options
Product Specifications
| Chipset | AMD A520 |
| CPU Support | AMD Ryzen™ 5000/4000/3000 (including G-Series), Socket AM4 |
| Memory | 2 x DDR4 UDIMM, 64GB max, 5100+ MHz (OC), ECC/Non-ECC, Dual Channel |
| Expansion | 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 |
| Storage | 1 x M.2 (PCIe 3.0 x4/x2, NVMe/SATA), 4 x SATA 6Gb/s, RAID 0/1/10 |
| Onboard Graphics | HDMI 2.1 (4K@60Hz), D-Sub (1920x1200), integrated AMD Radeon™ Graphics (APUs required) |
| Audio | Realtek HD Audio, 8-channel, high quality audio capacitors |
| LAN | Realtek 1GbE with bandwidth management |
| USB (Rear) | 4 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 |
| USB (Internal) | 2 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0/1.1 headers (4 ports) |
| Cooling | Smart Fan 5, voltage & temp sensors, hybrid fan headers with Fan STOP |
| Internal I/O | 1x 24-pin ATX, 1x 8-pin ATX 12V, M.2 socket, TPM header, fan/system/audio headers |
| Back Panel | HDMI, D-Sub, 4x USB3.2, 2x USB2.0, RJ-45, 3x audio jacks, PS/2, etc. |
| BIOS | 128 Mbit flash, UEFI AMI BIOS, Q-Flash |
| Software | GIGABYTE APP Center, @BIOS, EasyTune, Norton Security, LAN bandwidth management |
| Form Factor | Micro ATX, 23.3cm x 19.8cm |
| OS Support | Windows 11/10 64-bit |
