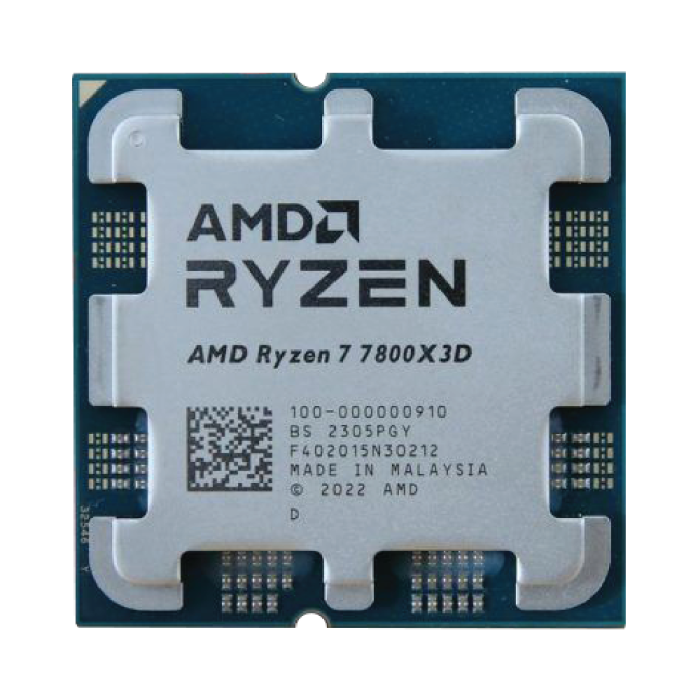

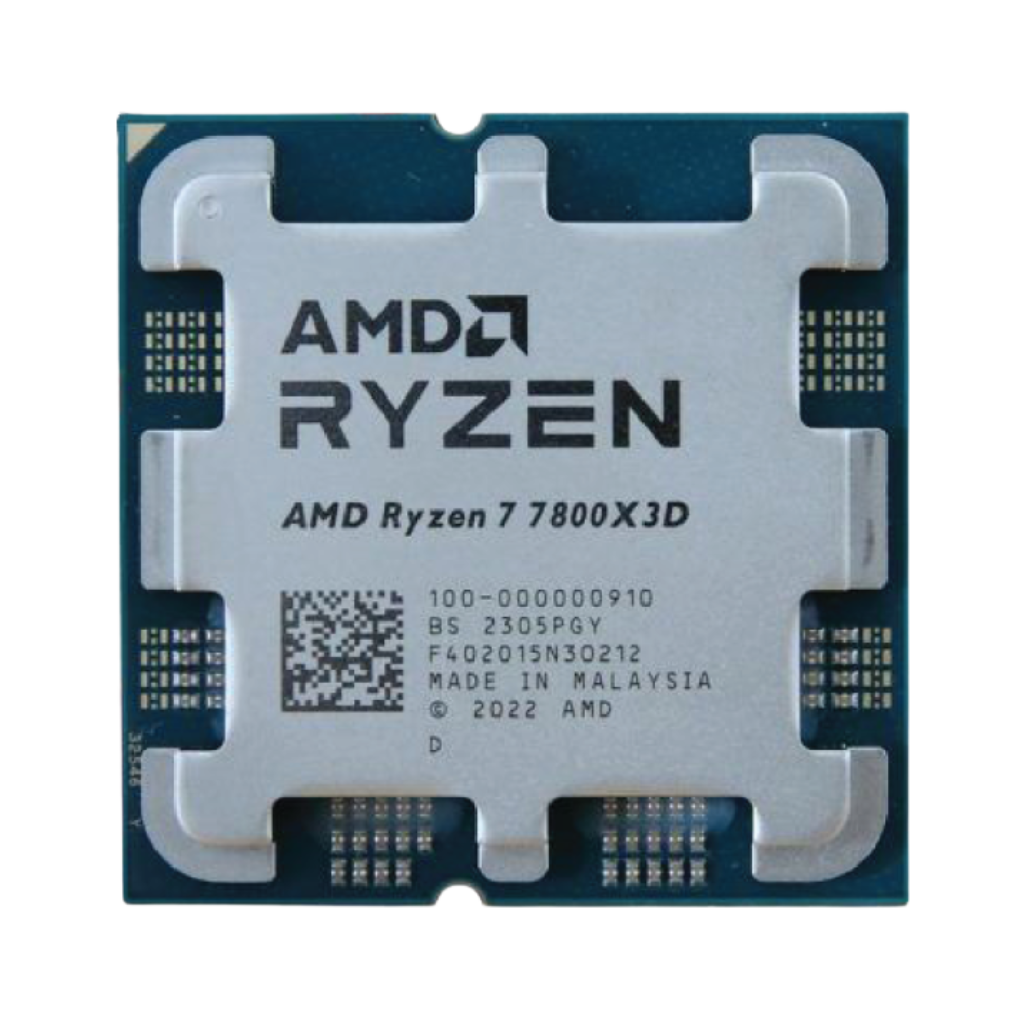

AMD Ryzen 7 7800X3D (Tray)
- 8 Cores / 16 Threads — For elite multitasking and gaming
- Massive 96MB L3 Cache — 3D V-Cache™ technology for game-changing latency and bandwidth
- Up to 5.0GHz Boost Clock — Exceptional single-core performance
- PCIe 5.0 & DDR5 Support — Next-gen IO and memory ready
- Integrated Graphics — AMD Radeon™ with 2 cores at 2200MHz
- Unlocked Overclocking — Full tuning support for enthusiasts
| Architecture | Zen 4 (TSMC 5nm FinFET) |
| CPU Socket | AM5 |
| Cores / Threads | 8 / 16 |
| Base / Max Boost Clock | 4.2GHz / Up to 5.0GHz |
| Cache | L1: 512KB, L2: 8MB, L3: 96MB |
| TDP | 120W |
| Max Temp (Tjmax) | 89°C |
| Memory Support | DDR5-5200 (2x1R, 2x2R) / DDR5-3600 (4x1R, 4x2R) |
| Memory Channels | 2 |
| ECC Support | Yes |
| PCIe Version | Gen 5.0 |
| Integrated Graphics | AMD Radeon™ (2 Cores, 2200MHz) |
| Unlocked for OC | Yes |
| Launch Date | June 4, 2023 |
| Thermal Solution | Not included, premium air cooler recommended |
| OS Support | Windows 11/10 64-Bit, RHEL, Ubuntu x86 |
| Virtualization & Extensions | HW virtualization, AVX, AVX2, AVX-512 |
| Support Tech | AMD EXPO™, Ryzen™ Technologies |
AMD Ryzen 7 7800X3D (Tray)
109488 / 1 Year WarrantyGet notified when this item is back in stock
