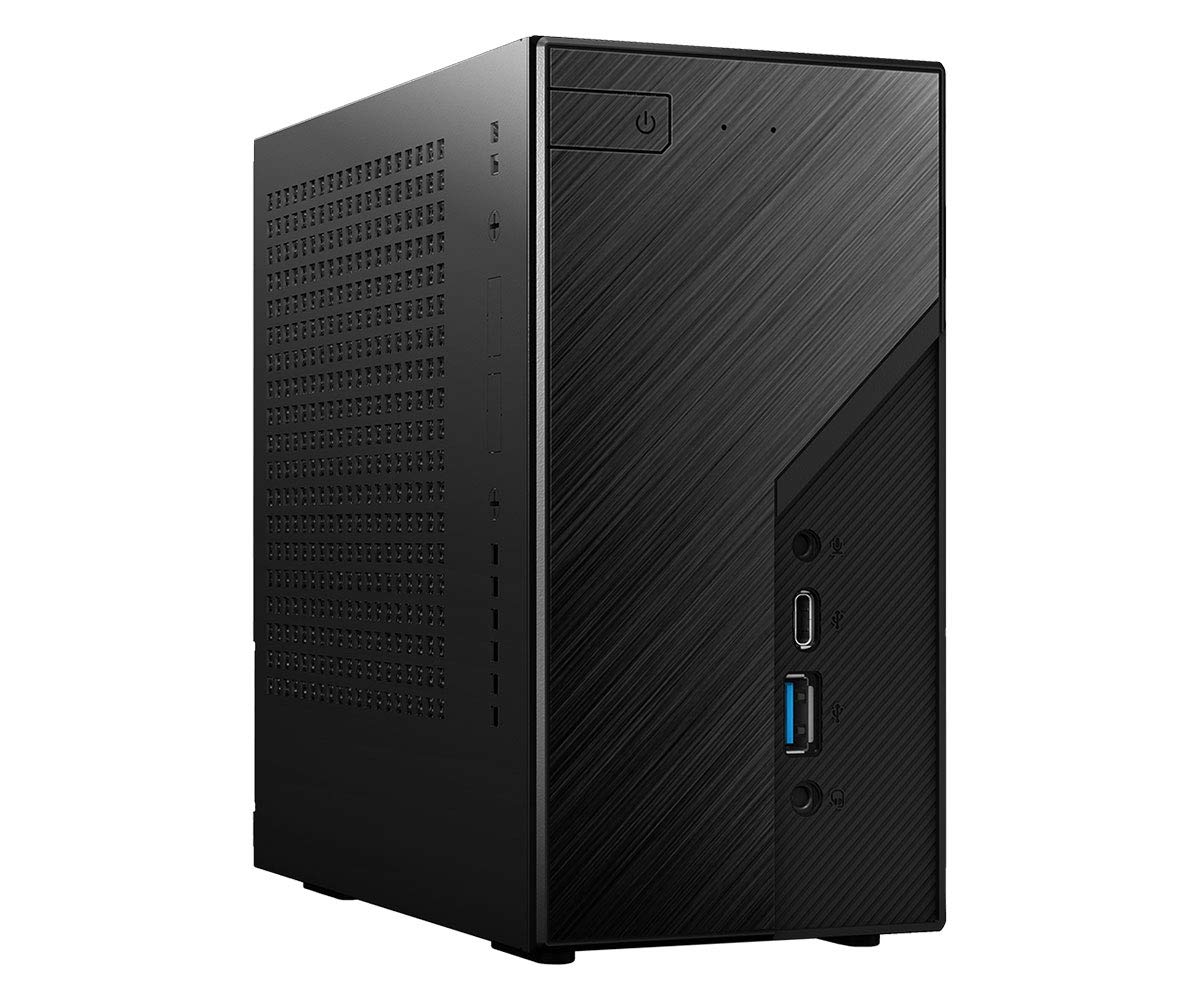

Asrock Deskmini X300W Barebone
- Compact barebone mini PC ready for AMD AM4 CPUs (Cezanne, Renoir, Picasso, Raven Ridge; up to 65W TDP)
- Overclocking support via the X300 chipset
- Dual SO-DIMM DDR4 slots (up to 64GB, 3200MHz)
- Dual Ultra M.2 NVMe SSD slots for blazing-fast storage (PCIe Gen3 x4/x2)
- Two 2.5" SATA 6Gbps bays with RAID 0/1 support
- Multiple modern display outputs: HDMI (4K@60Hz), DisplayPort, D-Sub
- Wi-Fi module slot (M.2 Key E 2230) for upgrade flexibility
- Gigabit LAN for reliable wired networking
- USB 3.2 Gen1 Type-C, Type-A (front/rear), and USB 2.0 for versatile connectivity
- Ultra-compact design: only 1.92 liters (155 x 155 x 80mm)
- Includes 120W/19V adapter, SATA/power cables, and mounting accessories
- Supports Microsoft Windows 10/11 64-bit
|
CPU Support
|
AMD AM4 (Cezanne, Renoir, Picasso, Raven Ridge, ≤65W)
|
|
Chipset
|
AMD X300
|
|
Memory
|
2 x DDR4 SO-DIMM (up to 64GB, 3200MHz)
|
|
Storage
|
2 x 2.5" SATA, 2 x M.2 NVMe PCIe Gen3 x4/x2
|
|
RAID Support
|
RAID 0/1 (for SATA drives)
|
|
Graphics Outputs
|
HDMI, DisplayPort, D-Sub
|
|
LAN
|
Gigabit (Realtek RTL8111H)
|
|
WiFi/Bluetooth
|
M.2 slot for Wi-Fi/BT module (Key E 2230)
|
|
Audio
|
Realtek ALC233 (front mic/phone jacks)
|
|
USB Ports
|
USB 3.2 Gen1 (Type-C & Type-A), USB 2.0
|
|
Dimensions
|
155 x 155 x 80mm (1.92L)
|
|
Power Supply
|
120W/19V adapter (included)
|
|
OS Support
|
Windows 10/11 64-bit
|
Asrock Deskmini X300W
104487 / 1 Year WarrantyGet notified when this item is back in stock
