Asrock

Asrock X870 Pro-A Wifi7

BND 309.00

Hurry up! Stock running low!

Estimated delivery: Aug 27 - Aug 31

Product Information

• Extreme Power Delivery: 16+2+1 power phase design with 80A Dr.MOS and durable 1000uF capacitors for stable CPU performance and higher energy efficiency under heavy loads.

• Next-Gen Storage & PCIe Speeds: Blazing PCIe 5.0 M.2 slot offering up to 128Gb/s bandwidth alongside a PCIe 5.0 x16 expansion slot for high-performance graphics.

• Ultra-Fast Wireless & Wired Network: Built-in Wi-Fi 7 with Multi-Link Operation (MLO) and Dragon 2.5Gbps LAN deliver low latency for 8K streaming, cloud gaming, and VR.

• High-Speed USB4 Connectivity: Dual rear USB4 Type-C ports transfer data at up to 40Gbps and deliver versatile device connectivity.

• Advanced Memory Support: Supports dual-channel DDR5 memory up to 8000+ MHz (OC) with pre-tested AMD EXPO and Intel XMP profiles for easy system tuning.

• User-Friendly Assembly: Includes Auto Driver Installer, BIOS Flashback button, and a Flexible Integrated I/O Shield for seamless setup.

Product Summary

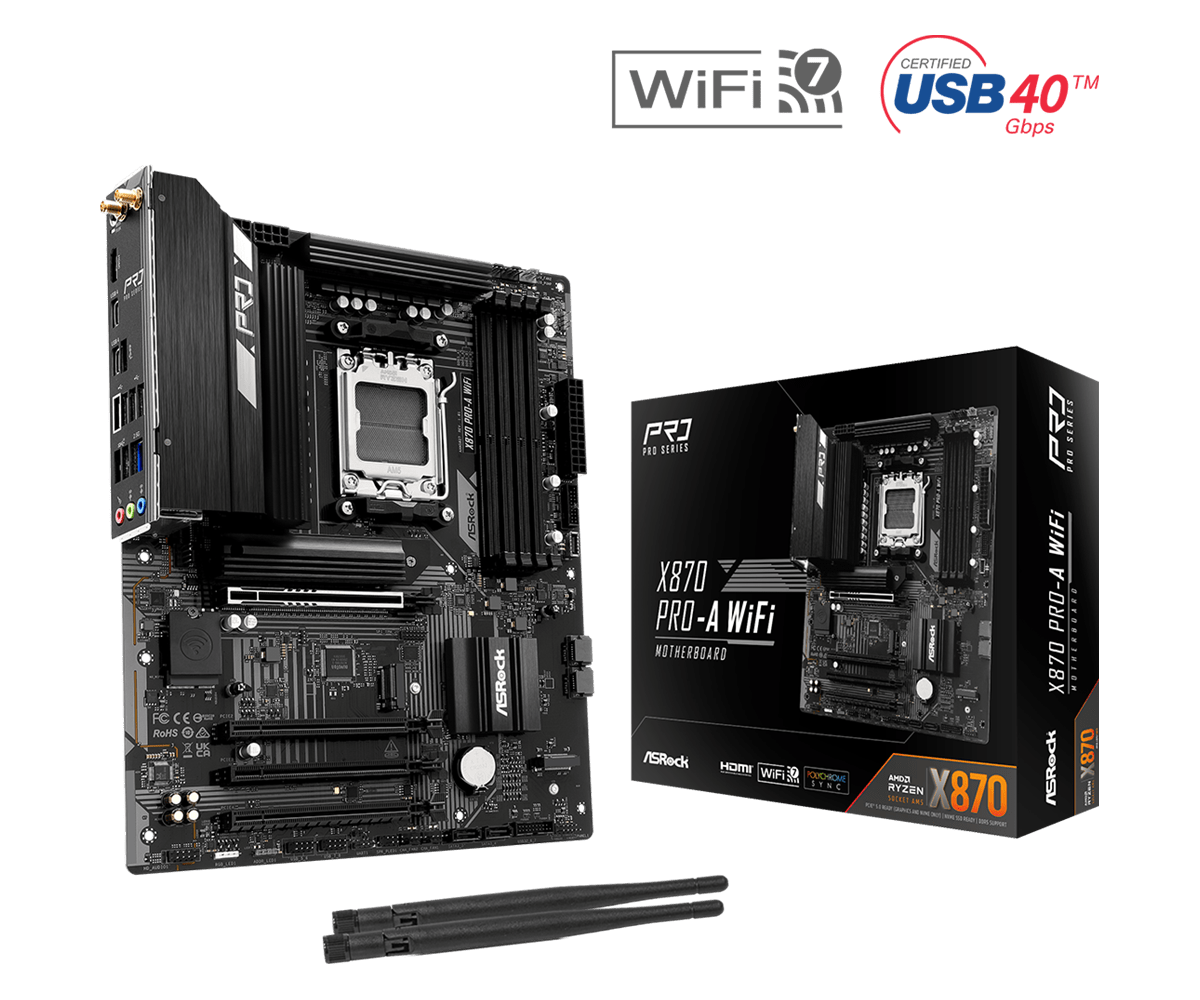

Engineered for performance and stability, the ASRock X870 Pro-A WiFi motherboard powers AMD AM5 Ryzen processors with a robust 16+2+1 power phase design. Featuring DDR5 memory overclocking, PCIe Gen5 M.2 support, dual USB4 Type-C ports, and Wi-Fi 7 connectivity, it provides high-speed throughput and thermal efficiency for gaming, content creation, and daily computing.

View details

Product Specifications

Warranty Information

Reviews

Specification Category	Details
CPU Support	Supports AMD Socket AM5 Ryzen 9000, 8000, and 7000 Series Processors
VRM & Power Design	16+2+1 Power Phase Design, 80A Dr.MOS for VCore+SOC+MISC, 1000uF Durable Capacitors, 8+8 Pin Hi-Density Power Connectors
PCB Structure	8 Layer PCB
Memory	4 x DDR5 DIMM Slots, Dual Channel, Supports up to 8000+ (OC), Supports AMD EXPO and Intel XMP Memory Profiles
Expansion Slots	1 x PCIe 5.0 x16 Slot, 3 x PCIe 4.0 x16 Slots
Graphics Output	1 x HDMI, 2 x USB4 Type-C (Rear)
Storage Slots	1 x Blazing M.2 (PCIe Gen5x4), 1 x Hyper M.2 (PCIe Gen4x4), 1 x M.2 (PCIe Gen3x2 & SATA3), 4 x SATA3 6.0 Gb/s Connectors
Thermal Management	Optimized Aluminum Heatsink Design, M.2 Bottom Heatsink
Wireless & Bluetooth	Wi-Fi 7 (802.11be) with Multi-link Operation (MLO) support, Built-in Bluetooth
Ethernet	Realtek Dragon 2.5 Gb/s LAN
USB Connectivity (Rear)	2 x USB4 Type-C (40Gbps), 2 x USB 3.2 Gen2 Type-A, 1 x USB 3.2 Gen1 Type-A, 4 x USB 2.0
USB Connectivity (Front)	1 x USB 3.2 Gen1 Type-C, 4 x USB 3.2 Gen1 Type-A, 4 x USB 2.0
Audio	Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio (Sound Tracker, Static Noise Suppression, Echo Cancellation)
RGB Lighting Support	Onboard RGB Headers, Addressable RGB Headers (WS2812B 5V), Polychrome RGB Sync, SignalRGB Integration
EZ Features	Auto Driver Installer (ADI), BIOS Flashback Button, Flexible Integrated I/O Shield
Software Utilities	ASRock Claw Quickset (Deployment tool for local AI models and OpenClaw)

Product Warranty: 1 Year

Warranty covers defects or dead-on-arrival items with original receipt and packaging. It excludes damage from misuse, power issues, unauthorized repairs, and software/data.
To claim, contact us within the warranty period with all accessories and packaging. Warranty is non-transferable and for the original buyer only.
For questions, contact us or check our warranty information.
