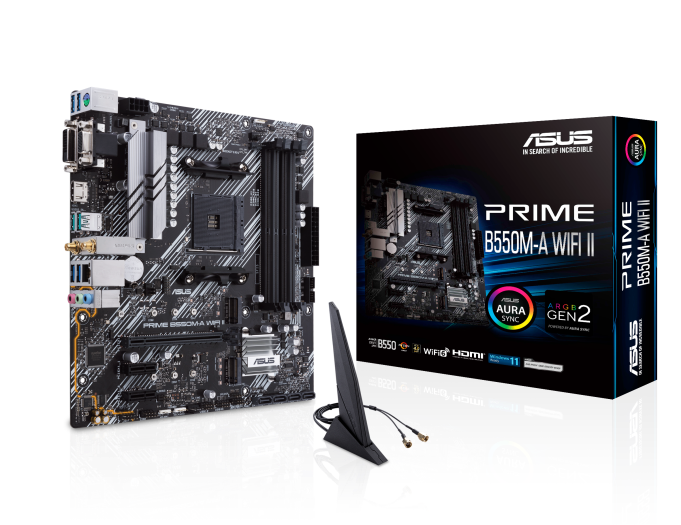

Asus Prime B550M-A WIFI II
- Designed for advanced AI PC and high-performance computing
- AMD AM4 socket, supports Ryzen™ 5000/4000/3000 series desktop processors
- microATX form factor (24.4cm x 24.4cm)
- Dual M.2 (PCIe 4.0/3.0), 4x SATA 6Gb/s with RAID 0/1/10
- PCIe 4.0/3.0 x16, 2x PCIe 3.0 x1 slots
- Wi-Fi 6 (802.11ax), Bluetooth v5.2, Realtek 1Gb Ethernet
- HDMI (4K@60Hz), DVI-D, and D-Sub video outputs
- Total 12 USB ports (includes USB 3.2 Gen 2 Type-A)
- Aura Sync RGB lighting with addressable Gen 2 headers
- Robust cooling: VRM and PCH heatsinks, hybrid fan headers, Fan Xpert 2+
- Realtek 7.1 Surround Sound HD Audio
|
Model
|
ASUS PRIME B550M-A WIFI II
|
|
CPU Support
|
AMD Ryzen™ 5000/4000/3000 series
|
|
Socket
|
AM4
|
|
Form Factor
|
microATX (24.4cm x 24.4cm)
|
|
Memory
|
4x DIMM, up to 128GB DDR4 4866(OC)-2133MHz
|
|
Storage
|
2x M.2 (PCIe 4.0/3.0), 4x SATA 6Gb/s, RAID 0/1/10
|
|
Expansion Slots
|
1x PCIe 4.0/3.0 x16, 2x PCIe 3.0 x1
|
|
Graphics Outputs
|
HDMI, DVI-D, D-Sub
|
|
Network
|
1Gb LAN, Wi-Fi 6, Bluetooth v5.2
|
|
USB Ports
|
Rear: 6 (2x USB 3.2 Gen 2, 4x USB 3.2 Gen 1), Front: 6 (2x USB 3.2 Gen 1, 4x USB 2.0)
|
|
Audio
|
Realtek 7.1 Surround Sound HD Audio
|
|
Aura Sync RGB
|
Addressable Gen 2 & RGB headers
|
|
Cooling
|
VRM/PCH heatsinks, hybrid fan headers, Fan Xpert 2+
|
|
BIOS
|
256Mb Flash ROM, UEFI AMI BIOS
|
|
Special Features
|
ASUS 5X PROTECTION III, ASUS Q-Design
|
|
OS Support
|
Windows 11 & 10 64-bit
|
Asus Prime B550M-A WIFI II
