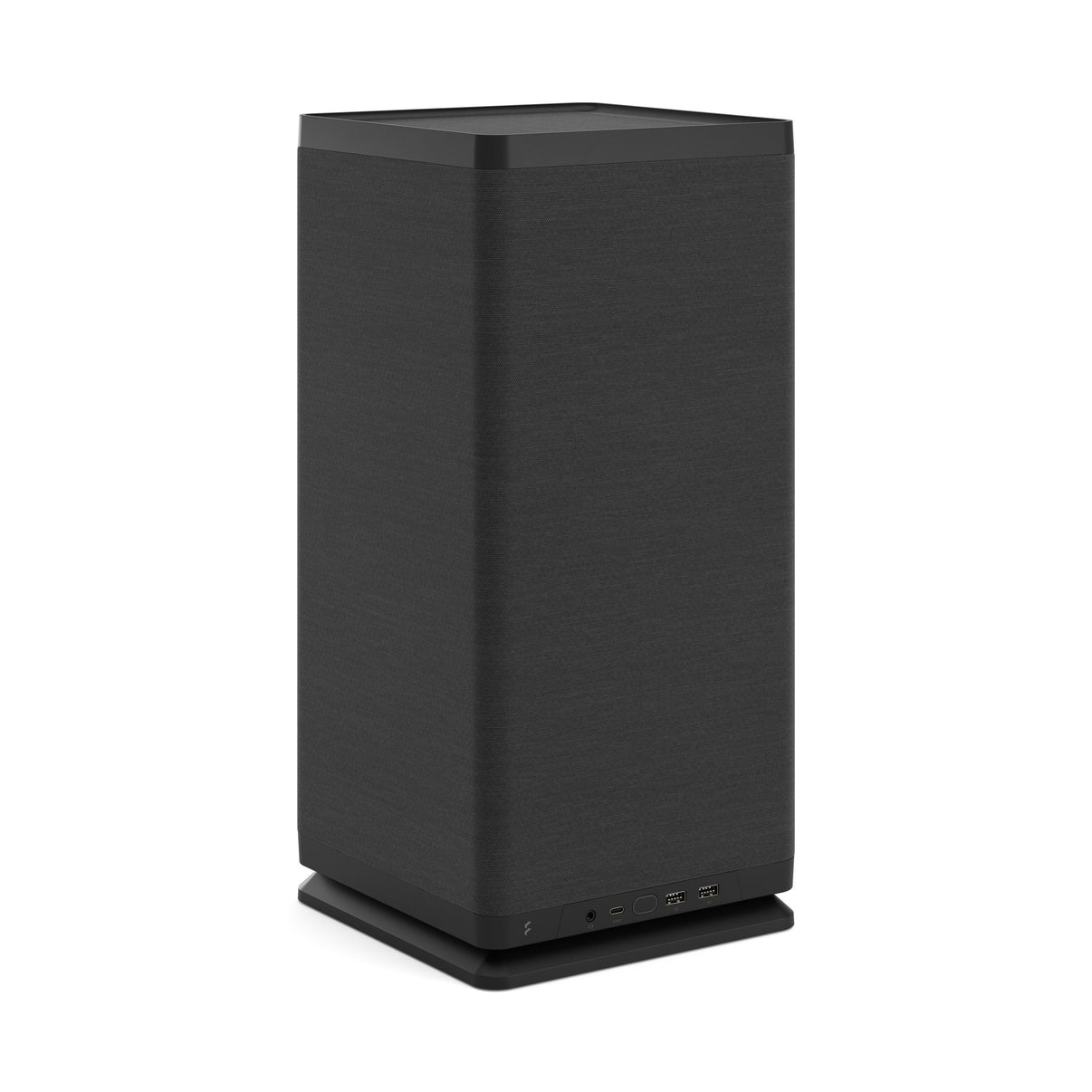

Fractal Design Mood
- Compact, Space-Saving Design: Pillar-style chassis keeps your setup elegant and uncluttered.
- Easy Access: Slide-off fabric enclosure and tool-less rear panel offer hassle-free build access.
- Discreet & Breathable: Premium fabric allows airflow while blending into home decor.
- Front-Facing High-Speed I/O: Includes USB Type C 20Gbps, two USB 3.0, audio/mic combo and power button.
- Efficient Cooling: Pre-installed 180 mm Dynamic fan circulates air upwards, with mounts for up to three additional fans.
- Versatile Graphics Support: Accommodates GPUs up to 325 mm in length, with PCIe 4.0 riser cable included.
- Flexible Storage: Two tool-less 2.5” SSD brackets and a mount for a 3.5” drive.
- Radiator Ready: Front compatibility with up to 280 mm radiators or CPU air coolers up to 114 mm.
- mITX Motherboard & SFX PSU Support: Designed for small-form-factor enthusiasts.
| Attribute | Details |
|---|---|
| 3.5" Drive Mounts | 1x 3.5” included |
| Dedicated 2.5" Drive Mounts | 2x included, 2x positions total |
| 5.25” Drive Mounts | 0 |
| Expansion Slots | 2 slot (2.75) |
| Front Interface | 1x USB Type C 20 Gbps (USB 3.2 Gen 2x2), 2x USB Type A 5 Gbps (USB 3.0), 1x Combo jack – Audio/Microphone, Power button |
| Total Fan Mounts | 1x 180 mm, 2x 120 mm, 2x 140 mm |
| Front Fan | 2x 120/140 mm |
| Top Fan | 1x 180 mm (included) |
| Rear Fan | None |
| Bottom Fan | None |
| Dust Filters | Rear magnetic filter mesh included |
| Fixed Velcro Straps | No |
| Tool-less Push-to-Lock | Rear panel + 2x SSD 2.5” brackets |
| Captive Thumbscrews | 2x PCIe blanks |
| Motherboard Compatibility | mITX |
| Power Supply Type | SFX, SFX-L |
| Front Radiator | Up to 280 mm |
| Top Radiator | None |
| Rear Radiator | None |
| Bottom Radiator | None |
| PSU Max Length | 130 mm |
| GPU Max Length | 325 mm |
| GPU Thickness | 56 mm (2.75 slot) |
| GPU Height | 145 mm (excluding cables), 158 mm (including cables) |
| CPU Cooler Max Height | 114 mm (from top of IHS) |
| SFF-Ready Enthusiast GeForce Cards | Yes |
| Case Dimensions (LxWxH) | 212 x 212 x 453 mm |
| Package Dimensions (LxWxH) | 303 x 287 x 580 mm |
| Net Weight | 4.6 kg |
| Gross Weight | 5.9 kg |
| Package Contents | Case, Accessory Box, Manual |
| Accessory Box Contents | Mounting screw (6-32) - 10pcs (x4 pcs for motherboard), (x4 pcs for power supply), (x2 extra) Mounting screw (M3) - 8pcs (8x pcs for SSD) 3.5” Drive screw - 4pcs Thumbscrew - 2pcs Cable straps - 6pcs Cable ties - 8pcs 2.5” Side bracket – 1 pc 2.5” Top bracket - 1pc |
