Thermalright

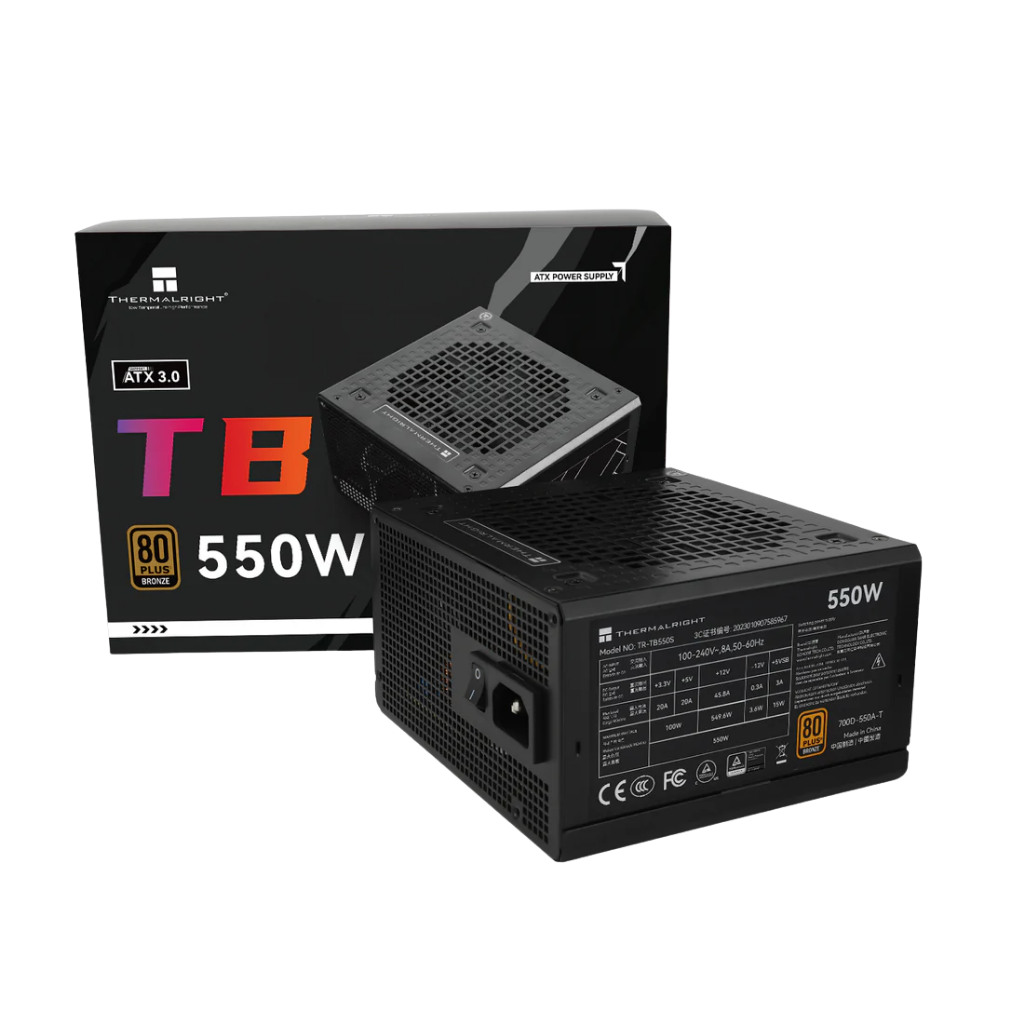

Thermalright TB550S 550W (80+ Bronze)

BND 70.00

In stock!

Estimated delivery: Jan 18 - Jan 22
Product Information
  • 80 PLUS Bronze Efficiency: Reduces power loss and heat output for better system stability.
  • ATX 3.0 Compatible: Fully meets Intel’s latest standards for modern PC hardware.
  • Japanese Main Capacitors: Rated to 105°C, ensuring extended lifespan and reliability.
  • Two-Tube Forward DC-DC Design: Delivers clean, stable voltage and minimized ripple for sensitive components.
  • Wide Input Range: Operates globally with 100–240V AC voltage support.
  • Multi-Line Protection: Safeguards your system with protections including OVP, OPP, OCP, SCP, and UVP.
  • Quiet, Durable Cooling: Fitted with a 120mm fan for quiet, reliable operation.
  • Comprehensive Connectivity: Includes all key cables for motherboard, CPU, PCIe, SATA, and PATA devices.
Product Summary

The Thermalright TB550S 550W is a robust, fixed-cable ATX power supply featuring 80 PLUS Bronze efficiency, full support for Intel ATX 3.0 standards, and high durability through 105°C-rated Japanese capacitors. It offers universal input voltage, multi-line protection circuits, a quiet 120mm fan, and reliable power delivery—ideal for dependable, cost-effective builds.
Pairs well with
Thermalright TB550S 550W (80+ Bronze)
BND 70.00
N/A / 1 Year Warr...
Related categories
View details
Model
TB-550S
Wattage
550W
Efficiency
80 PLUS Bronze
Cabling
Fixed Cable
Form Factor
ATX 3.0
Dimensions
150mm (L) × 140mm (W) × 86mm (H) ±1mm
Input Voltage
100–240Vac
Input Current
8A
Input Frequency
50–60Hz
Fan Size
120mm
Operating Temp.
0–40°C
MTBF
>100,000 hours
Protections
OVP / OPP / OCP / SCP / UVP
Motherboard Cable
20+4 pin, 550mm (x1)
CPU Cable
4+4 pin, 600mm + 150mm (x1)
PCI-E Cable
6+2 pin, 450mm + 150mm (x1)
SATA/PATA Combination
400mm + 150mm + 150mm: SATA(×3) + PATA(×1)
SATA/PATA Separate
400mm + 150mm + 150mm + 150mm: PATA(×2)
+3.3V / +5V
20A / 20A (max output power 100W)
+12V
45.8A (max output power 549W)
-12V / +5VSB
0.3A / 3A (3.6W / 15W max)
