| Feature | Specification |

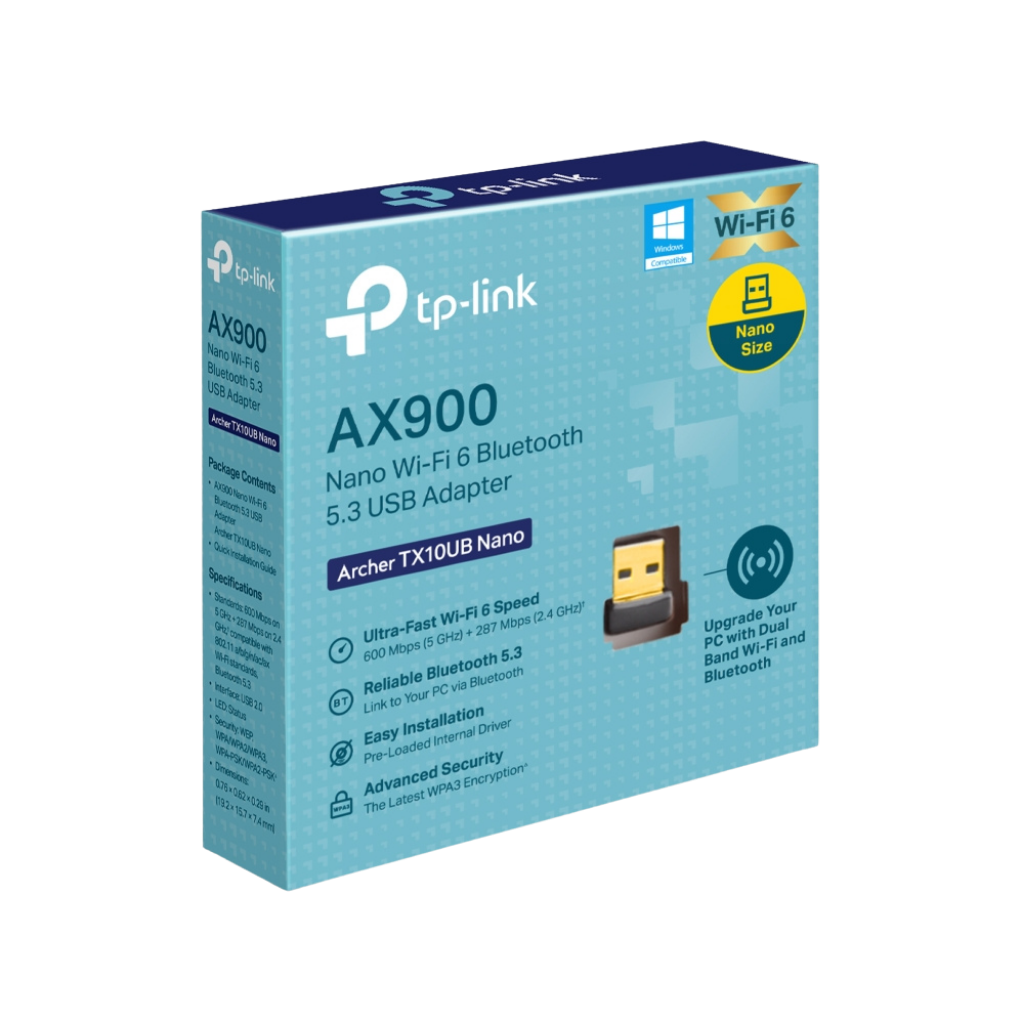

| Model | Archer TX10UB Nano |
| Interface | USB 2.0 |
| Wi-Fi Standard | IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/g/b 2.4 GHz |
| Signal Rate (5 GHz) | 11ax: Up to 600 Mbps; 11ac: Up to 433 Mbps |
| Signal Rate (2.4 GHz) | 11ax: Up to 287 Mbps; 11n: Up to 200 Mbps |
| Bluetooth Version | 5.3 |
| Wireless Security | WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK, WPA3-SAE |
| Antenna Type | Omni Directional |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
| Dimensions (W x D x H) | 19.2 × 15.7 × 7.4 mm |
| System Requirements | Windows 11/10 |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 10% ~ 90% non-condensing |
| Certifications | CE, FCC, RoHS |
