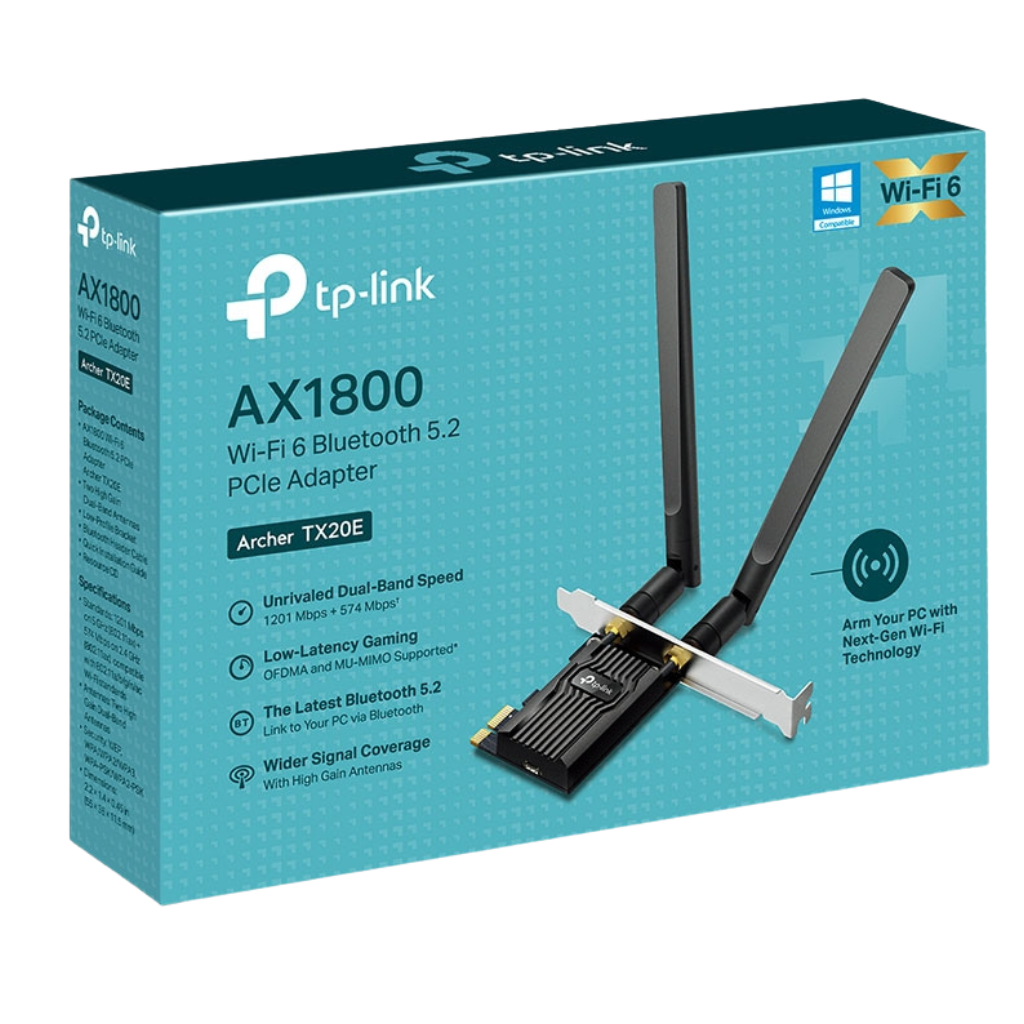

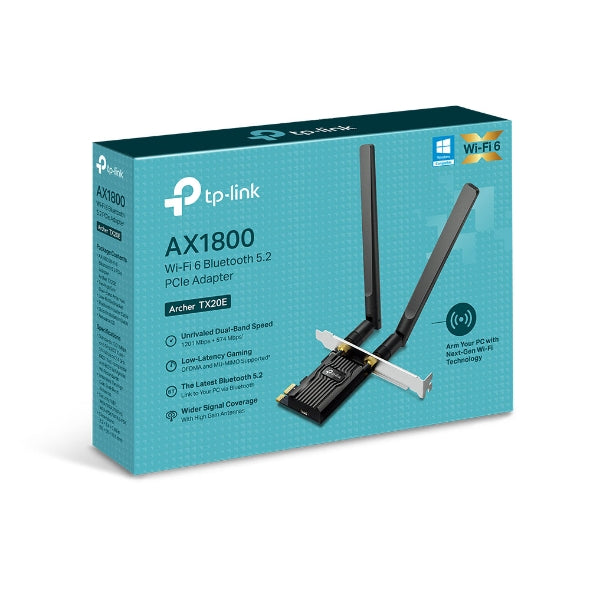

TP-Link Archer TX20E
- Unmatched Wi-Fi 6 Speed: Achieve up to 1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz for a total combined speed of up to 1775 Mbps—well above the gigabit barrier.
- Wider Signal Coverage: Equipped with two external high-gain antennas to cover more of your home and ensure reliable connections even at a distance.
- Next-Generation Bluetooth 5.2: Enjoy 2× faster speeds and 4× broader coverage than Bluetooth 4.2, perfectly supporting PCs and peripherals.
- Enhanced Security: WPA3 ensures the latest in wireless security, maximizing personal password protection and safe browsing.
- Optimized for More Devices: OFDMA and MU-MIMO technologies minimize congestion, allowing more devices on your network with lag-free performance.
- Wide Compatibility: Fully backward compatible with Wi-Fi 6/5/4/3 standards (802.11ax/ac/a/b/g/n).
|
Wireless Speed
|
Up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
|
|
Antennas
|
Two high-gain, dual-band antennas
|
|
Bluetooth
|
Bluetooth 5.2
|
|
Chipset
|
Realtek Wi-Fi 6
|
|
Wireless Technology
|
IEEE 802.11ax/ac/n/a (5 GHz), IEEE 802.11ax/n/g/b (2.4 GHz)
|
|
Security
|
WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK, 802.1x, 64/128 bit WEP
|
|
Coverage
|
Enhanced with high-gain antennas
|
|
Modulation & Technology
|
OFDMA, MU-MIMO, DBPSK, DQPSK, CCK, OFDM, 16/64/256/1024 QAM
|
|
PC Interface
|
PCI Express
|
|
Bluetooth Header
|
Included
|
|
Dimensions
|
120.8 × 78.5 × 20.9 mm (4.76 × 3.09 × 0.82 in)
|
|
System Requirements
|
Windows 11/10 (64-bit) only
|
|
Certifications
|
FCC, CE, RoHS
|
|
Extras
|
Low-profile bracket, Quick Installation Guide, Resource CD
|
|
Operating Temperature
|
0℃~40℃ (32℉~104℉)
|
TP-Link Archer TX20E
105900 / 1 Year WarrantyGet notified when this item is back in stock
