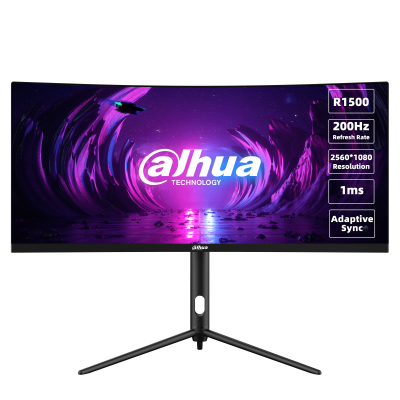

Dahua LM30 E330CW (30 inch 200Hz 1080P Curved VA)
- 30-inch ultra-wide VA panel for an immersive, cinematic visual experience
- WFHD resolution (2560 x 1080) and 21:9 aspect ratio for enhanced screen real estate
- High-speed 200Hz refresh rate and 1ms MPRT response time for smooth, tear-free gaming
- Wide color coverage: 99% sRGB (typical), 85% NTSC (typical); maximum brightness 250 cd/m²
- Dynamic 3000:1 contrast ratio and wide viewing angles (178° H/V) for deep, vivid visuals
- Certified for CE EMC, CE LVD, CE ERP—ensuring safety, reliability, and energy efficiency
- Extensive connectivity: 2x DP 1.4, 2x HDMI 2.0, 1x audio out, plus VESA mounting (75x75mm)
- Ergonomics: height, tilt, and swivel adjustments, with included stand and wall-mount support
Product Specifications:
| Model | DHI-LM30-E330CW |
| Panel Type | VA |
| Backlight | ELED |
| Screen Size | 30 inch |
| Aspect Ratio | 21:9 |
| Resolution | 2560 x 1080 (WFHD) |
| Refresh Rate | 200 Hz |
| Response Time | 1 ms (MPRT) |
| Brightness (Max) | 250 cd/m² |
| Contrast Ratio | 3000:1 |
| Color Coverage | 99% sRGB (typ.), 85% NTSC (typ.) |
| Viewing Angle (H/V) | 178° / 178° |
| Surface Treatment | Haze 25%, 3H |
| Display Mode | Horizontal |
| Lifespan | 30,000 hrs |
| Input Ports | 2x DP 1.4, 2x HDMI 2.0 |
| Output Ports | 1x Audio out |
| Power Supply | 12 VDC, 4 A (power adapter included) |
| Power Consumption | 26 W (basic), 36 W (typ.), 40 W (max), <0.5 W standby |
| Operating Temp. | 0°C to 40°C |
| Operating Humidity | 10%–85% (non-condensing) |
| Storage Temp./Humidity | -20°C to 60°C / 5%–90% (non-condensing) |
| Adjustability | -5°±2° ~ 20°±2° tilt, -25°/+25° rotation, 115 mm height |
| Wall Mount VESA | 75 x 75 mm |
| Dimensions (W x H x D) | 701.1 x 536.3 x 269.3 mm (with stand) |
| Net Weight / Gross Weight | 5.84 kg / 8.71 kg |
| Frame Width | U/L/R/D: 7.65 / 8.17 / 8.17 / 18.7 mm |
| Certifications | CE EMC, CE LVD, CE ERP |
| Included Accessories | Power adapter, DP cable, user's manual, legal info |
