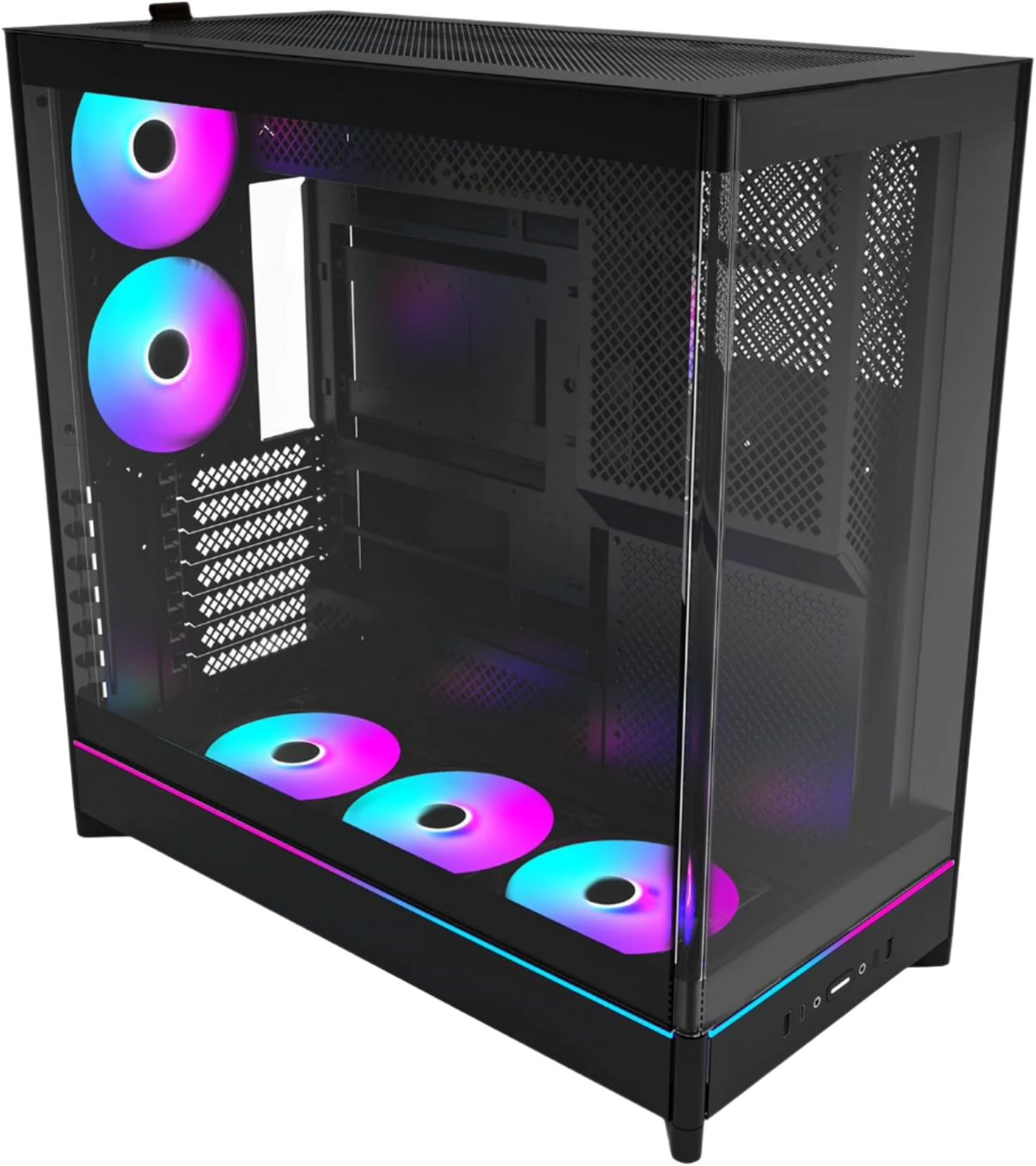

Montech HS02 Pro TG
- Minimalist design with reversible panoramic glass panels (left/right position)
- 8° curved glass front for a seamless, wide build showcase
- Advanced chimney-style airflow with three bottom and two rear fans pre-installed
- Supports back-connect and standard motherboards (ATX/Micro-ATX/Mini-ITX, incl. MSI Project Zero, ASUS BTF)
- Five pre-installed GF120 V2 ARGB fans with motherboard sync and 29 lighting modes
- Full modern front I/O: USB Type-C, dual USB 3.0 Type-A, mic, audio, LED control
- Supports large GPUs (up to 420mm), tall CPU coolers (up to 175mm), and SFX/ATX PSUs (up to 200mm)
- Flexible radiator support: top (up to 360mm/123mm width), bottom (up to 240mm), rear (120mm)
- Supports 2 × 3.5” HDD and 4 × 2.5” SSD for broad storage flexibility
- Efficient, easy-to-clean bottom dust filter
Product Specifications
| Model Name | HS02 PRO |
| Color | Black / White |
| Dimensions | 480 × 240 × 480 mm (Case) |
| Motherboard Support | ATX / Micro-ATX / Mini-ITX / Back-Connected |
| PCIe Slots | 7 |
| Max CPU Cooler | 175mm |
| Max GPU Length | 420mm |
| Max PSU Length | 200mm (ATX / SFX) |
| Drive Bays | 2 × 3.5” HDD, 4 × 2.5” SSD |
| Front I/O | USB 3.0 ×2, Type-C ×1, Mic ×1, Audio ×1, LED, Power Button |
| Fan Support | Top: 120mm ×3; Bottom: 120mm ×3; Rear: 120mm ×2 |
| Pre-installed Fans | Bottom: 120mm ×3, Rear: 120mm ×2 (GF120 V2 ARGB) |
| Radiator Support | Top: 120/240/360mm (max width 123mm); Bottom: 120/240mm; Rear: 120mm |
| Dust Filter | Bottom |
