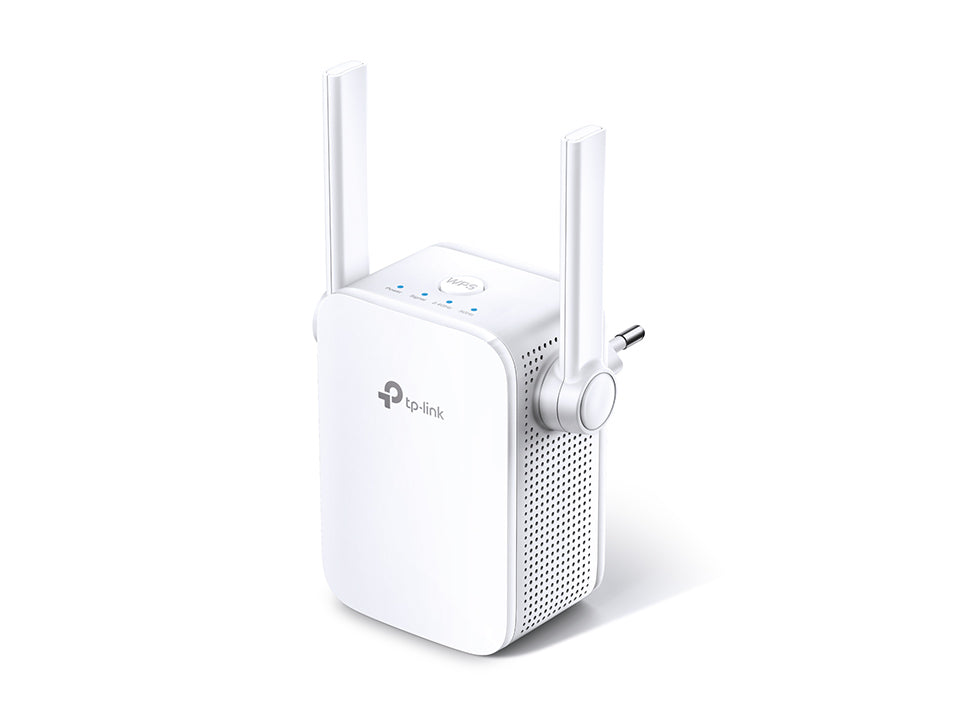

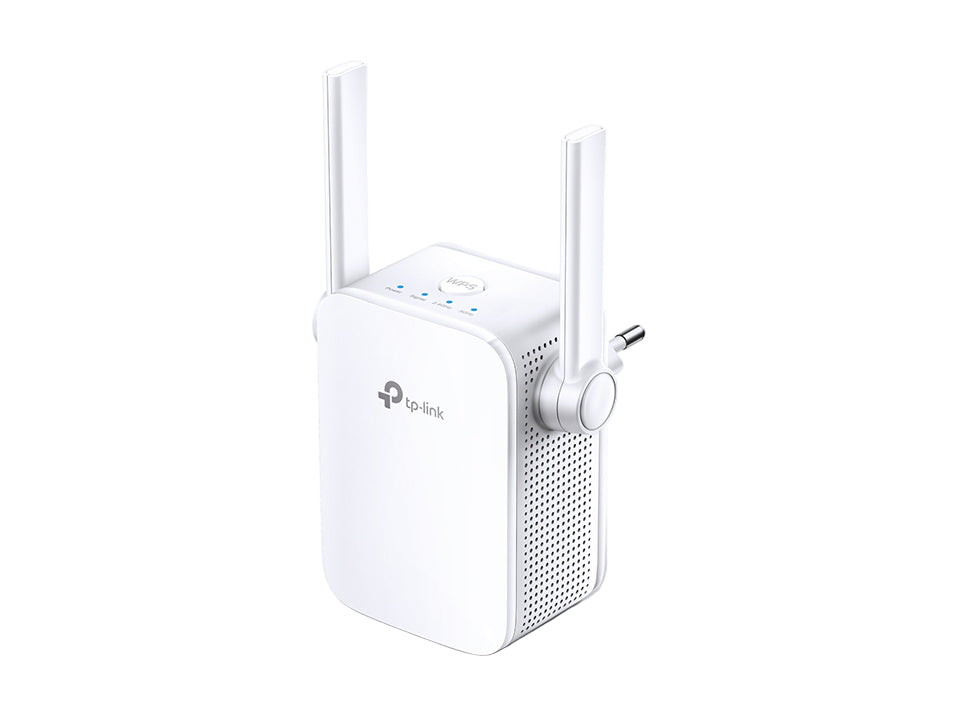

TP-Link RE305 Extender - WiFi 5
- Dual-band AC1200 Wi-Fi extension (2.4 GHz @ 300 Mbps + 5 GHz @ 867 Mbps)
- Intelligent signal strength LED for optimal placement
- Mode switchable between Range Extender and Access Point
- Universal compatibility: works with any Wi-Fi router or access point
- Two external antennas for enhanced coverage
| Model | RE305 |
| Wireless Standards | IEEE 802.11a/n/ac (5 GHz); IEEE 802.11b/g/n (2.4 GHz) |
| Frequency Bands | 2.4 GHz & 5 GHz |
| Maximum Throughput | 300 Mbps @2.4 GHz; 867 Mbps @5 GHz |
| Modes | Range Extender, Access Point |
| Ethernet Port | 1× 10/100 Mbps RJ45 |
| Antennas | 2 External |
| Signal-Finding LED | 3-color indicator |
| Buttons | WPS, Reset |
| Input Power | 100–240 V ~, 50/60 Hz |
| Max. Power Consumption | 7.3 W |
| Reception Sensitivity (5 GHz) | 6 Mbps (–91 dBm); 54 Mbps (–74 dBm); HT20 mcs8 (–68 dBm); HT40 mcs9 (–63 dBm); HT80 mcs9 (–59 dBm) |
| Reception Sensitivity (2.4 GHz) | 54 Mbps (–79 dBm); HT20 mcs7 (–77 dBm); HT40 mcs7 (–74 dBm) |
| Transmission Power | < 17 dBm (both bands) |
| Security | WEP 64/128 bit; WPA-PSK / WPA2-PSK |
| LED Control | On/Off schedule |
| Access Control | Yes |
| DFS Support | Yes (latest firmware/hardware) |
| Certifications | CE, FCC, RoHS |
| Dimensions (W×D×H) | 80 × 78 × 77 mm (3.1 × 3.0 × 3.0 in) |
| Box Dimensions | 156.5 × 101.5 × 95 mm (6.15 × 4 × 3.7 in) |
| Operating Temperature | 0 °C – 40 °C (32 °F – 104 °F) |
| Storage Temperature | –40 °C – 70 °C (–40 °F – 158 °F) |
| Operating Humidity | 10% – 90% non-condensing |
| Storage Humidity | 5% – 90% non-condensing |
| System Requirements | Windows 98SE–10, macOS, NetWare, UNIX, Linux |
| Package Contents | RE305 extender, Quick Install Guide |
