xOVERVIEW

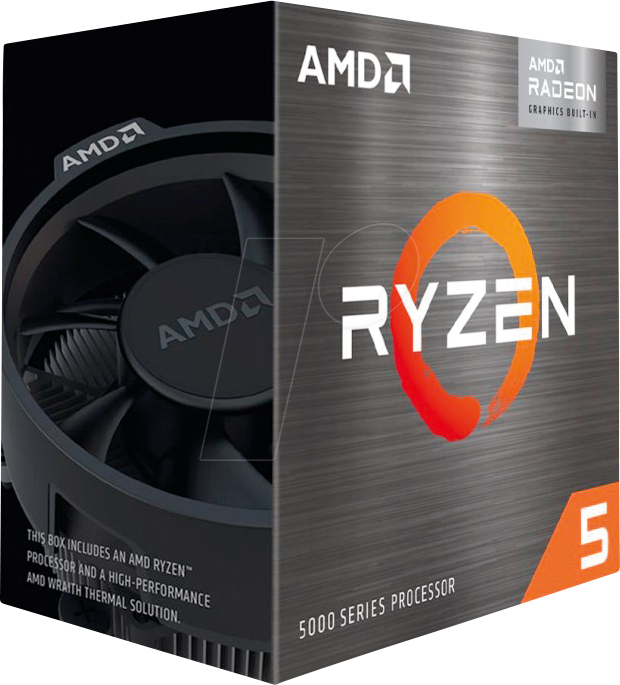

The AMD Ryzen 5 5600GT is a desktop processor with 6 cores, launched in January 2024, with an MSRP of $140. It uses the Zen 3 architecture with Socket AM4, with 12 threads and 16 MB of L3 cache. The processor operates at 3.6 GHz by default but can boost to 4.6 GHz. It has a TDP of 65 W, supports DDR4 memory, and uses a PCI-Express Gen 3 connection for communication. It features Radeon Vega 7 integrated graphics and a Wraith Stealth cooler.
PRODUCT SPECIFICATIONS
| GENERAL |
| Platforms | Boxed Processor |
| Product Family |
AMD Ryzen™ Processors
|
| Product Line |
AMD Ryzen™ 5 5000 G-Series Desktop Processors with Radeon™ Graphics
|
|
# of CPU Cores
|
6 |
|
# of Threads
|
12 |
|
Max. Boost Clock
|
Up to 4.6GHz
|
|
Base Clock
|
3.6GHz |
|
L1 Cache
|
384KB
|
|
L2 Cache
|
3MB |
|
L3 Cache
|
16MB |
|
Default TDP
|
65W
|
|
AMD Configurable TDP (cTDP)
|
45-65W
|
|
Processor Technology for CPU Cores
|
TSMC 7nm FinFET |
| Unlocked for Overclocking | Yes |
|
CPU Socket
|
AM4 |
|
Thermal Solution (PIB)
|
AMD Wraith Stealth
|
|
Max. Operating Temperature (Tjmax)
|
95°C
|
|
Launch Date
|
1/8/2024 |
|
OS Support
|
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
|
| CONNECTIVITY |
|
PCI Express® Version
|
PCIe 3.0
|
|
System Memory Type
|
DDR4
|
|
Memory Channels
|
2
|
|
System Memory Specification
|
Up to 3200MHz
|
| Max Memory Speed |
2x1R
DDR4-3200 2x2R
DDR4-3200 4x1R
DDR4-2933 4x2R
DDR4-2667 |
| GRAPHIC CAPABILITIES |
|
Graphics Model
|
Radeon™ Graphics
|
|
Graphics count
|
7
|
|
Graphics Frequency
|
1900MHz
|
