Product Description
xOVERVIEW

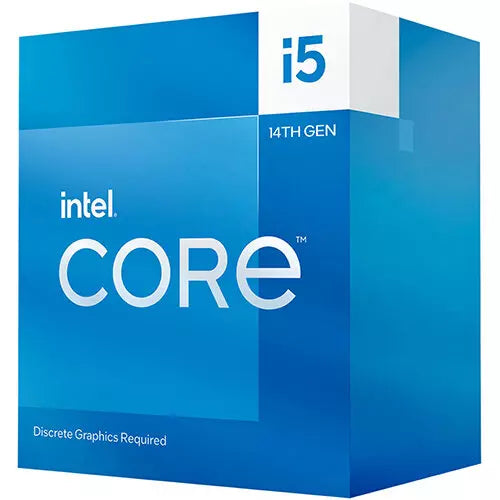

The Intel Core i5-14400F is a desktop processor with 10 cores, launched in January 2024. It uses the Raptor Lake Refresh architecture with Socket 1700 and supports Intel Hyper-Threading technology, doubling the core-count to 16 threads. It has 20 MB of L3 cache and operates at 2.5 GHz by default, but can boost up to 4.7 GHz. With a TDP of 65 W, it supports DDR4 and DDR5 memory, ECC memory, and PCI-Express Gen 5 connection. It supports hardware virtualization and AVX2 standard for calculation-heavy applications.
PRODUCT SPECIFICATIONS
| ESSENTIAL |
| Product Collection | Intel® Core™ i5 Processors (14th gen) |
| Code Name | Products formerly Raptor Lake |
| Vertical Segment | Desktop |
| Processor Number | i5-14400F |
|
Lithography
|
Intel 7 |
|
Use Conditions
|
PC/Client/Tablet |
| CPU SPECIFICATIONS |
| Total Cores | 10 |
| # of Performance-cores | 6 |
| # of Efficient-cores | 4 |
| Total Threads | 16 |
|
Max Turbo Frequency
|
4.7 GHz |
|
Performance-core Max Turbo Frequency
|
4.7 GHz |
| 3.5 GHz | |
|
Performance-core Base Frequency
|
2.50 GHz |
|
Efficient-core Base Frequency
|
1.80 GHz |
| Cache | 20 MB Intel® Smart Cache |
| Total L2 Cache | 9.5 MB |
| Processor Base Power | 65 W |
| Maximum Turbo Power | 148 W |
| MEMORY SPECIFICATIONS |
| Max Memory Size (dependent on memory type) | 192 GB |
| Memory Types |
Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 76.8 GB/s |
| PACKAGE SPECIFICATIONS |
| Socket Supported | FCLGA1700 |
| Max CPU Configurations | 1 |
| Thermal Solution Specification | PCG 2020C |
| TJunction | 100°C |
| Package Size | 45.0 mm x 37.5 mm |
