Product Description

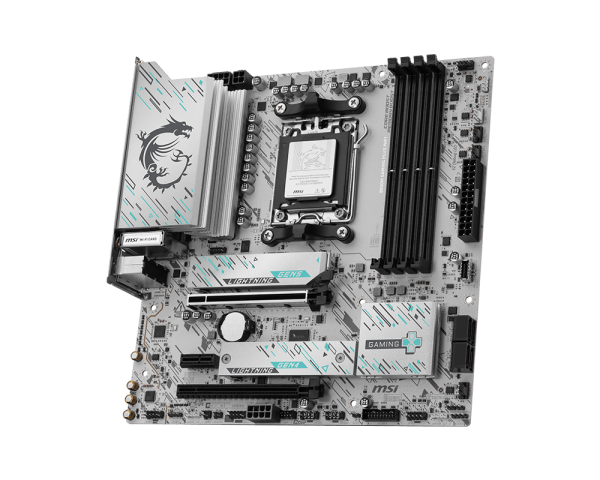

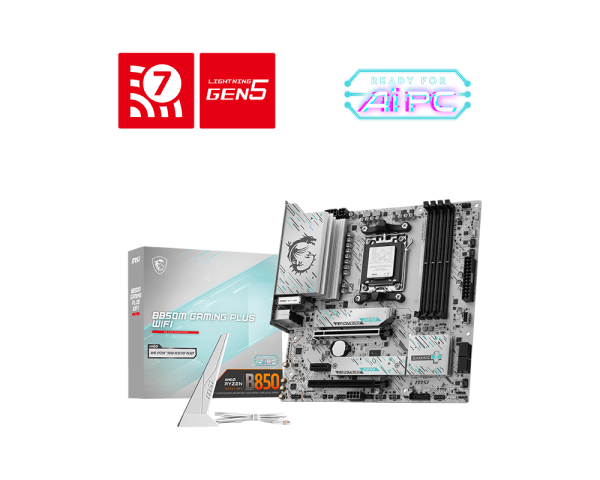

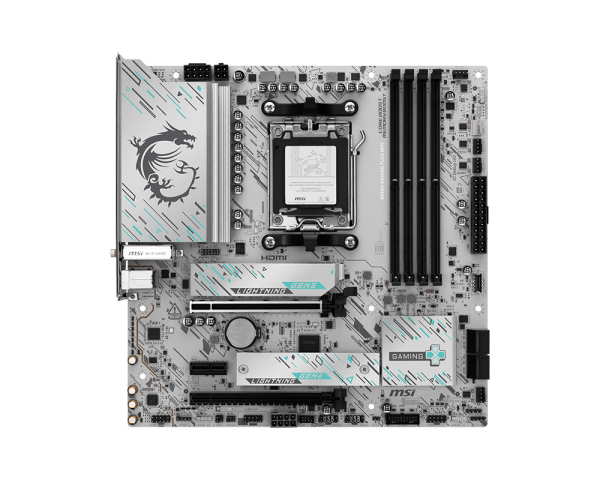

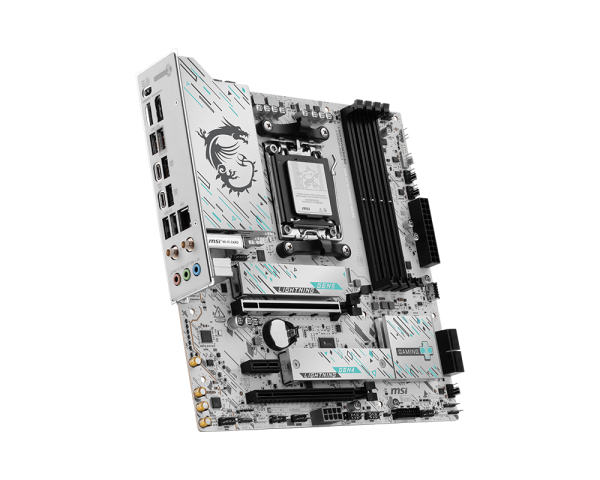

xB850M GAMING PLUS WIFI
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: Direct 8+2+1 Power System with 60A SPS, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- High-speed Connectivity: 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Product Specifications
| Chipset | AMD B850 |
| CPU Support | AMD Ryzen™ 9000/8000/7000 Series, Socket AM5 |
| Memory | 4x DDR5 UDIMM, up to 256GB, DDR5-8200+ (OC), Dual-Channel, AMD EXPO™, Non-ECC, Un-buffered |
| Integrated Graphics | 1× HDMI™ 2.1, 1× DisplayPort 1.4 (4K 60Hz, with compatible CPUs) |
| Expansion Slots | 2× PCI-E x16 (1× PCIe 5.0 x16, 1× PCIe 4.0/4.0), 1× PCIe 3.0 x1 |
| Storage | 2× M.2 (1× PCIe 5.0 x4, 1× PCIe 4.0 x4/2), 4× SATA 6Gb/s, RAID 0/1/10 support |

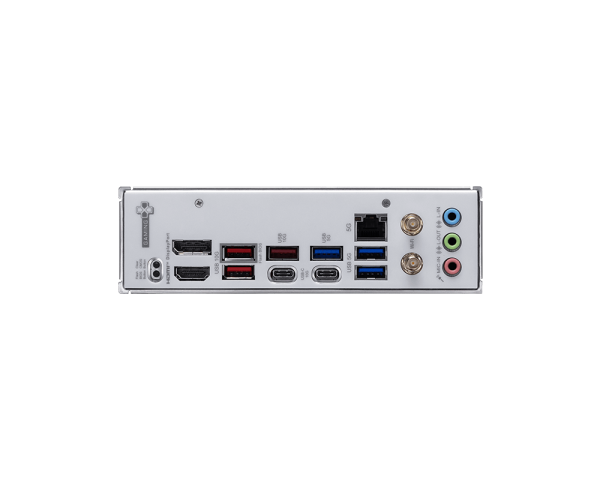

| USB Ports | Front: 4× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 10Gbps Type-C; Rear: 3× USB 5Gbps Type-A, 3× USB 10Gbps Type-A, 2× USB 10Gbps Type-C |
| Networking | Realtek® 8126 5G LAN, Wi-Fi 7 (802.11be, MU-MIMO, Bluetooth 5.4) |
| Audio | Realtek® ALC897, 7.1-Channel High Definition Audio |
| Internal Connectors | ATX_PWR, 2× CPU_PWR, PCIe_PWR, CPU/Combo/System Fans, RGB/Addressable LED, TPM 2.0 header, Front Panel/Audio |
| Form Factor | mATX 243.84mm x 243.84mm |
| Special Features | EZ Debug LEDs, Flash BIOS Button, PCIe 5.0 Ready, Memory Overclocking, CUDIMM support |
| OS Support | Windows® 11 64-bit |
