Product Description

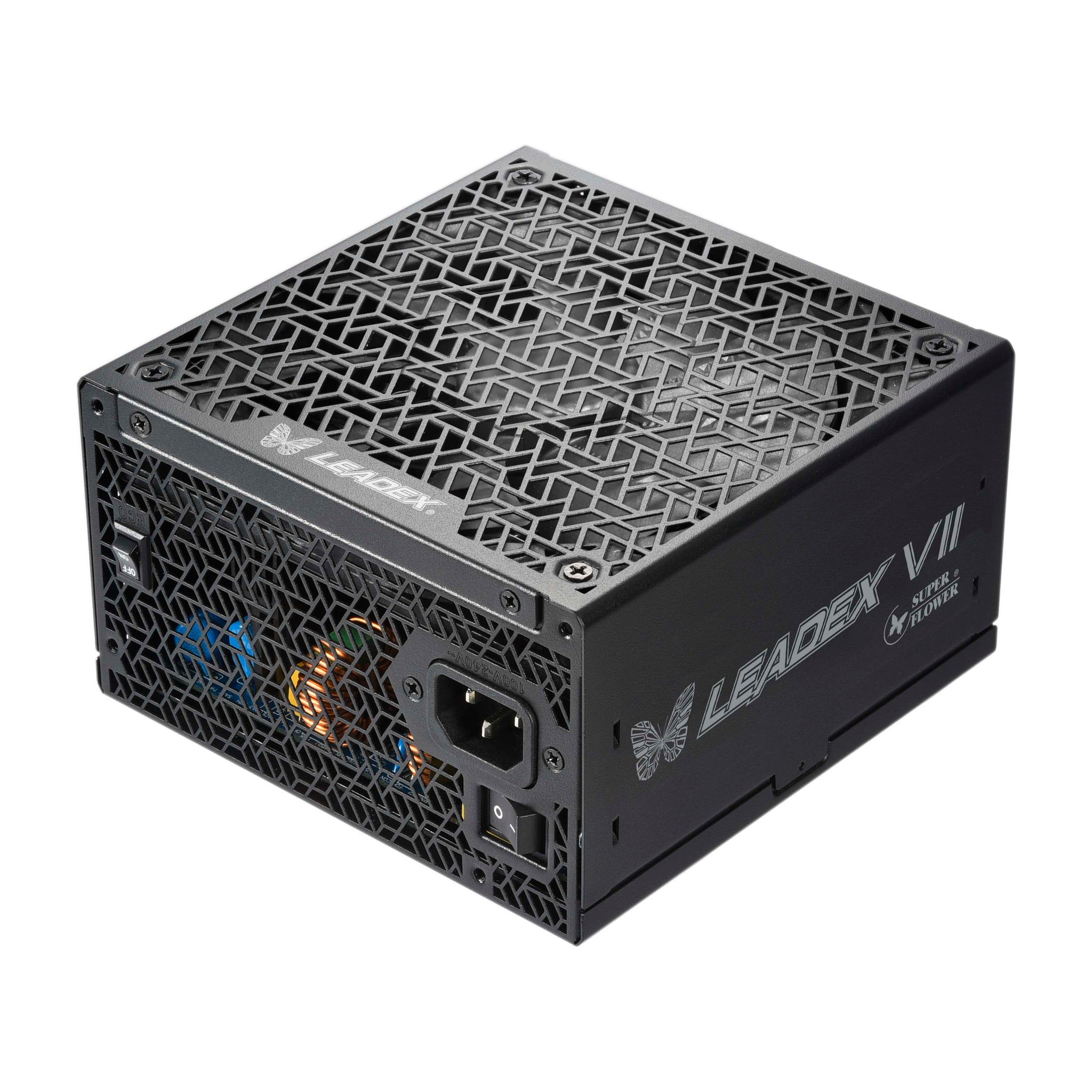

xSuperflower Leadex VII Platinum Pro ATX 3.1 1000W
- 1000W Platinum power supply for high-performance gaming and professional PCs
- ATX 3.1 compatible, PCIe 5.1 ready, supports up to 200% power excursion
- Fully modular with ultra-flexible ribbon cables for easy cable management
- Patented Universal Super Connector for CPU, PCI-E, and peripherals
- 80 PLUS® & Cybenetics Platinum certified – up to 92% efficiency
- Heavy-duty protection: OVP/OCP/OPP/SCP/UVP/OTP/NLO/SIP
- Premium 140mm FDB fan for quiet, stable cooling and long life
- Uses 100% Japanese 105°C capacitors
|
Efficiency
|
20%: 90%, 50%: 92%, 100%: 89% (115V); Cybenetics/80PLUS: Platinum
|
|
Standards
|
ATX 3.1, EPS 2.92, PCIe 5.1, 80PLUS/Cybenetics Platinum
|
|
Input Voltage/Freq.
|
100V–240V
|
|
Output
|
+3.3V/20A, +5V/20A, +12V/83.3A, -12V/0.5A, +5VSB/2.5A
|
|
Total Power
|
1000W
|
|

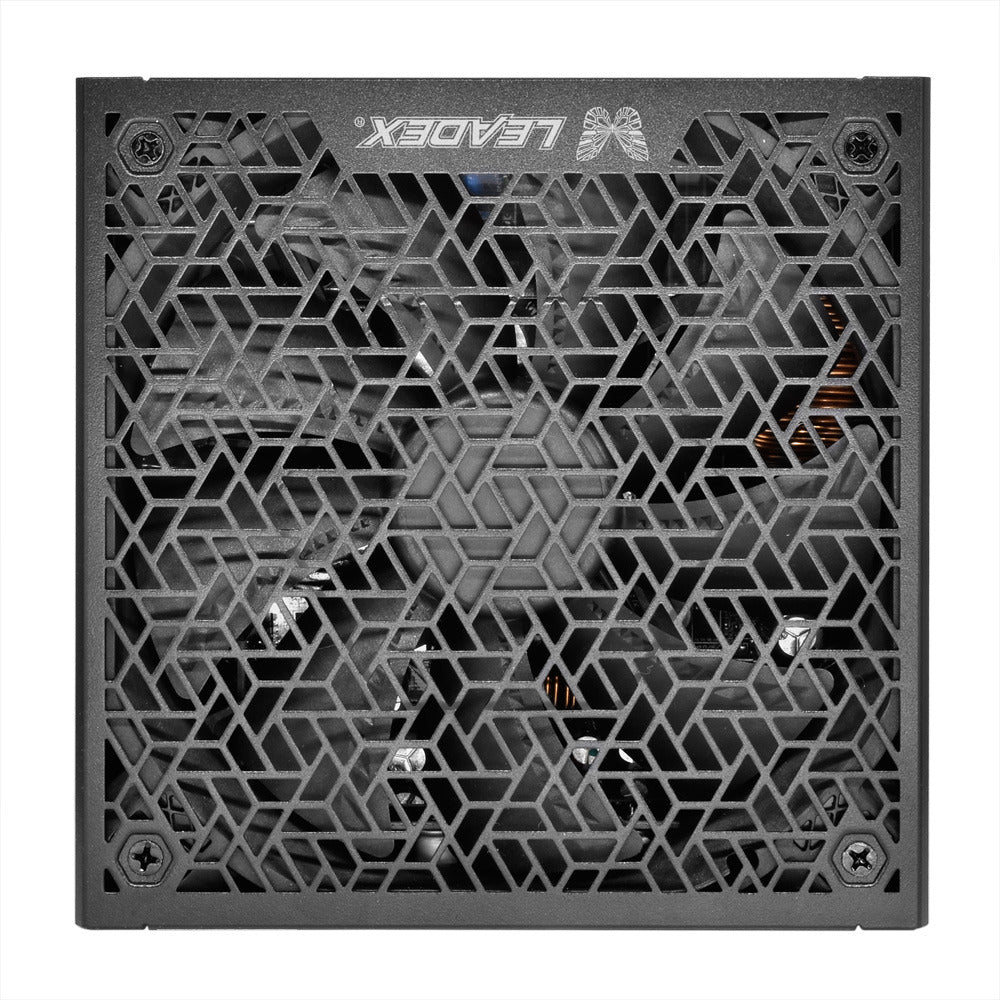

Fan
|
140mm FDB, patented 9-blade low-noise
|
|
Dimensions
|
150(L) x 150(W) x 86(H) mm
|
|
Protections
|
OVP, OCP, OPP, SCP, UVP, OTP, NLO, SIP
|
|
Cabling
|
Fully modular, ultra-flexible ribbon cables
|
|

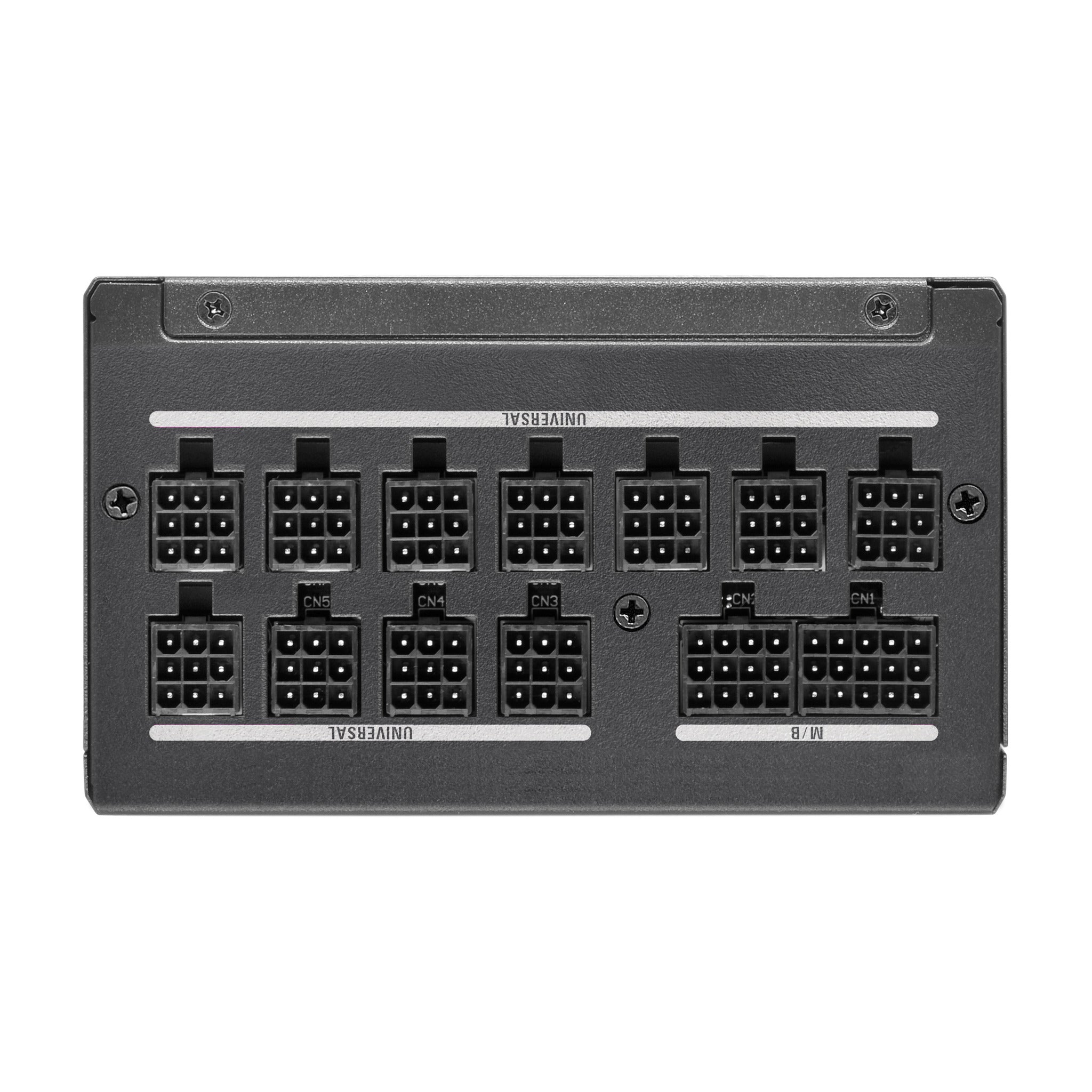

Connectors
|
20+4 Pin, 8(4+4) Pin CPU (2), PCIe 6+2 (4), PCIe 12+4 (1), SATA (12), Molex (4)
|
|
Certifications
|
cTÜVus, TÜV, CB, CE, FCC, UKCA, RCM, BSMI, RoHS, KCC, EAC, CCC
|
|
Operating Temp.
|
Passed 50°C hot test
|
|
Build Quality
|
100% Japanese 105°C capacitors, RoHS/Lead-Free compliance
|
|
Additional
|
ECO & auto fan control, IEC/EN 62368, ALPM mode compliance, SLI/CrossFireX ready
|
