Product Description

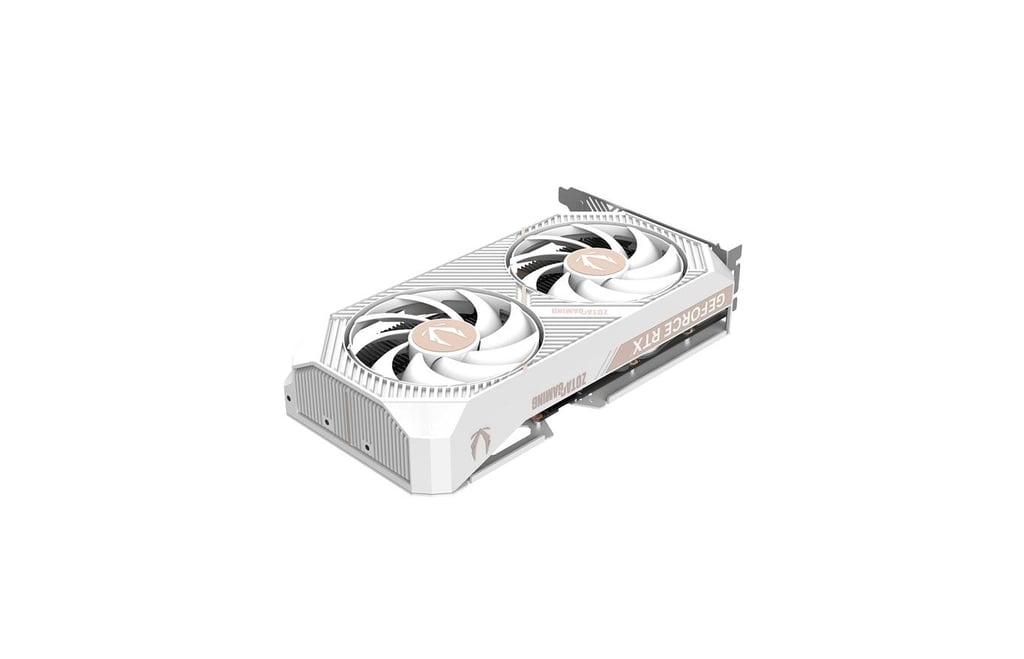

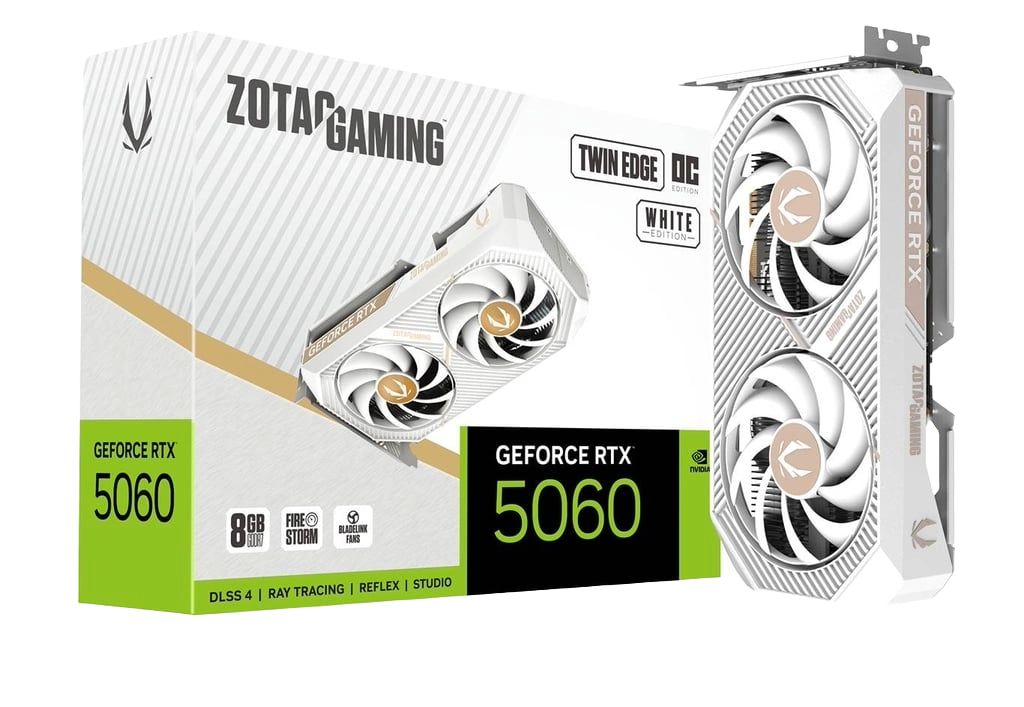

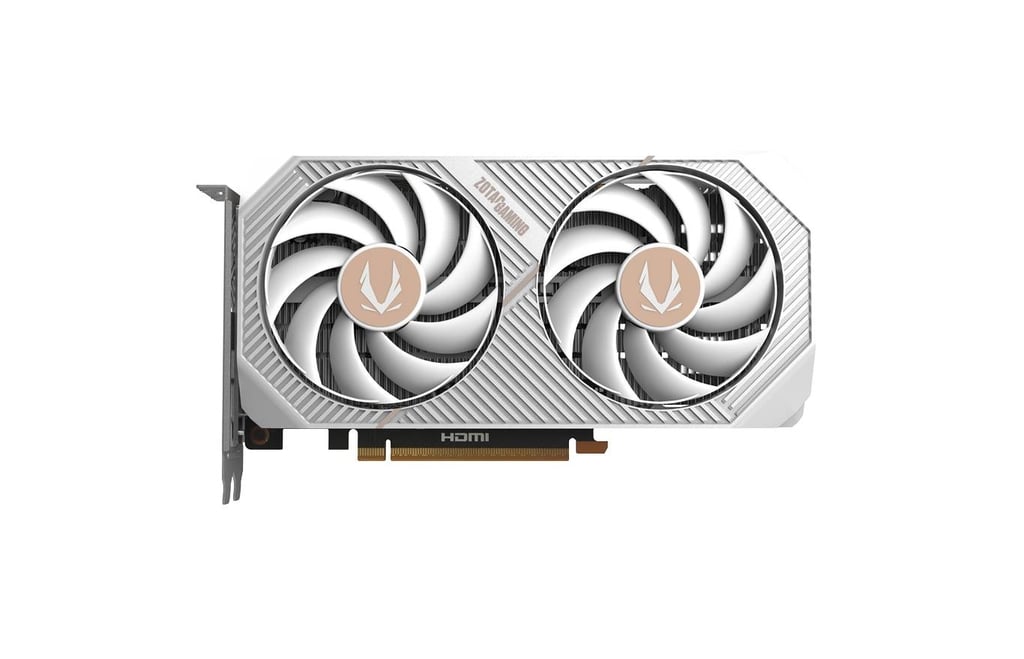

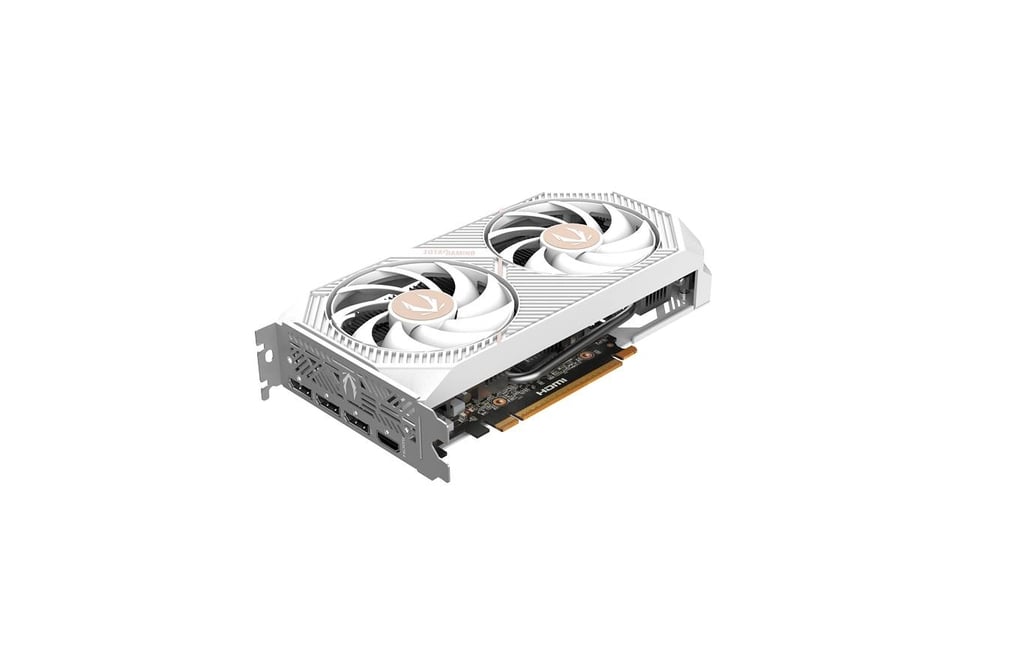

xZotac RTX 5060 Twin Edge OC (White)
- Compact, SFF-ready white edition graphics card
- Powered by NVIDIA Blackwell architecture and DLSS 4
- 8GB GDDR7 memory with factory overclock
- Triple DisplayPort 2.1b and HDMI 2.1b support (up to 8K/165Hz)

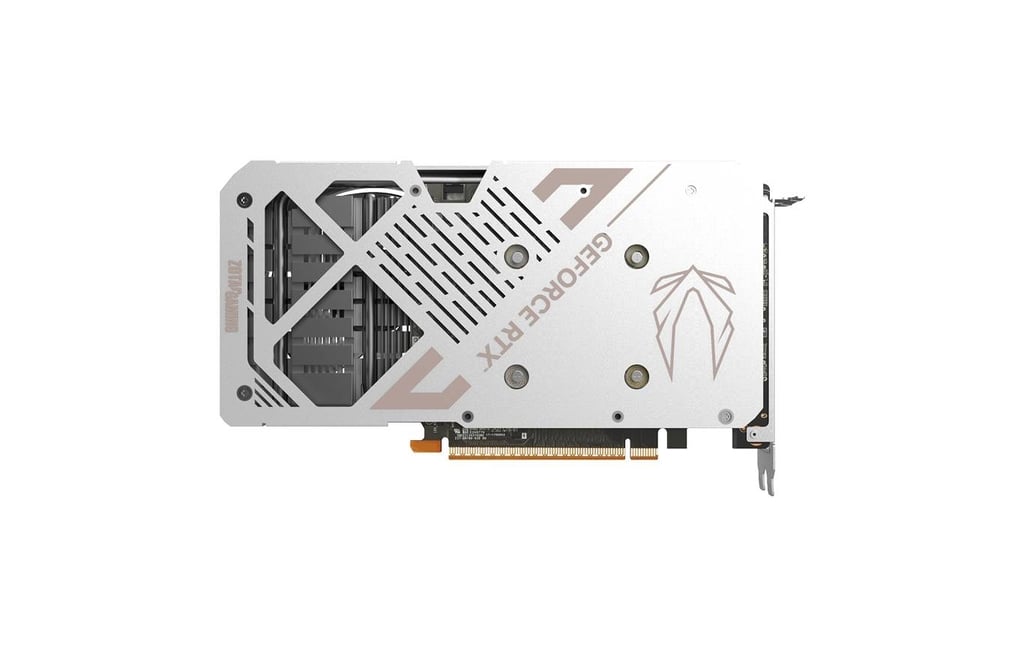

- Metal backplate and BladeLink cooling fans
- All-new FireStorm Utility (downloadable)
- 8-pin PCIe power connector
- Supports quad display output
Product Specifications
| GPU | NVIDIA GeForce RTX 5060 |
| CUDA Cores | 3840 |
| Video Memory | 8GB GDDR7 |
| Memory Bus | 128-bit |
| Engine Clock | 2527 MHz |
| Memory Clock | 28 Gbps |
| PCI Express | PCI Express 5.0 x8 |

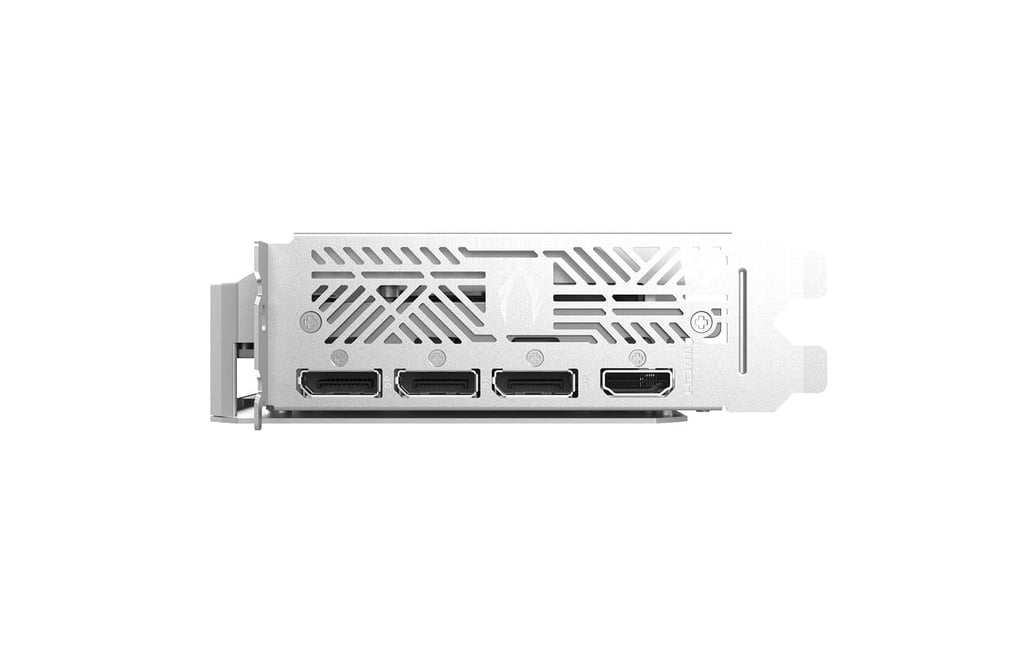

| Display Outputs | 3 x DisplayPort 2.1b (4K 480Hz/8K 165Hz with DSC), 1 x HDMI 2.1b (4K 480/8K 120Hz) |
| HDCP Support | 2.3 |
| Multi Display | Quad Display |
| Recommended PSU | 550W |
| Power Consumption | 145W |
| Power Input | 1 x 8-pin |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Cooling | Air-Cooled BladeLink Fans |
| Slot Size | 2 |
| SLI | No |
| Supported OS | Windows 11/10 64-bit (v1809 or later) |
| Card Dimensions | 220.5 x 120.25 x 41.6 mm (8.7" x 4.7" x 1.6") |
| Accessories | User Manual |
