MSI

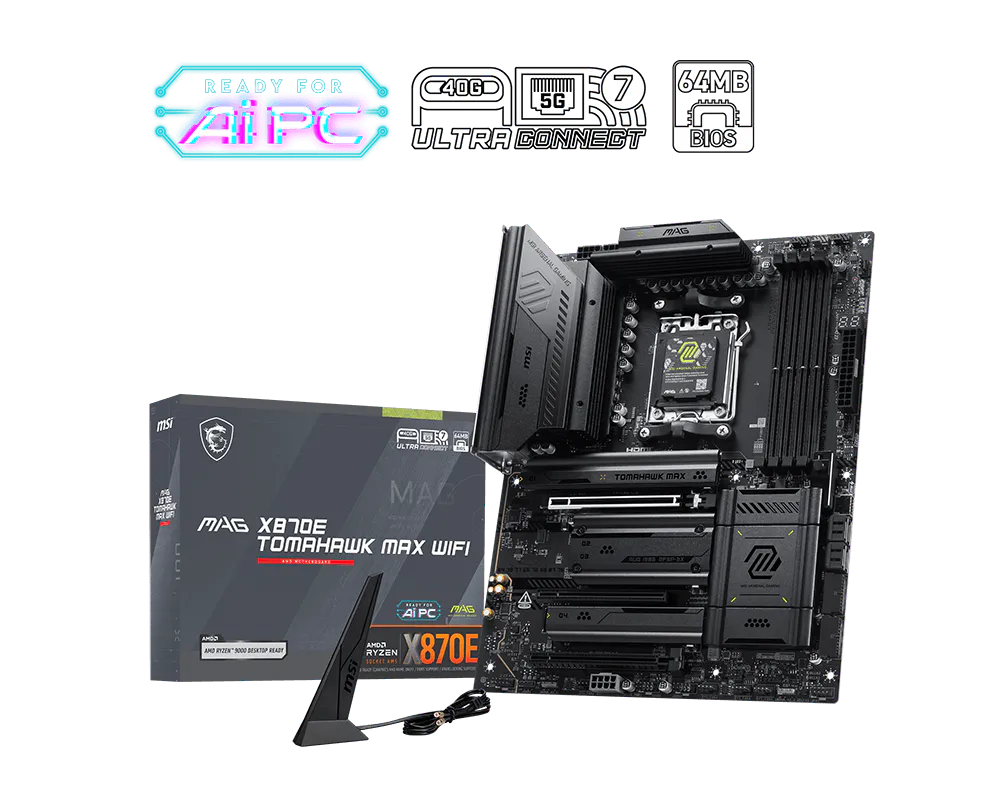

MSI MAG X870E Tomahawk MAX WiFi

BND 549.00

In stock!

Estimated delivery: Aug 27 - Aug 31

Product Information

• AMD AM5 Platform: Ready for AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors to deliver maximum gaming performance.

• Robust Power Delivery: Features a flagship 14+2+1 digital power phase design with 80A Smart Power Stage to sustain high-end processor workloads.

• Ultra-Fast Connectivity: Equipped with Wi-Fi 7, 5G LAN, dual USB 40Gbps Type-C ports, and PCIe 5.0 expansion slots for rapid data transfer.

• EZ DIY Features: Toolless M.2 installation, EZ PCIe Release, EZ Antenna, and a pre-installed I/O shield make PC assembly straightforward and hassle-free.

• Advanced Thermal Management: Built with extended heatsinks, 7W/mK thermal pads, and EZ M.2 Shield Frozr II to prevent thermal throttling under heavy loads.

• AI PC Ready: Integrated AI Engine, AI LAN Manager, and Frozr AI Cooling automatically optimize system settings, fan speeds, and network traffic.

Product Summary

MSI MAG X870E Tomahawk MAX WiFi motherboard delivers exceptional power and durability for gaming builds. Featuring 14+2+1 power phases, PCIe 5.0 speeds, Wi-Fi 7, 5G LAN, and toolless EZ DIY components, it provides a stable, high-speed foundation for AMD Ryzen™ 9000 series processors.

View details

Product Specifications

Warranty Information

Reviews

Specification	Details
Chipset	AMD X870E
CPU Socket	Socket AM5
CPU Support	AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Memory Capacity	4x DDR5 UDIMM slots, maximum capacity up to 256GB
Memory Speeds	Up to DDR5 8400+ (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Supports EXPO, CUDIMM
PCIe Expansion Slots	1x PCIe 5.0 x16 slot (PCI_E1), 1x PCIe 3.0 x1 slot (PCI_E2), 1x PCIe 4.0 x4 slot (PCI_E3)
Onboard Graphics Outputs	1x HDMI 2.1 (Up to 8K 60Hz), 2x USB4 Type-C / DisplayPort 1.4 (Up to 4K 60Hz)
Storage Support	4x M.2 slots (2x PCIe 5.0 x4, 2x PCIe 4.0 x4), 4x SATA 6Gb/s ports
RAID Support	SATA: RAID 0, 1, 10; M.2 NVMe: RAID 0, 1, 5 (Ryzen 9000 only), 10
Networking	1x Realtek® 8126 5G LAN, Wi-Fi 7 (up to 5.8Gbps across 2.4GHz/5GHz/6GHz bands)
Bluetooth	Bluetooth® 5.4
Audio	Realtek® ALC4080 Codec, 7.1-Channel USB High Performance Audio, S/PDIF Output
Rear USB Ports	2x USB 40Gbps Type-C, 1x USB 10Gbps Type-C, 2x USB 10Gbps Type-A, 3x USB 5Gbps Type-A, 4x USB 2.0
Front Panel USB Headers	1x USB 20Gbps Type-C (27W PD support), 4x USB 5Gbps Type-A, 4x USB 2.0
Power Connectors	1x 24-pin ATX main power, 2x 8-pin CPU power, 1x 8-pin PCIe supplemental power
Cooling & Fan Headers	1x CPU Fan, 1x Combo Fan (Pump/Sys), 6x System Fan headers
Lighting Connectors	3x Addressable V2 RGB LED connectors, 1x RGB LED connector
DIY & Debug Features	Toolless EZ M.2 Shield Frozr, EZ PCIe Release, EZ Debug LED, EZ Digit Debug LED, Pre-Installed I/O Shield, Clear CMOS Button, Flash BIOS Button
PCB Construction	ATX Form Factor (243.84mm x 304.8mm), 8-layer server-grade PCB with 2oz copper
Operating System Support	Windows® 11 64-bit

Product Warranty: 1 Year

Warranty covers defects or dead-on-arrival items with original receipt and packaging. It excludes damage from misuse, power issues, unauthorized repairs, and software/data.
To claim, contact us within the warranty period with all accessories and packaging. Warranty is non-transferable and for the original buyer only.
For questions, contact us or check our warranty information.
