Model
|
MAG X870E TOMAHAWK WIFI
|
|
Form Factor
|
ATX
|
|
Chipset
|
AMD X870E
|
|
CPU Support
|
AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
|
|
CPU Socket
|
AM5
|
|
Power Design
|
14+2+1 Duet Rail Power System, dual 8‑pin CPU power connectors, Core Boost, Memory Boost, 8‑layer PCB with 2oz thickened copper
|
|
Memory Slots
|
4x DDR5 UDIMM
|
|
Max Memory Capacity
|
256GB
|
|
Memory Type
|
DDR5, Non‑ECC, Un‑buffered, Dual‑Channel
|
|
Memory Speeds (OC)
|
DDR5 8400–5600 MT/s (OC)
|
|
Memory Speeds (JEDEC)
|
DDR5 5600–4800 MT/s
|
|
Ryzen 9000 OC Speeds
|
1DPC 1R: up to 8400+ MT/s; 1DPC 2R: up to 6400+ MT/s; 2DPC 1R: up to 6400+ MT/s; 2DPC 2R: up to 6400+ MT/s
|
|
Memory Features
|
Supports AMD EXPO, AMD POR, Dual‑Channel mode, CUDIMM (Clock Driver bypass mode only)
|
|
Onboard Graphics Outputs*
|
1x HDMI 2.1 FRL (up to 8K@60Hz); 2x USB4 Type‑C with DP 1.4 HBR3 (up to 4K@60Hz)
|
|
PCIe Slots
|
3x PCIe x16 physical slots
|
|
PCI_E1 (from CPU)
|
PCIe 5.0 x16 (Ryzen 9000/7000); PCIe 4.0 x8 (Ryzen 8700/8600/8400); PCIe 4.0 x4 (Ryzen 8500/8300)
|
|
PCI_E2 (from Chipset)
|
PCIe 3.0 x1
|
|
PCI_E3 (from Chipset)
|
PCIe 4.0 x4
|
|
Audio Codec
|
Realtek ALC4080
|
|
Audio Channels
|
7.1‑Channel USB High Performance Audio, Audio Boost 5
|
|
Audio Features
|
Up to 32‑bit / 384kHz playback (front panel), S/PDIF output
|
|
M.2 Slots
|
4x M.2
|
|
M.2_1 (from CPU)
|
PCIe 5.0 x4 (Ryzen 9000/7000), PCIe 4.0 x4 (Ryzen 8000); supports 22110/2280
|
|
M.2_2 (from CPU)
|
PCIe 5.0 x4 (Ryzen 9000/7000), PCIe 4.0 x4 (Ryzen 8700/8600/8400); 2280/2260; disabled on Ryzen 8500/8300
|
|
M.2_3 (from Chipset)
|
PCIe 4.0 x4; 2280/2260
|
|
M.2_4 (from Chipset)
|
PCIe 4.0 x4; 2280/2260
|
|
M.2 / USB4 Bandwidth Note
|
Rear USB 40Gbps Type‑C and M2_2 share PCIe 5.0 x4; both run PCIe 5.0 x2 when M2_2 is populated. BIOS can set M2_2 to PCIe 5.0 x4 but disables USB 40Gbps Type‑C. USB4 host uses up to PCIe 4.0 x4.
|
|
SATA Ports
|
4x SATA 6Gb/s
|
|
RAID (SATA)
|
RAID 0, 1, 10
|
|
RAID (M.2 NVMe)
|
RAID 0, 1, 5*, 10** (*Ryzen 9000 only; **Ryzen 9000/7000 only)
|
|
USB (Rear)
|
4x USB 2.0; 3x USB 5Gbps Type‑A; 2x USB 10Gbps Type‑A; 1x USB 10Gbps Type‑C; 2x USB 40Gbps Type‑C
|
|
USB (Front / Internal)
|
4x USB 2.0; 4x USB 5Gbps Type‑A; 1x USB 20Gbps Type‑C header
|
|
LAN
|
1x Realtek 8126 5G LAN
|
|
Wireless LAN
|
Wi‑Fi 7, MU‑MIMO TX/RX, 2.4/5/6GHz (320MHz) up to 5.8Gbps, 802.11 a/b/g/n/ac/ax/be
|
|
Bluetooth
|
Bluetooth 5.4 (version may update via chipset vendor)
|
|
Cooling / Fan Headers
|
1x CPU Fan; 1x Combo Fan (Pump/Sys); 6x System Fan
|
|
Power Connectors
|
1x 24‑pin ATX_PWR; 2x 8‑pin CPU_PWR; 1x 8‑pin PCIE_PWR
|
|
Internal Headers
|
1x EZ Conn-header; 2x Front Panel; 1x Chassis Intrusion; 1x Front Audio; 3x ARGB V2 (JARGB_V2); 1x RGB (JRGB); 1x TPM (TPM 2.0); internal USB headers as above
|
|
RGB / LED Features
|
3x Addressable V2 RGB headers; 1x RGB header
|
|
Debug / Status LEDs
|
4x EZ Debug LED; 1x EZ Digit Debug LED
|
|
Back Panel I/O
|
Clear CMOS Button, Flash BIOS Button, HDMI, Wi‑Fi / Bluetooth antenna connectors, 5G LAN, multiple USB 2.0/5Gbps/10Gbps/40Gbps ports, audio connectors
|
|
DIY Features
|
EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release, EZ Antenna, Frozr Guard extended heatsinks, MOSFET and choke thermal pads
|
|
Operating System Support
|
Windows 11 64‑bit
|
|
Special Notes
|
6GHz Wi‑Fi 7 and BT 5.4 availability depend on OS (Windows 11 24H2) and regional regulations; some CPU‑dependent PCIe/M.2 behaviors as noted above
|

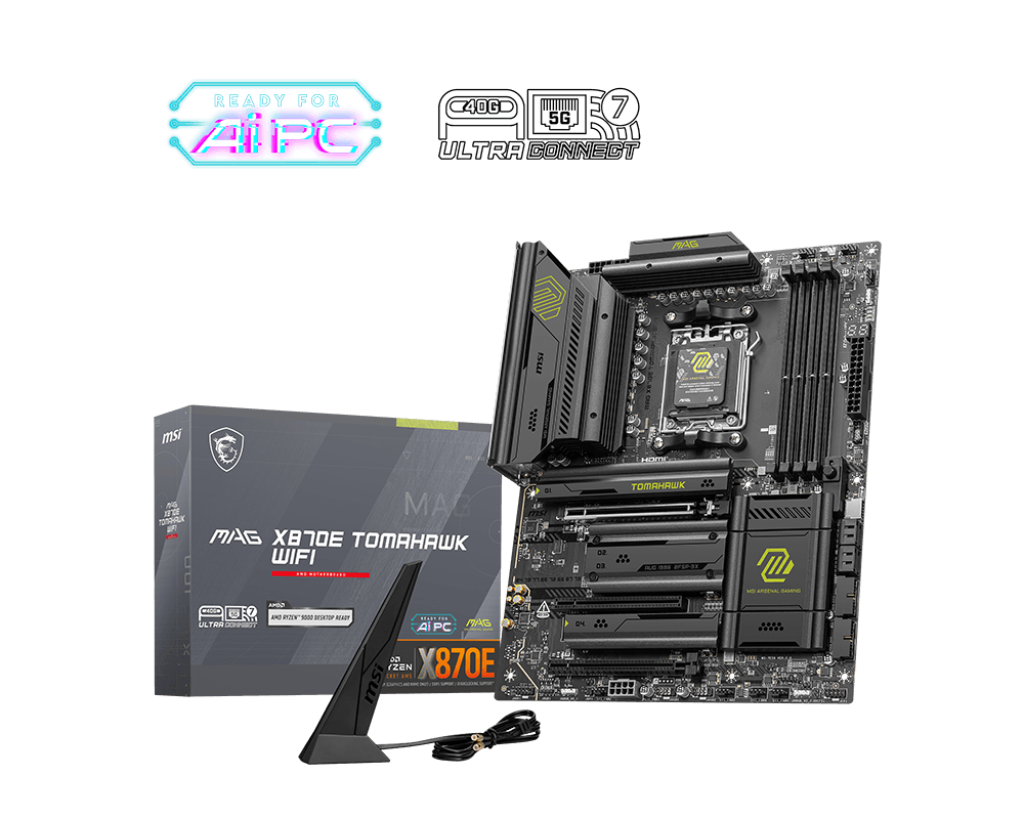

MSI MAG X870E Tomahawk WiFi
N/A / 1 Year WarrantyGet notified when this item is back in stock
