Hyte Y70
- Modern dual‑chamber ATX mid‑tower with 3‑piece panoramic glass for showcase builds
- Supports massive 4‑slot vertical GPUs with added airflow clearance to the glass
- Included luxury PCIe 4.0 x16 riser + color‑matched canopy; supports half‑height PCIe cards behind the GPU
- Ginormous cooling: up to dual 360 mm radiators (side/top), bottom “cold floor” intake, rear fan slot; up to 10 fans total
- Side radiator support up to 360 mm length and 125 mm thickness; top up to 360 mm and 68 mm thickness
- Bottom intake fits 3×120 mm or 2×140 mm fans up to 32 mm thick to feed the GPU fresh air
- Over 180 mm clearance to side glass for flexible air and water‑cooling layouts
- Y70 Touch Infinite only: integrated 14.9" IPS capacitive touchscreen, 682×2560 (2.5K), 60 Hz, 10‑point multi‑touch; 3rd‑gen panel with 43% higher brightness; HYTE Nexus software
- Clean cable management: L‑shaped molded rubber grommet, routed channels, tie‑downs, reusable Velcro
- Tool‑less top and side panels; floating storage sleds eject from rear for easy maintenance
- Unified aesthetic in 4 colorways; “Milky” editions (Strawberry, Blueberry, Taro) with included milky canopies
| Specifications | Details |
|---|---|
| Type | Dual Chamber Mid-Tower ATX Case |
| Exterior Dimensions | 470 x 320 x 470 mm |
| Volume (L) | 70.7 |
| Motherboard Sizes | ITX, mATX, ATX, EATX |
| Expansion Slots | 7 half + 4 full height |
| Riser Cable Included | Yes, PCIE 4.0 x 16 |
| I/O | 1x USB-C 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 1x 3.5mm Audio/Mic Combo Jack |
| Dust Filters | Top, Side, Bottom |
| Top Fans | 3x 120 mm / 2x 140 mm |
| Top Radiator | 120-360, 140-280 @ 68 mm thick |
| Rear Fans | 1x 120/140 mm |
| Rear Radiator | 1x 120/140 mm |
| Side Fans | 3x 120 mm / 2x 140 mm |
| Side Radiator | 120-360, 140-280 @ 125 mm thick |
| Bottom Fans | 3x 120 mm / 2x 140 mm @ 32 mm thick |
| Max Video Card Length | 422 mm |
| Max Video Card Thickness | 105 mm |
| Max CPU Cooler Height | 180 mm |
| Max PSU Length | 235 mm |
| Storage | 2x 3.5" HDD or 4x 2.5" SSD |

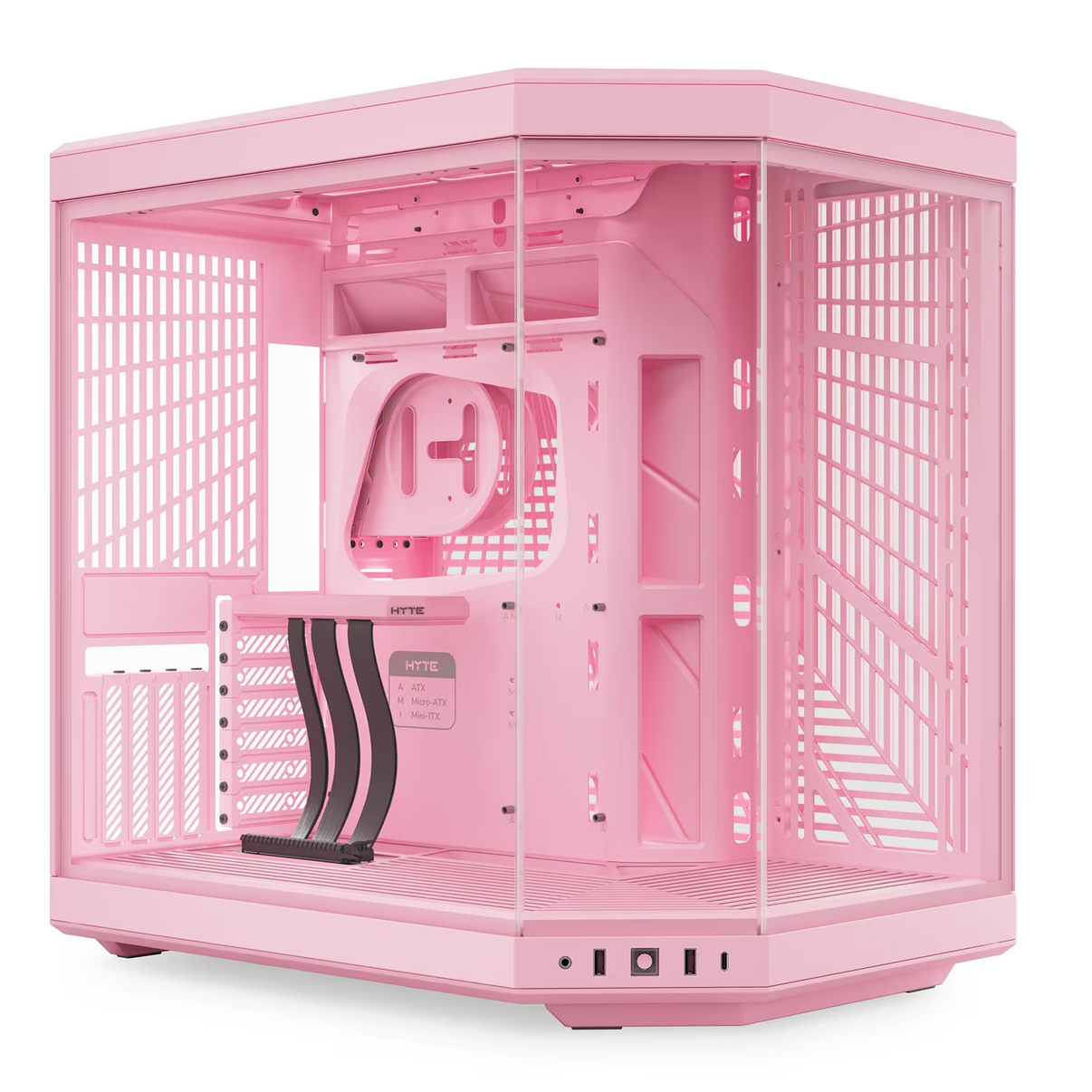

Hyte Y70 (Strawberry Milk)
110716 / 3 Months WarrantyGet notified when this item is back in stock
