Phanteks Evolv S2
- ATX mid-tower PC case with a premium glass and steel construction
- Tempered glass panels on three sides for a panoramic view and integrated D-RGB lighting
- Four pre-installed M25 D-RGB fans for outstanding cooling and airflow
- Accommodates up to 395 mm graphics cards and E-ATX motherboards (up to 280 mm wide)
- Supports water cooling, including 240mm and 360mm radiators on top
- Sleek, cable-free aesthetics with no visible screws and screen-printed cables
- Modern connectivity: USB-C 3.2 Gen2x2, USB 3.0, and audio combo port
- Flexible interior layout with 7 PCI slots and two versatile storage bays
- Vertical GPU mount support (optional bracket required)
- Designed for both office and gaming builds
Product Specifications
| Product Name | Phanteks Evolv S2 (White) |
| Brand / Model | Phanteks / PH-ES524S2_DWT01 |
| Case Format | Mid Tower |
| Material | Steel, Tempered Glass, ABS |
| Motherboard Support | ATX, Micro ATX, E-ATX (up to 280mm), Mini ITX |
| Max GPU Length | 395 mm |
| Max CPU Cooler Height | 175 mm |
| Max PSU Length | 210 mm |
| Expansion Slots | 7 PCI |
| Storage Bays | 2 (2.5"/3.5") |
| Fan Support | Rear: 1x120mm (1 pre-installed) |
| Top: 3x120mm (slots, no fans provided) | |
| Bottom: 3x120mm (3 pre-installed) | |
| Water Cooling | Top: 240mm / 360mm radiator |
| Front/Side/Rear: N/A | |
| I/O Ports | 1x USB 3.2 Type-C, 2x USB 3.0, 1x 3.5mm Audio Jack |
| Dimensions (WxHxD) | 230 x 525 x 455 mm |
| Weight | 5.5 kg |
| ARGB/Lighting | Integrated D-RGB lighting |
| Power Supply Included | No |
| Color | Black |
| Special Features | No visible screws, panoramic “fish tank” view |

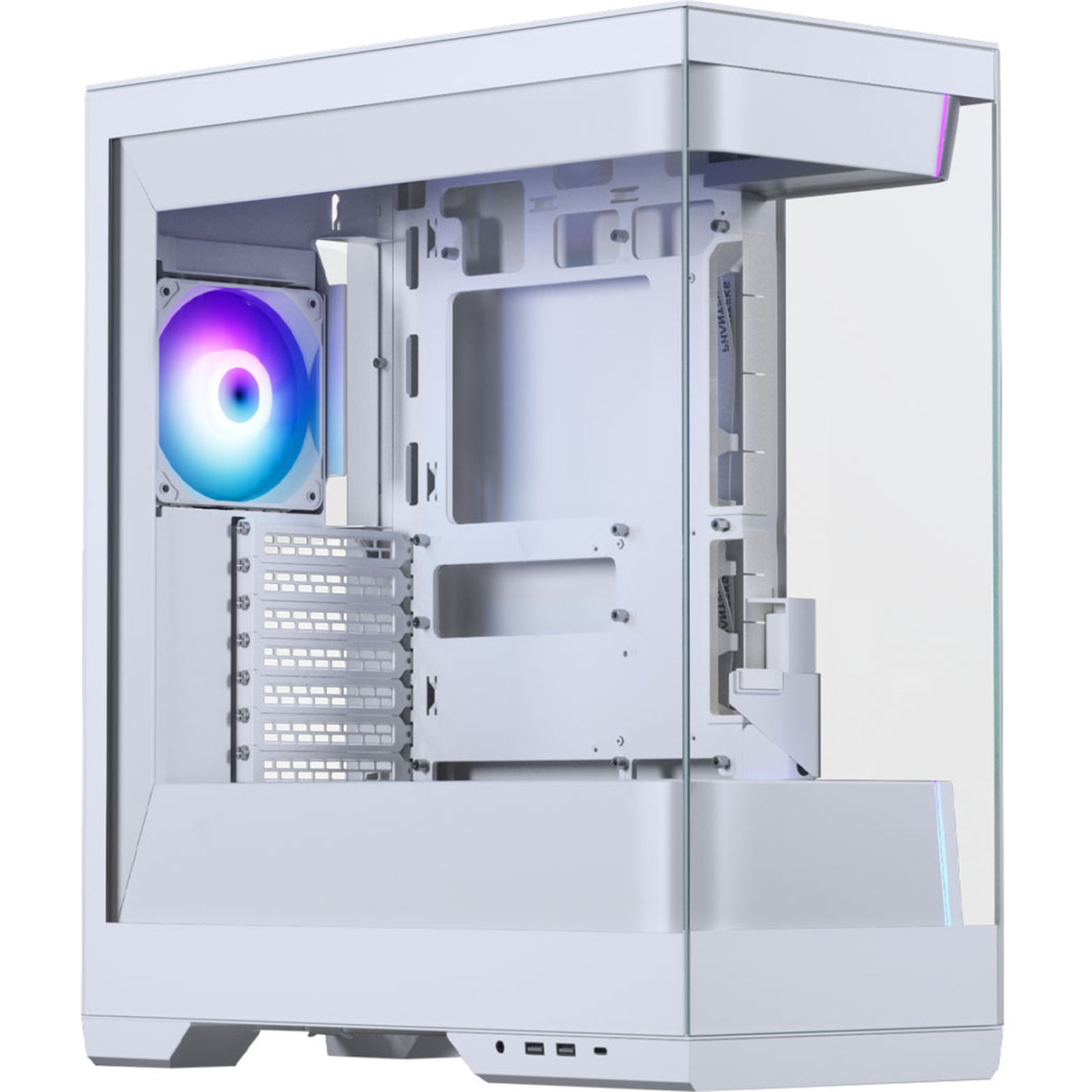

Phanteks Evolv S2 (White)
112362 / 3 Months WarrantyGet notified when this item is back in stock
