| Specification | Detail |

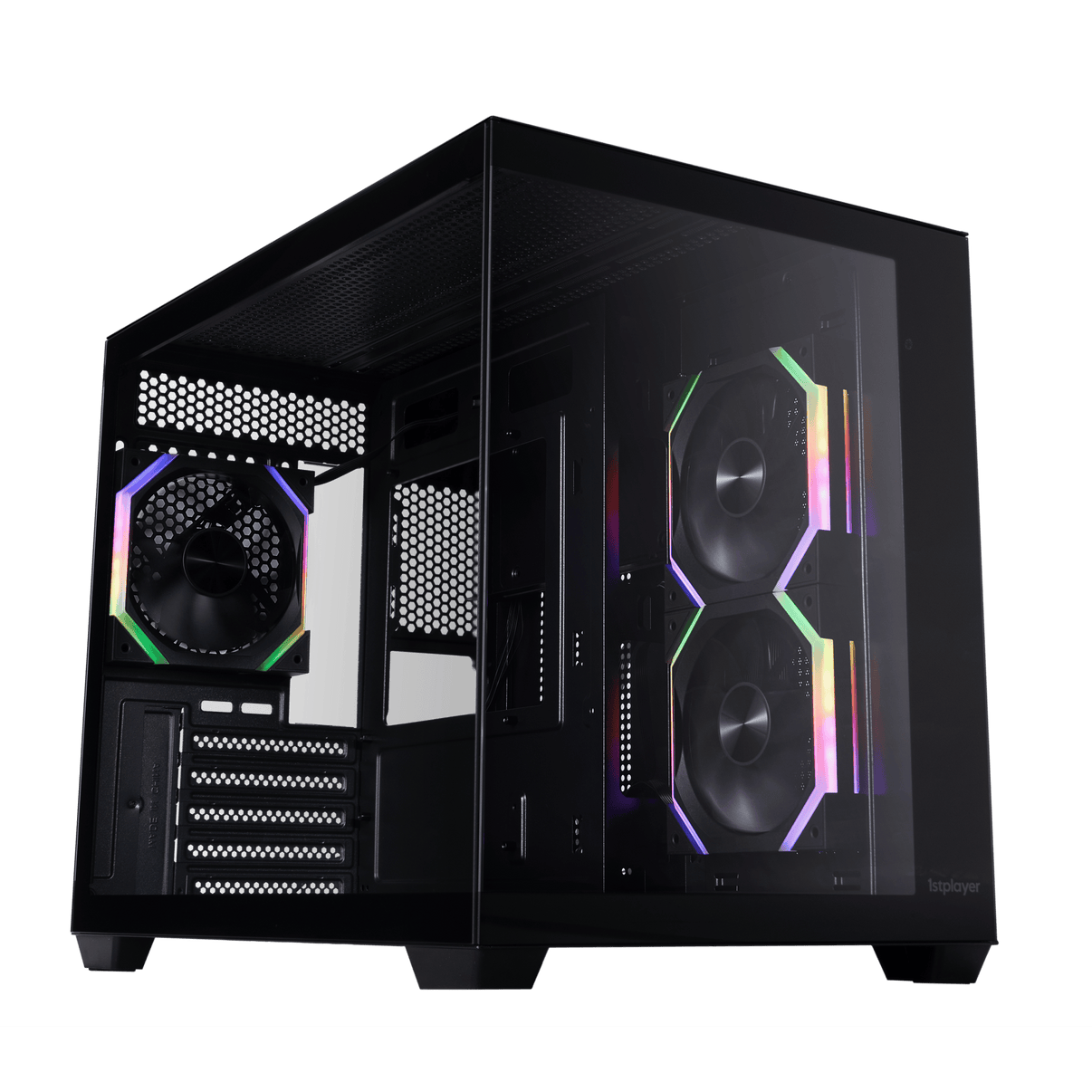

| Model | BV6 |
| Form Factor | M-ATX / ITX |
| Chassis Structure Dimensions (L x W x H) | 425 × 275 × 336 mm |
| Product Dimensions (L x W x H) | 425 × 275 × 354 mm |
| Package Dimensions (L x W x H) | 395 × 326 × 490 mm |
| Structure Thickness | 0.5 mm |
| Materials | SPCC, Tempered Glass, Plastic |
| Drive Bays | 3.5" HDD: 1 + 2.5" SSD: 2 |
| CPU Cooler Max Height | 160 mm |
| GPU Max Length | 410 mm |
| I/O Panel | USB 3.0 x 2 + USB 2.0 x 1 + HD Audio |
| PCI Card Slot | 5 |
| Fan Support (Top) | 3 x 120 mm / 2 x 140 mm |
| Fan Support (Bottom) | 3 x 120 mm |
| Fan Support (Rear) | 1 x 120 mm |
| Fan Support (Side) | 2 x 120 mm |
| Liquid Cooling Support (Top) | 360 mm / 240 mm |
| Liquid Cooling Support (Side) | 240 mm |
| Power Supply Support | Bottom mounted (210 mm max length) |
| Net Weight (N.W.) | 4.3 kg ± 10% |
| Gross Weight (G.W.) | 5.5 kg ± 10% |
