xOVERVIEW

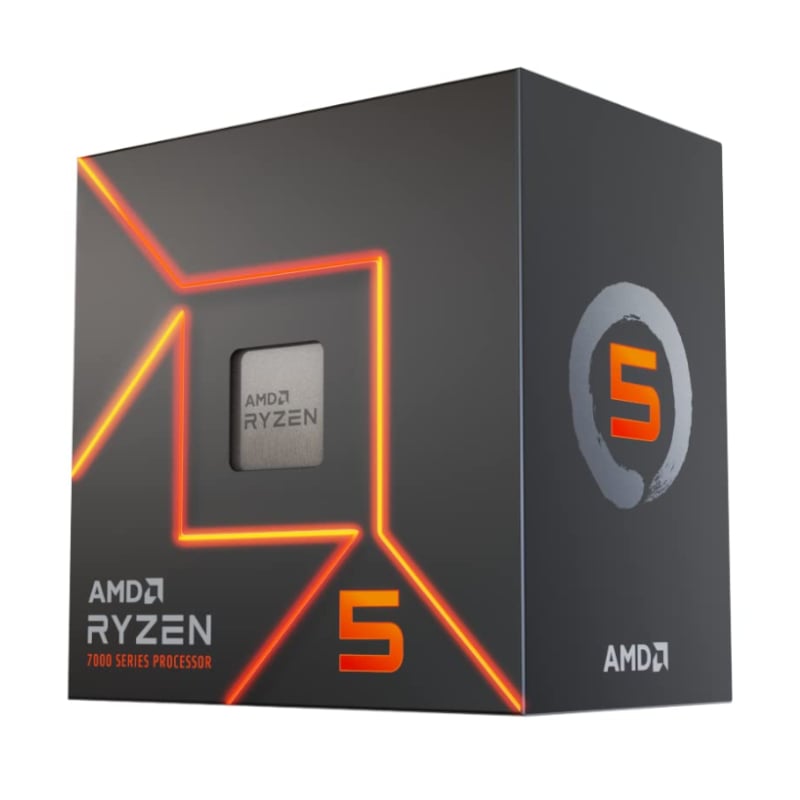

The AMD Ryzen 5 7500F is a 6-core desktop CPU that will be available in July 2023 for $179. It is a Ryzen 5 processor that uses the Zen 4 (Raphael) architecture and Socket AM5. The core-count is essentially doubled, to 12 threads, thanks to AMD Simultaneous Multithreading (SMT). The Ryzen 5 7500F features 32 MB of L3 cache and runs at 3.7 GHz by default, with the ability to turbo to 5 GHz depending on the workload. AMD is producing the Ryzen 5 7500F using a 5 nm manufacturing process with 6,570 million transistors. The chip's silicon die is manufactured at TSMC's foundry rather than AMD's.
PRODUCT SPECIFICATIONS
| GENERAL |
|
Regional Availability
|
Global
|
| Platforms | Desktop |
| Product Family |
AMD Ryzen™ Processors
|
| Product Line |
AMD Ryzen™ 5 Processors
|
|
# of CPU Cores
|
6 |
|
# of Threads
|
12 |
|
Max. Boost Clock
|
Up to 5.0GHz
|
|
Base Clock
|
3.7GHz |
|
L1 Cache
|
384KB
|
|
L2 Cache
|
6MB |
|
L3 Cache
|
32MB |
|
Default TDP
|
65W
|
|
Processor Technology for CPU Cores
|
TSMC 5nm FinFET |
| Unlocked for Overclocking | Yes |
|
CPU Socket
|
AM5 |
|
Thermal Solution (PIB)
|
AMD Wraith Stealth
|
|
Thermal Solution (MPK)
|
AMD Wraith Stealth
|
|
Max. Operating Temperature (Tjmax)
|
95°C
|
|
Launch Date
|
22/7/2023 |
|
OS Support
|
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
|
| CONNECTIVITY |
|
PCI Express® Version
|
PCIe 5.0
|
|
System Memory Type
|
DDR5
|
|
Memory Channels
|
2
|
|
Max Memory Speed
|
2x1R
DDR5-5200 2x2R
DDR5-5200 4x1R
DDR5-3600 4x2R
DDR5-3600 |
| KEY FEATURES |
Support Technologies:
|
