AMD

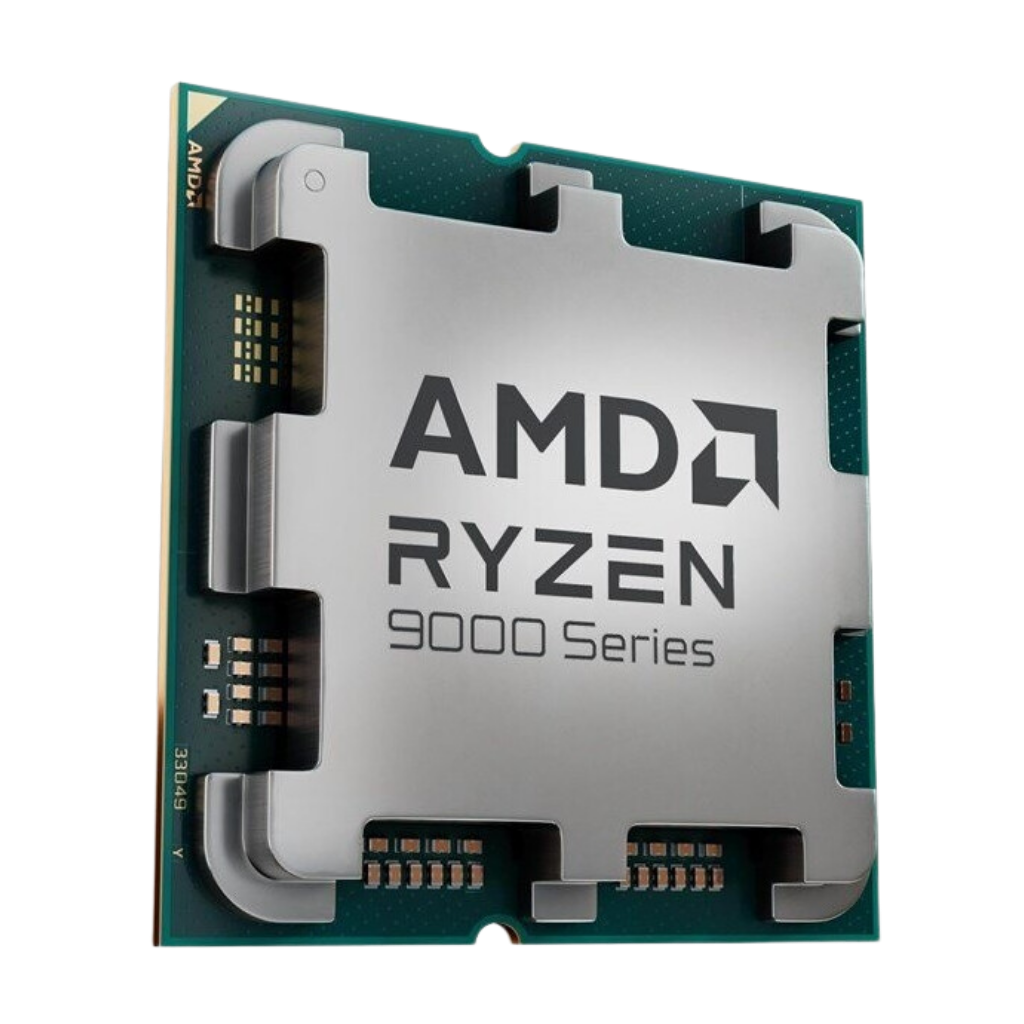

AMD Ryzen 9 9950X3D (Tray)

BND 999.00

Hurry up! Stock running low!

Estimated delivery: Aug 15 - Aug 19
Product Information

• Zen 5 Architecture: Experience elite computing performance with 16 cores and 32 threads engineered for high-end gaming and heavy workstation tasks.

• AMD 3D V-Cache Technology: Eliminate game-loading bottlenecks with a massive 128 MB L3 cache that delivers ultra-high framerates.

• Up to 5.7 GHz Max Boost: Harness explosive clock speeds out of the box with Precision Boost 2 performance tuning.

• PCIe 5.0 & DDR5 Ready: Power next-gen GPUs and ultra-fast storage with high-speed DDR5 memory support.

• Precision Overclocking: Unlock maximum potential using AMD EXPO, Precision Boost Overdrive, and Curve Optimizer voltage controls.

• Socket AM5 Ecosystem: Upgrade easily on motherboards spanning A620, B650, X670, B850, and X870 series chipsets.
Product Summary

Engineered for elite gamers and creators, the AMD Ryzen™ 9 9950X3D combines 16 Zen 5 cores with revolutionary 2nd Gen 3D V-Cache™ technology. Experience blistering 5.7 GHz boost clock speeds, immense multi-threaded horsepower, and unprecedented gaming efficiency built for the cutting-edge Socket AM5 platform.
Pairs well with
AMD Ryzen 9 9950X3D (Tray)
BND 999.00
N/A / 1 Year Warr...
Related categories
View details
Specification Details
Model AMD Ryzen™ 9 9950X3D (Tray)
Family / Series Ryzen / Ryzen 9000 Series
Market Segment Enthusiast Desktop
Form Factor Desktop (Tray Processor)
Architecture Zen 5 (Granite Ridge AM5)
CPU Cores / Threads 16 Cores / 32 Threads
Base Clock 4.3 GHz
Max Boost Clock Up to 5.7 GHz
L1 Cache 1280 KB
L2 Cache 16 MB
L3 Cache 128 MB (2nd Gen 3D V-Cache™)
Total Cache 144 MB
Default TDP 170W
CPU Core Process TSMC 4nm FinFET
I/O Die Process TSMC 6nm FinFET
Die Count 3
CPU Socket AM5
Supporting Chipsets X870E, X870, B850, B840, X670E, X670, B650E, B650, A620
Overclocking Support Unlocked
Overclocking Technologies AMD EXPO™, Precision Boost Overdrive (PBO), Curve Optimizer
CPU Boost Technology Precision Boost 2
System Memory Type DDR5 (UDIMM)
Memory Channels 2
Max Memory Capacity Up to 256 GB
Max Memory Speeds 2x1R DDR5-5600, 2x2R DDR5-5600, 4x1R DDR5-3600, 4x2R DDR5-3600
ECC Memory Support Yes (Requires motherboard support)
PCI Express® Version PCIe® 5.0
Native PCIe® Lanes (Total/Usable) 28 / 24
NVMe Support Boot, RAID 0, RAID 1, RAID 5, RAID 10
Integrated Graphics AMD Radeon™ Graphics
Graphics Core Count & Speed 2 Cores @ 2200 MHz
Display Output USB Type-C® DisplayPort™ Alternate Mode
Thermal Solution Not Included (High-performance liquid cooler recommended)
Max Operating Temp (Tjmax) 95°C
OS Support Windows 11 (64-Bit), Windows 10 (64-Bit), RHEL x86 64-Bit, Ubuntu x86 64-Bit
