APNX V2 (Black)

BND 199.00

Hurry up! Stock running low!

Estimated delivery: Oct 02 - Oct 06

Product Information

• X-Pand Flow Design: Optimizes GPU and PSU thermal performance by expanding space behind the motherboard tray to support dual radiators up to 360mm and 240mm.

• 86.5% Panoramic View: Showcases internal hardware from all angles using a 3-panel tempered glass display.

• Next-Gen Motherboard Support: Fits reverse-connector motherboards including ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth for clean, cable-free layouts.

• Pre-Installed Fan Hub: Includes a 10-port APNX ARGB PWM Fan Hub 1 to simplify cable management and synchronize lighting.

• Extreme Cooling Capacity: Fits up to 10 fans across 120mm, 140mm, and 160mm mounting locations alongside 4 pre-installed FP3-140 fans.

• Smart Cable Routing: Features silver-accented removable motherboard covers and 99mm of cable depth to conceal wiring

Product Summary

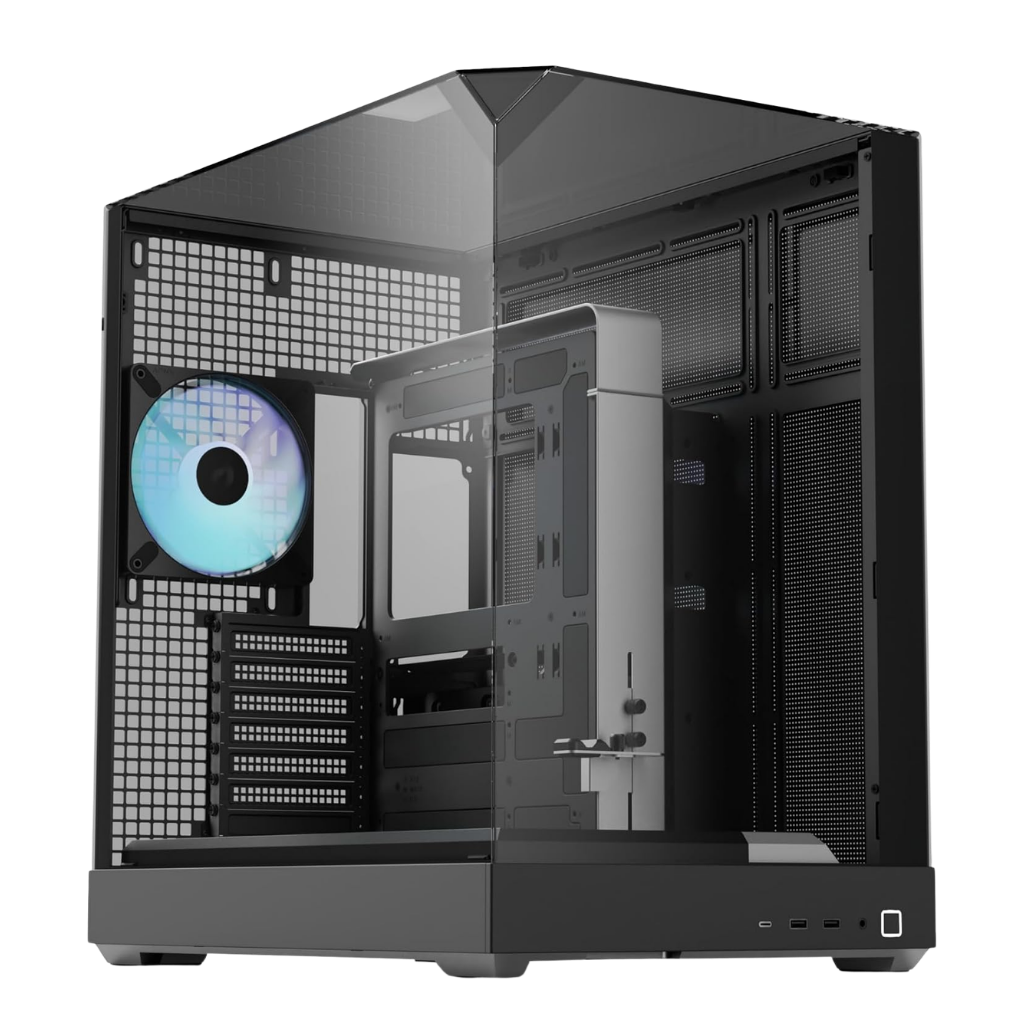

The APNX V2 is a mid-tower PC chassis engineered for maximum airflow and unobstructed viewing. Featuring X-Pand Flow dual-radiator support, an 86.5% panoramic glass design, and reverse-connector motherboard support, it delivers superior thermal management and cable organization for high-performance custom builds.

View details

Product Specifications

Warranty Information

Reviews

Specification	Details
Model	APX-V2-BK-FRB / APX-V2-WT-FRW
Case Type	Mid Tower
Body Material	SGCC Steel
Steel Thickness	0.8mm
Motherboard Compatibility	ATX, Micro ATX, Mini-ITX (Supports ASUS BTF, MSI Project Zero, Gigabyte Project Stealth)
Case Dimensions (D x W x H)	466 x 309 x 500 mm
Internal Capacity	71L
3.5" Drive Bays	1 Max. (1 x 3.5" or 2 x 2.5")
2.5" Drive Bays	4 Max. (2 x 2.5" and 1 x 3.5" / 2 x 2.5")
Expansion Slots	7
GPU Clearance	Up to 445mm (without radiator in front-right position)
CPU Cooler Clearance	Up to 183mm
Power Supply Clearance	ATX PSU up to 270mm (including cables)
Cable Management Depth	99mm
Pre-Installed Fans	4 x FP3-140 Fans (3x Right-Front, 1x Rear)
Included Fan Hub	APNX ARGB PWM Fan Hub 1 (10 Ports)
Fan Support (Right-Front)	3 x 120mm or 3 x 140mm (Max.)
Fan Support (Right-Top)	3 x 120mm (Max.)
Fan Support (Bottom)	3 x 120mm, 3 x 140mm, or 2 x 160mm (Max.)
Fan Support (Rear)	2 x 120mm or 1 x 140mm (Max.)
Radiator Support (Right-Front)	120mm / 140mm / 240mm / 280mm / 360mm
Radiator Support (Right-Top)	120mm / 240mm / 360mm
Radiator Support (Bottom)	120mm / 140mm / 240mm / 280mm / 360mm (Requires bottom fan filter removal)
Radiator Support (Rear)	120mm
Front I/O Ports	1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.2 Gen 1 Type-A, HD Audio & Mic
Net Weight	11.8 kg
Gross Weight	14.2 kg

Product Warranty: 3 Months (Case Fans)

Warranty covers defects or dead-on-arrival items with original receipt and packaging. It excludes damage from misuse, power issues, unauthorized repairs, and software/data.
To claim, contact us within the warranty period with all accessories and packaging. Warranty is non-transferable and for the original buyer only.
For questions, contact us or check our warranty information.
