Arctic

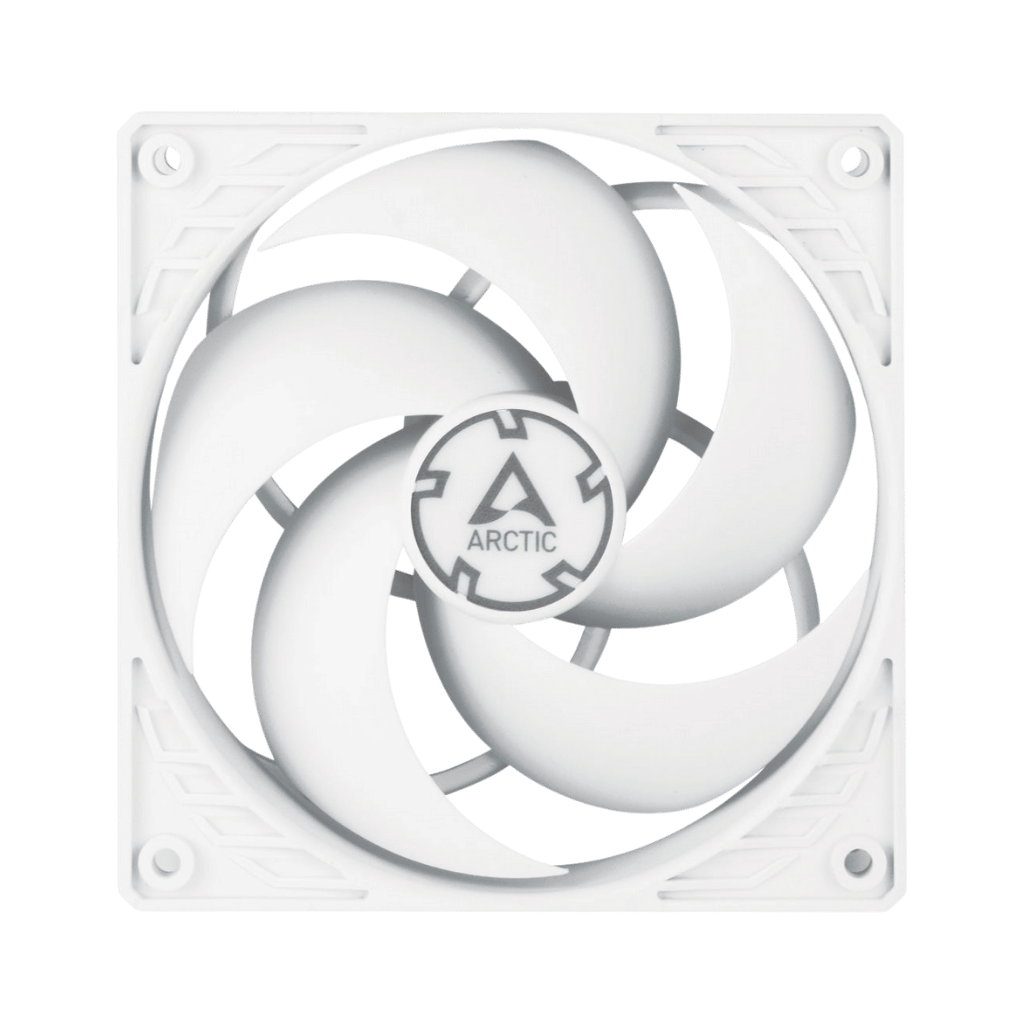

Arctic P12 Max (White)

BND 22.00

In stock!

Estimated delivery: Oct 26 - Oct 28
Product Information
  • Extremely Wide Speed Range: Offers a controllable speed range from 200 rpm up to 3300 rpm, allowing for silent operation when low airflow is needed and maximum performance for demanding cooling scenarios.
  • Maximum Performance: Delivers focused airflow (81.04 cfm) and high static pressure (4.35 mmH2O), making it ideal for heatsinks, radiators, pinholes, and mesh.
  • 0 dB Mode (Zero RPM): The fan speed can be throttled down to a complete standstill via PWM, enabling silent operation during idle periods and engaging maximum performance when required.
  • Enhanced Stability: Features a closed fan-wheel design that distributes force uniformly, ensuring low-vibration rotation and maintaining high static pressure even in high-resistance scenarios.
  • Durable Dual Ball Bearing: Equipped with a high-quality NMB dual ball bearing, ensuring a particularly long service life, especially for continuous operation at high speeds.
  • Improved Smoothness and Reduced Vibration: Utilizes sinus-magnetizing in its motor to create significantly less vibration than regular DC motors, further dampened by rubber pads for maximum smoothness.
Product Summary

The ARCTIC P12 Max is a high-performance 120mm PWM fan with an exceptionally wide speed range (200-3300 rpm) and a 0 dB mode for silent operation at idle. Delivering maximum airflow (81.04 cfm) and static pressure (4.35 mmH2O), it's optimized for heatsinks and radiators. Its durable NMB dual ball bearing and enhanced stability ensure long-term, low-vibration performance, making it ideal for enthusiasts seeking uncompromising cooling.
Arctic P12 Max (White)
BND 22.00
109061 / 6 Months...
Pairs well with
Related categories
View details
Fan Speed
200–3300 rpm (0 rpm under 5% PWM)
Airflow
81.04 cfm
Static Pressure
4.35 mmH2O
Noise Level
0.6 Sone
Operating Ambient Temperature
0—40 °C
MTTF
> 500.000 Hours
Fan Frame
Standard
Control Type
Pulse Width Modulation — PWM
Connector
4-Pin Connector
Fan Bearing
Dual Ball Bearing
Length
120 mm
Width
120 mm
Height
25 mm
Weight
184 g
