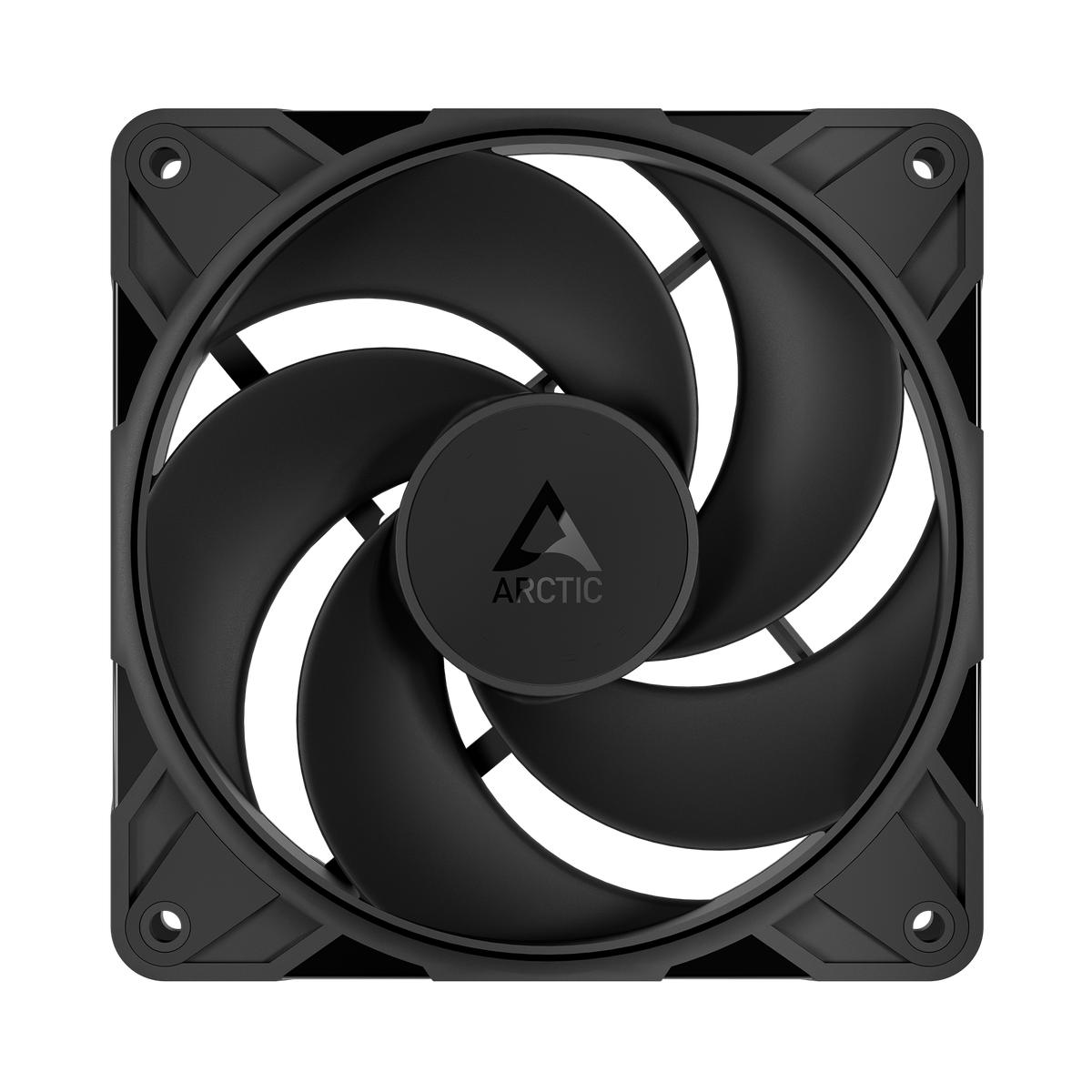

Arctic P12 Pro (Reverse Black)

BND 22.00

Sold out

Out of stock

Estimated delivery: Sep 23 - Sep 27

Product Information

• Reversed Airflow Design: Draws intake air from the back side to maintain clean, unobstructed system aesthetics in custom chassis layouts.

• Extreme Static Pressure: Delivers up to 4.5 mmH₂O static pressure and 73 CFM airflow to push air efficiently through radiators and dense mesh panels.

• Wide PWM Range: Regulates speed dynamically from 500 to 3000 RPM, including a 0 RPM passive mode below 5% PWM for silent operation.

• Daisy-Chain Integration: Features an integrated PWM Sharing Technology (PST) socket to connect multiple fans directly off a single motherboard header.

• SOTA Microcontroller & FDB Bearing: Reduces motor noise and load fluctuations while protecting against inrush currents and reverse polarity.

Product Summary

The Arctic P12 Pro Reverse is engineered for high-performance intake cooling without sacrificing system aesthetics. Featuring reversed airflow blades, high static pressure, advanced Fluid Dynamic Bearings, and PWM daisy-chain capability, it delivers powerful thermal management and ultra-quiet operation for custom PC builds.

View details

Product Specifications

Warranty Information

Reviews

Specification	Details
Model	Arctic P12 Pro Reverse
Airflow Direction	Reversed Airflow (Intake from back side)
Fan Speed	500–3000 RPM (PWM controlled)
0 RPM Mode	Yes (below 5% PWM)
Airflow	73 CFM / 124.03 m³/h
Static Pressure	4.50 mmH₂O
Fan Bearing	Fluid Dynamic Bearing (FDB)
Operating Voltage	12 V DC
Start-Up Voltage	3.5 V DC
Current	0.4 A
Connector	4-Pin Fan Plug + 4-Pin Socket (PST Daisy-Chain)
Cable Length	400 mm + 80 mm Daisy-Chain Cable
Motor Controller	SOTA Microcontroller
Operating Ambient Temperature	0–40 °C
Dimensions (L x W x H)	120 mm x 120 mm x 27 mm
Net Weight	172 g
Packaging Dimensions (W x H x L)	125 mm x 32 mm x 127 mm
Packaging Weight	0.215 kg
