Product Description

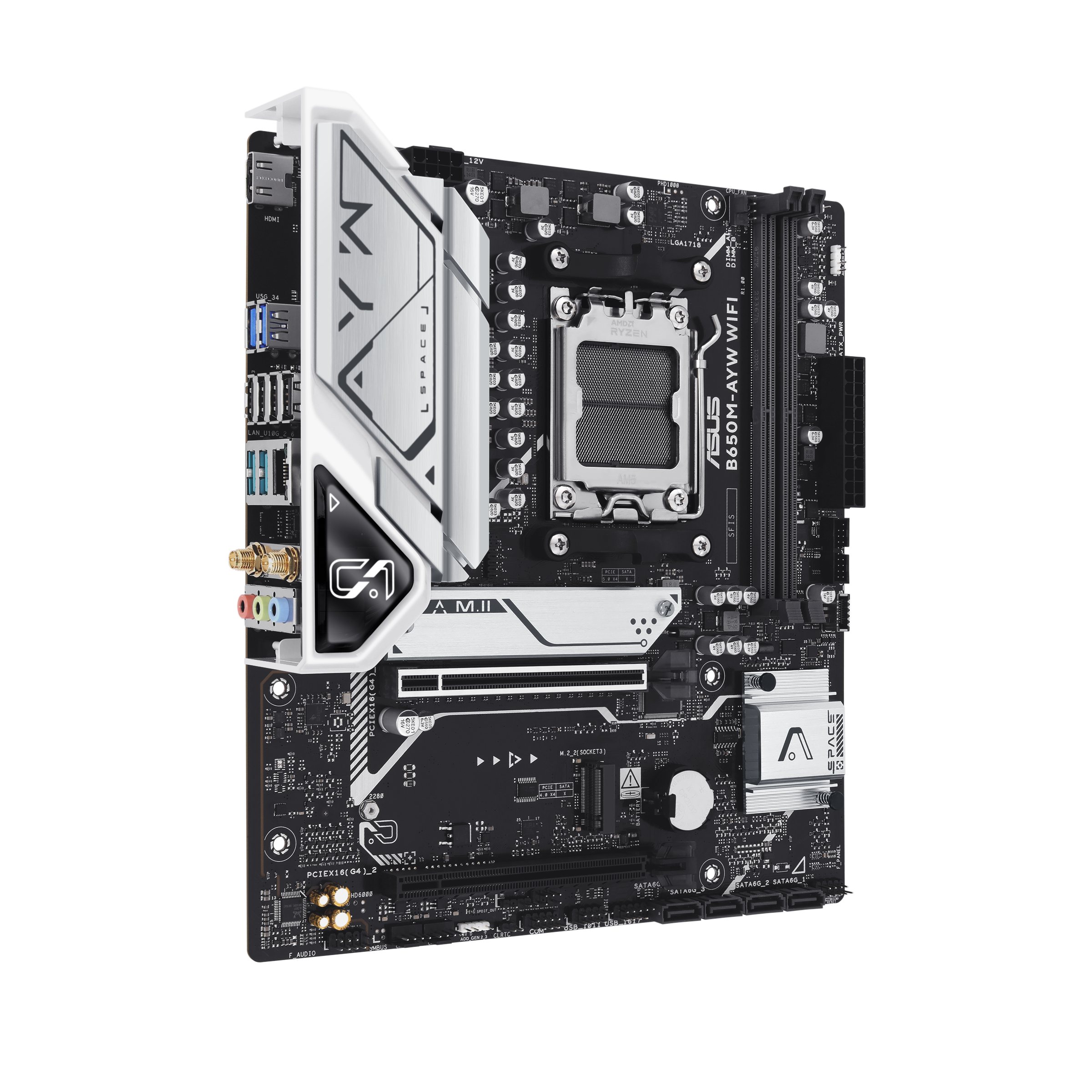

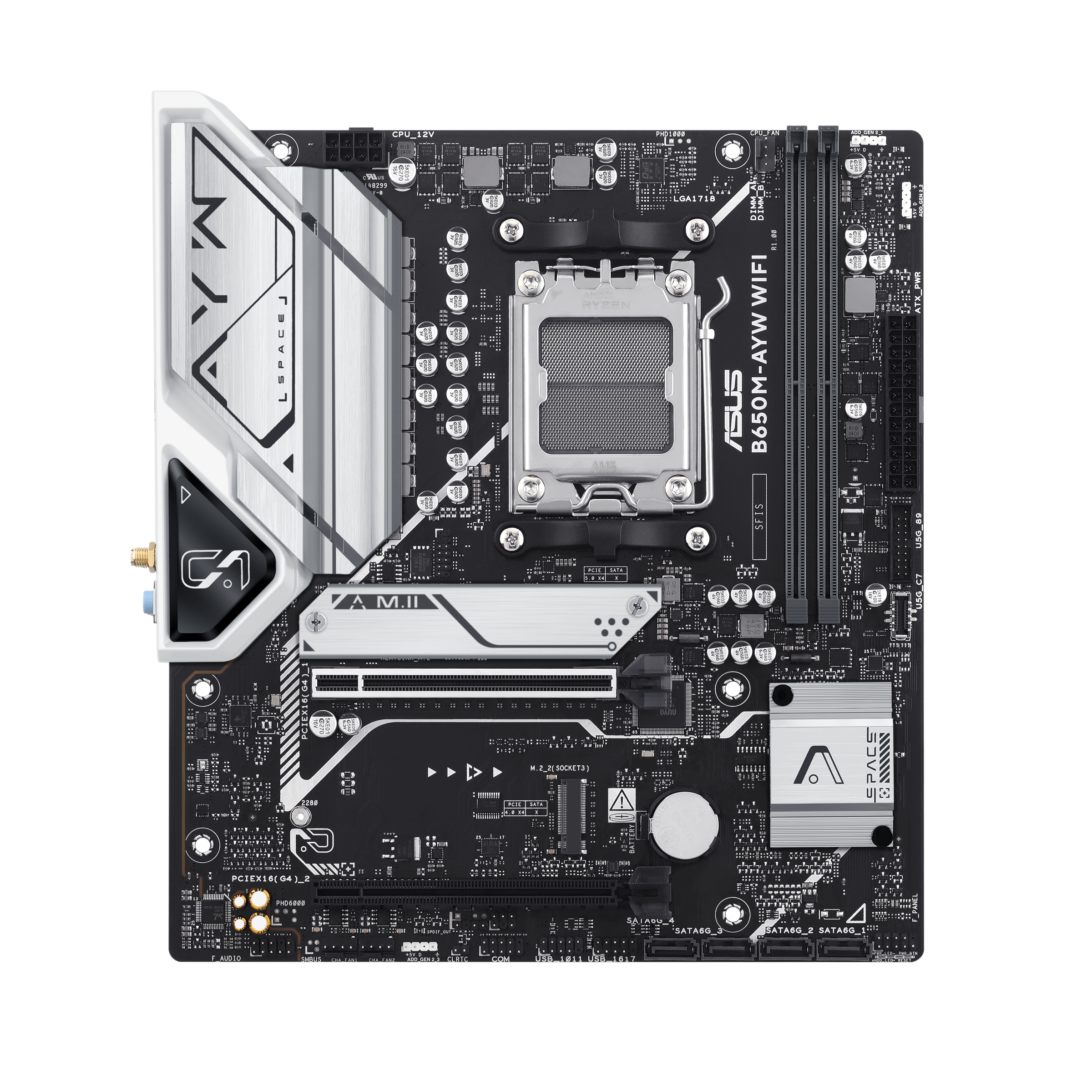

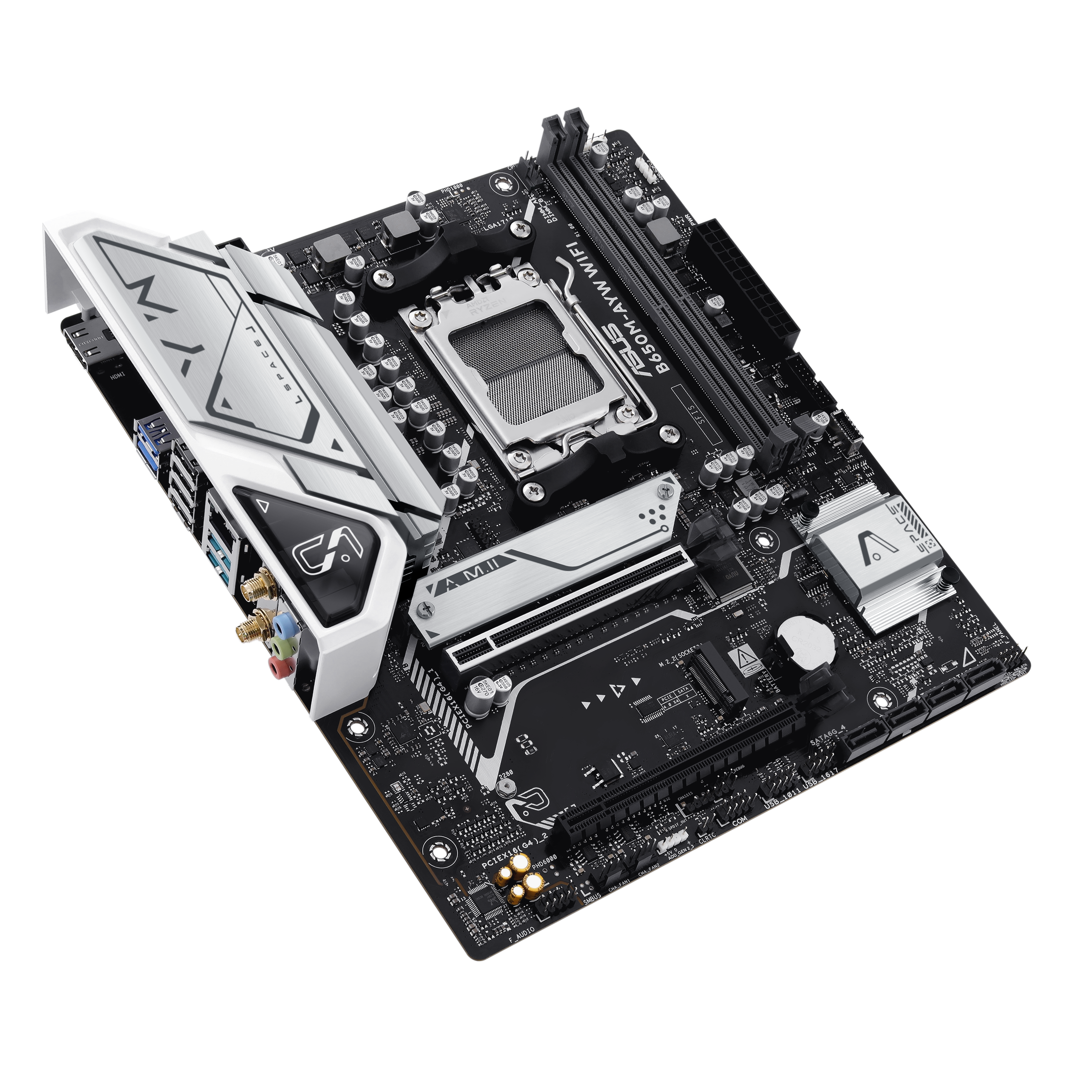

xAsus B650M-AYW WiFi
- Supports latest AMD Ryzen™ 9000, 8000, and 7000 Series CPUs with AM5 socket
- AMD B650 chipset on a compact Micro-ATX board
- Next-gen DDR5 memory support (up to 96GB, 8000+ MT/s OC)
- PCIe 5.0 M.2 slot for ultrafast NVMe SSDs
- Wi-Fi 6 & Realtek 2.5Gb Ethernet for high-speed networking
- Robust cooling design with dedicated heatsinks for VRM and M.2
- Comprehensive connectivity: HDMI, multiple high-speed USB ports, front/rear Type-C® support
- Premium audio (Realtek 7.1 Surround & AI noise-canceling)
-
ASUS-exclusive features: Armory Crate, Aura Sync RGB, and Q-Design for easy DIY
Product Specifications
| Form Factor | Micro-ATX (24.4 x 22.1 cm) |
| CPU Support | AMD Ryzen™ 9000/8000/7000 Series (AM5 socket) |
| Chipset | AMD B650 |
| Memory | 2x DDR5 DIMM (up to 96GB, 8000+MT/s OC, Dual Channel, ECC/Non-ECC) |
| Graphics Output | 1 x HDMI™ 2.1 (up to 4K@60Hz) |
| Expansion Slots | 1 x PCIe 4.0 x16 (mode depends on CPU), supports durable SafeSlot Core+ |
| M.2 Slots | 2 x M.2 (PCIe 5.0 & 4.0 compatible, RAID support) |
| SATA Ports | 4 x SATA 6Gb/s |
| LAN | Realtek 2.5Gb Ethernet |
| Wireless | Wi-Fi 6 (802.11ax, 2.4/5GHz), Bluetooth v5.3 |

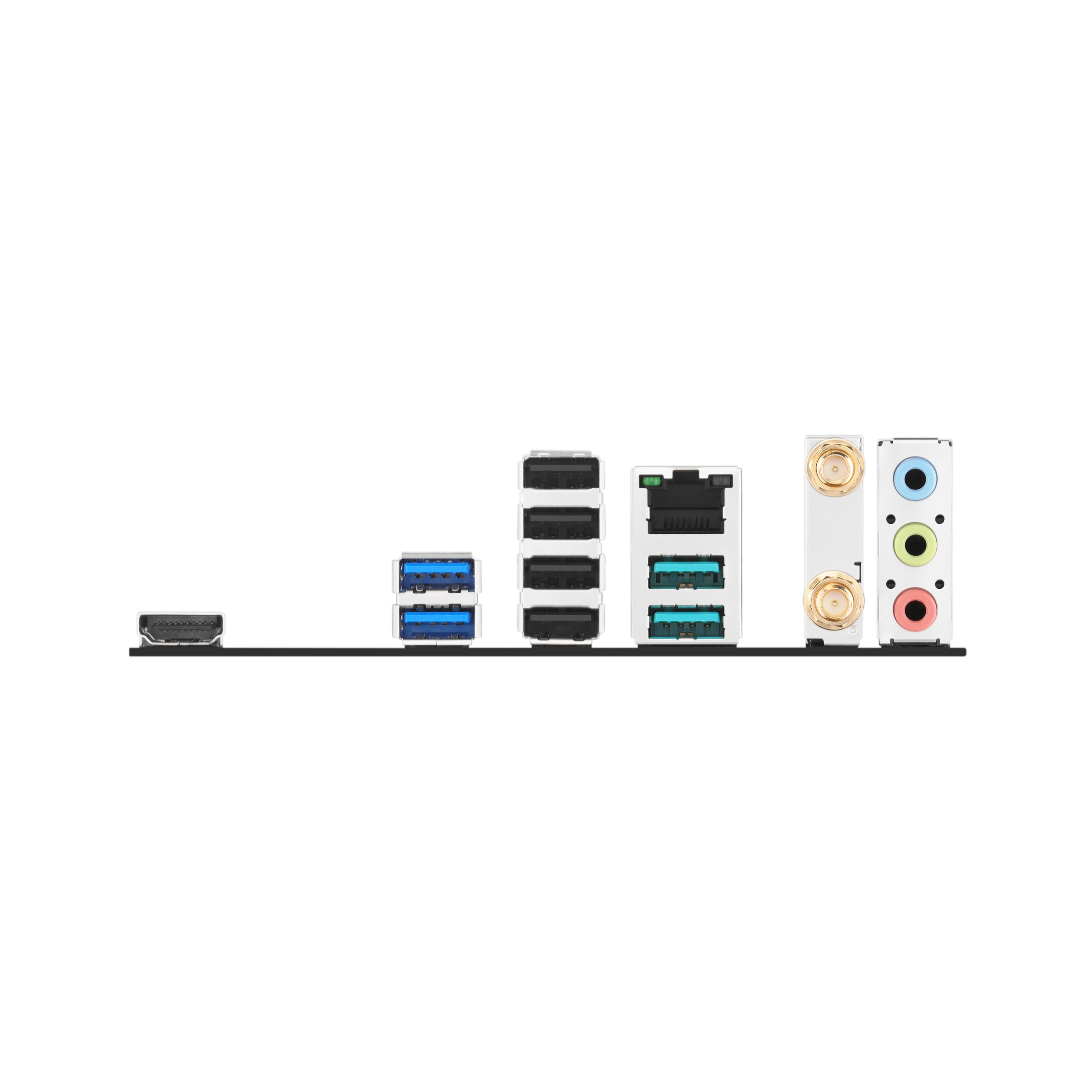

| Rear USB Ports | 2 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A) |
| Front USB | 1 x USB 5Gbps (Type-C®), 2 x USB 5Gbps, 4 x USB 2.0 |
| Audio | Realtek 7.1 Surround, dedicated layers, premium capacitors, AI Noise Cancel |
| Cooling | VRM & M.2 heatsinks, multiple fan headers, Fan Xpert 2+ |
| RGB Lighting | Aura Sync, 3x addressable Gen 2 headers |
| Special Features | Q-Latch, Q-DIMM, Q-LED, Stainless steel I/O, Armoury Crate, UEFI BIOS |

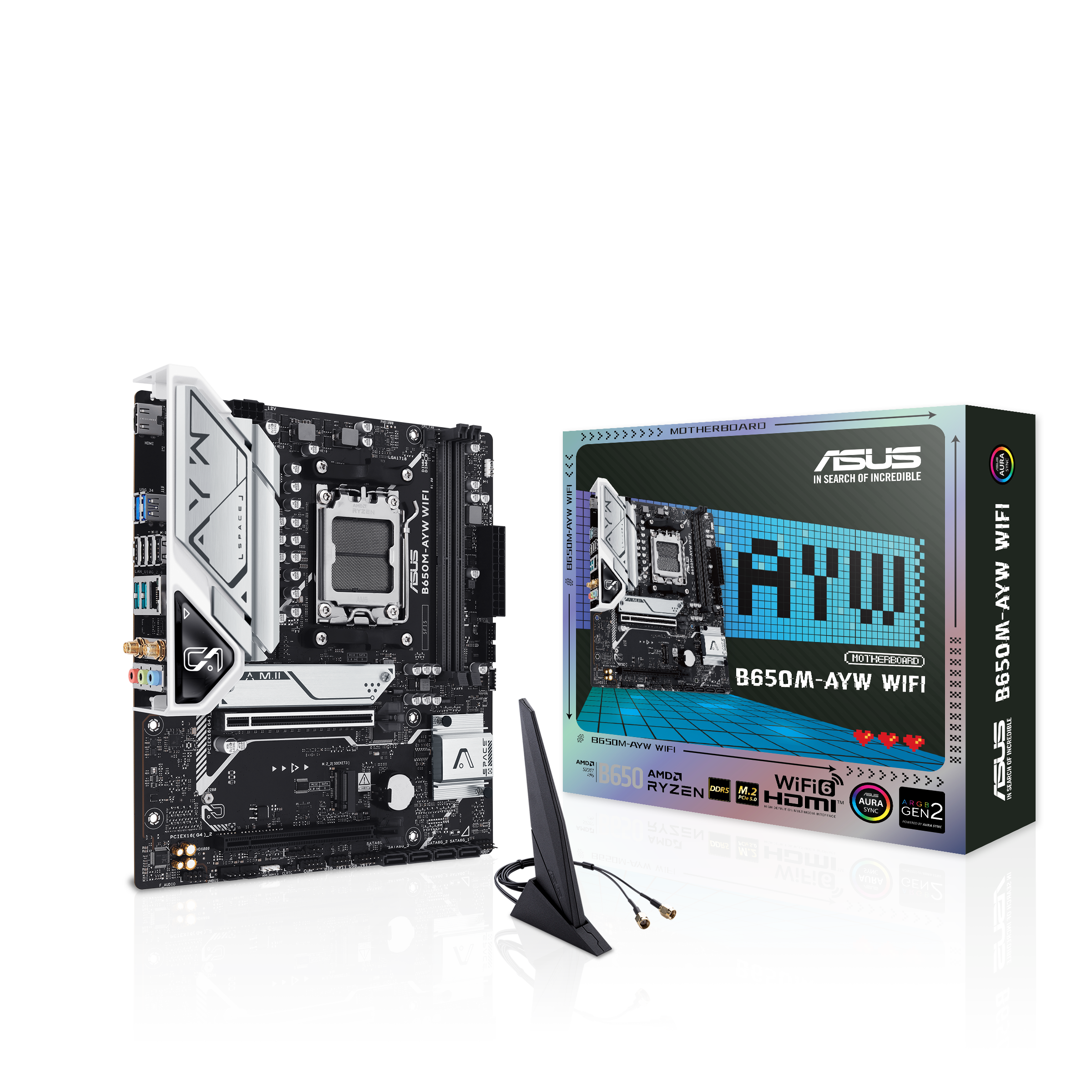

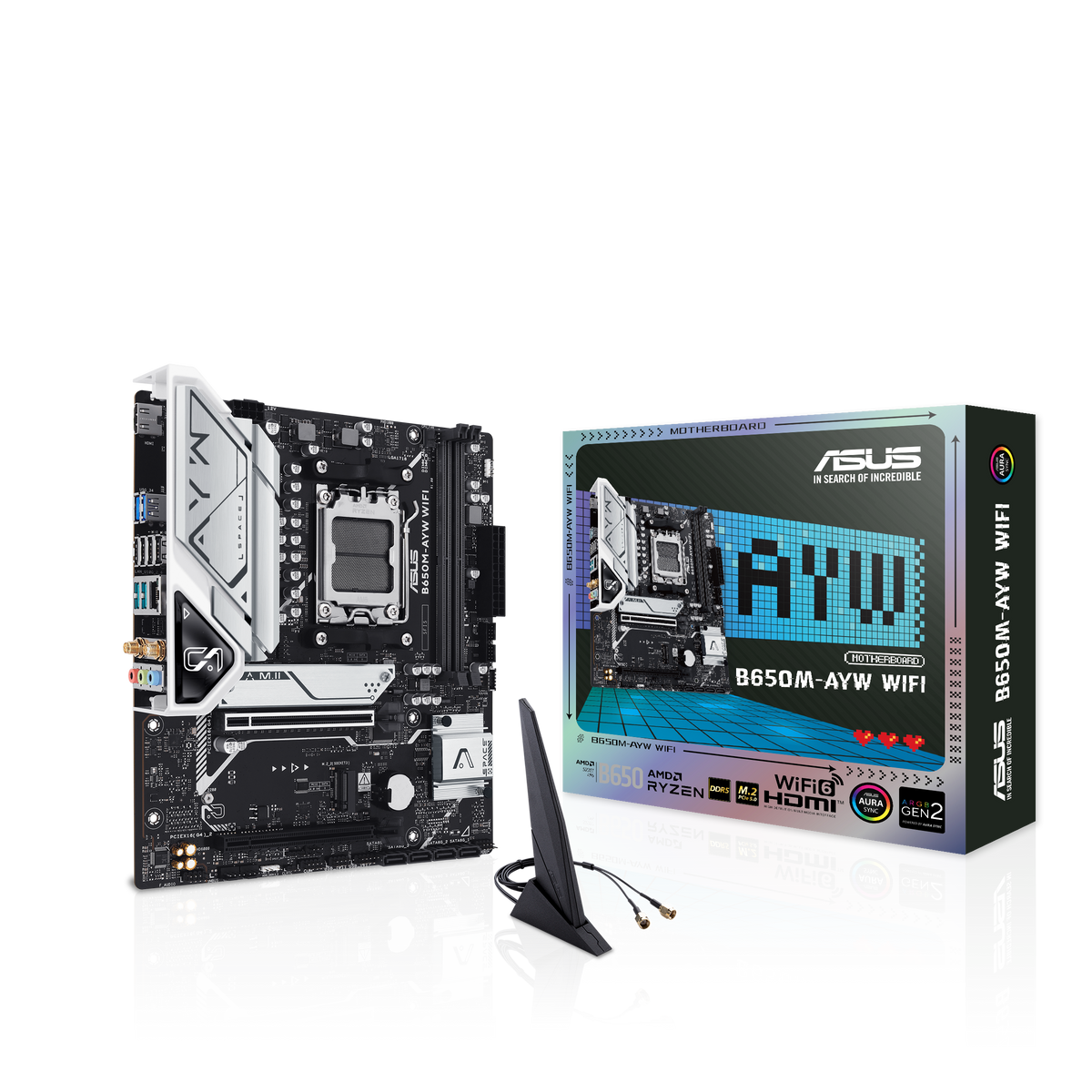

| Accessories | Wi-Fi antenna, SATA cables, I/O shield, M.2 screws, quick start guide |
| OS Support | Windows® 11 & 10 (64-bit) |
