Product Description

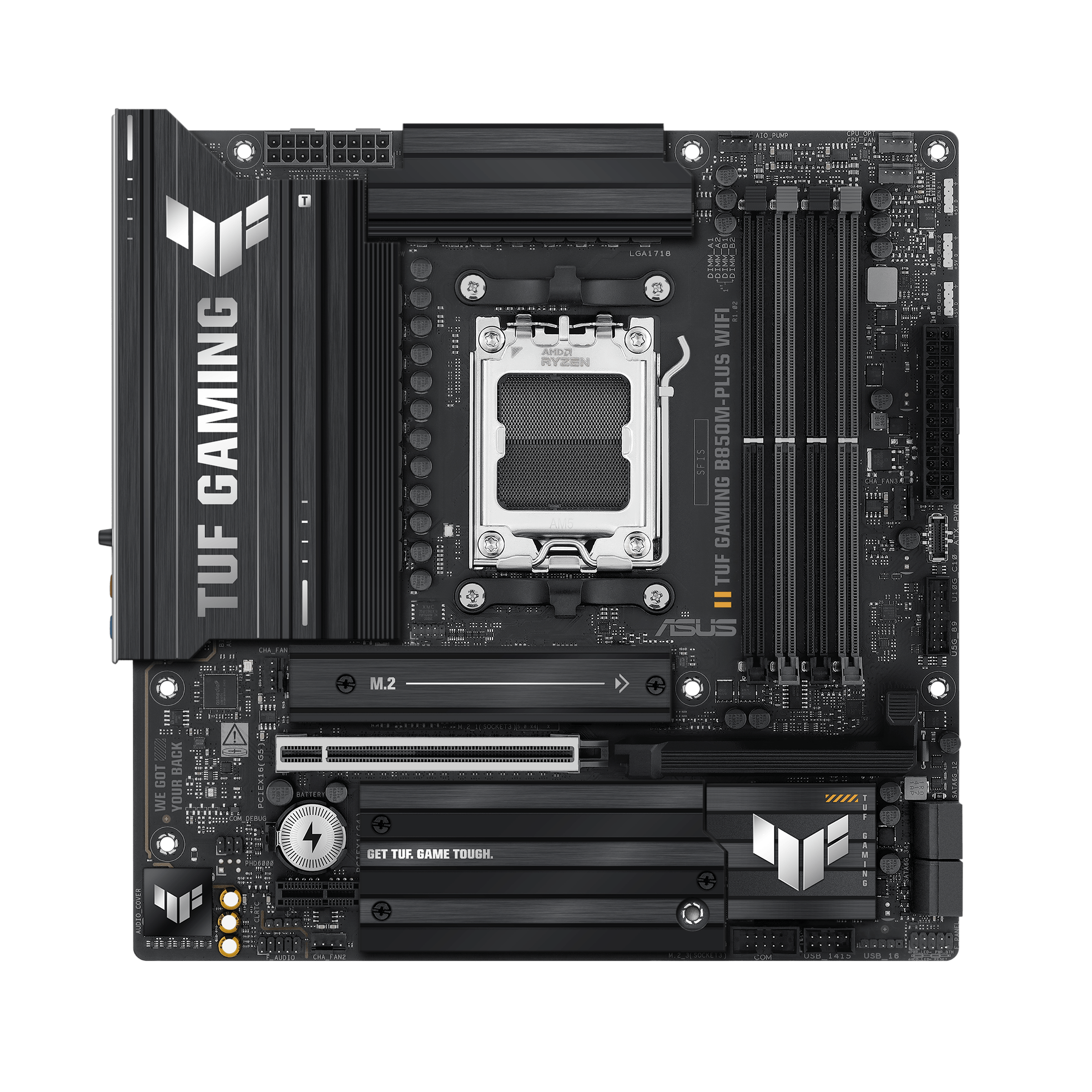

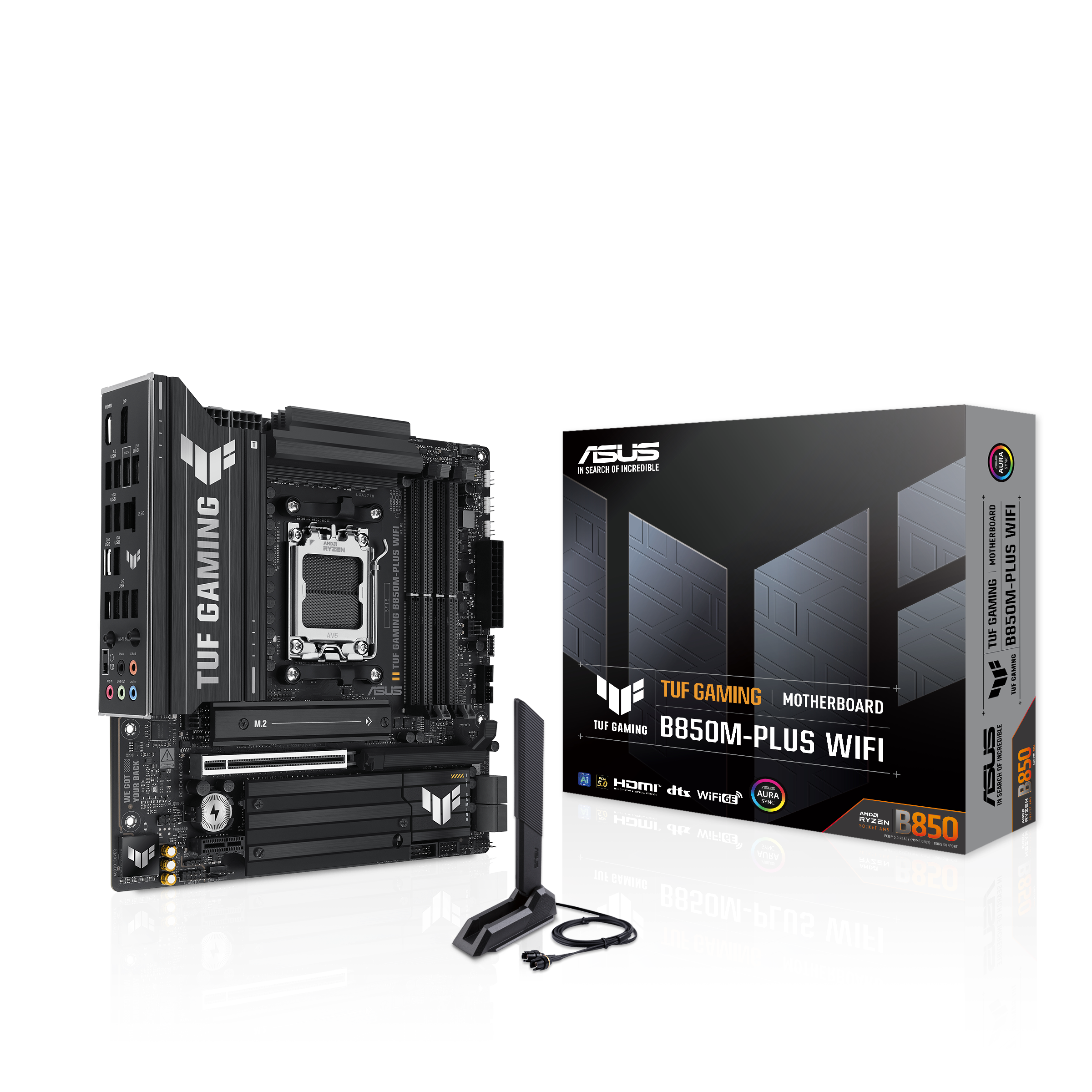

xAsus TUF Gaming B850M-Plus WiFi
- Powered by AMD B850 chipset, supporting Ryzen™ 9000, 8000, and 7000 Series desktop processors
- Durable design with military-grade components and comprehensive cooling system
- 4 x DDR5 DIMM slots, up to 256GB, with high frequencies and AMD EXPO™ support
- Advanced graphics output: DisplayPort (up to 8K@30Hz), HDMI 2.1 (4K@60Hz)
- Robust expansion: PCIe 5.0 x16 and multiple PCIe 4.0 slots
- Triple M.2 slots (PCIe 5.0 & 4.0 support) & 4 x SATA 6Gb/s for flexible storage
- Wi-Fi 6E, Bluetooth 5.3, and Realtek 2.5Gb Ethernet for high-speed connectivity
- 12 rear and 6 front USB ports, including USB-C 20Gbps support
- Realtek ALC1220P 7.1 surround sound with premium audio features
- Multiple ASUS-exclusive features: Armoury Crate, Aura Sync, Fan Xpert 4, BIOS FlashBack™, and more
|
CPU Support
|
AMD Socket AM5: Ryzen™ 9000, 8000, 7000 Series
|
|
Chipset
|
AMD B850
|
|
Memory
|
4 x DDR5 DIMM, up to 256GB, EXPO™ & AEMP support
|
|
Memory Speed
|
Up to 8000+ MT/s (OC)
|
|
Graphics Outputs
|
1 x DisplayPort (8K@30Hz), 1 x HDMI 2.1 (4K@60Hz)
|
|
Expansion Slots
|
Ryzen™ 9000/7000: PCIe 5.0 x16; 8000: PCIe 4.0 x16/x8/x4; PCIe 4.0 x1
|
|
Storage
|
3 x M.2 (PCIe 5.0/4.0,x4/x2), 4 x SATA 6Gb/s
|
|
RAID Support
|
RAID 0/1/5/10 (9000), RAID 0/1 (8000), RAID 0/1/10 (7000)
|
|
LAN
|
1 x Realtek 2.5Gb Ethernet, TUF LANGuard
|
|
Wireless
|
Wi-Fi 6E (2x2), Bluetooth 5.3
|
|

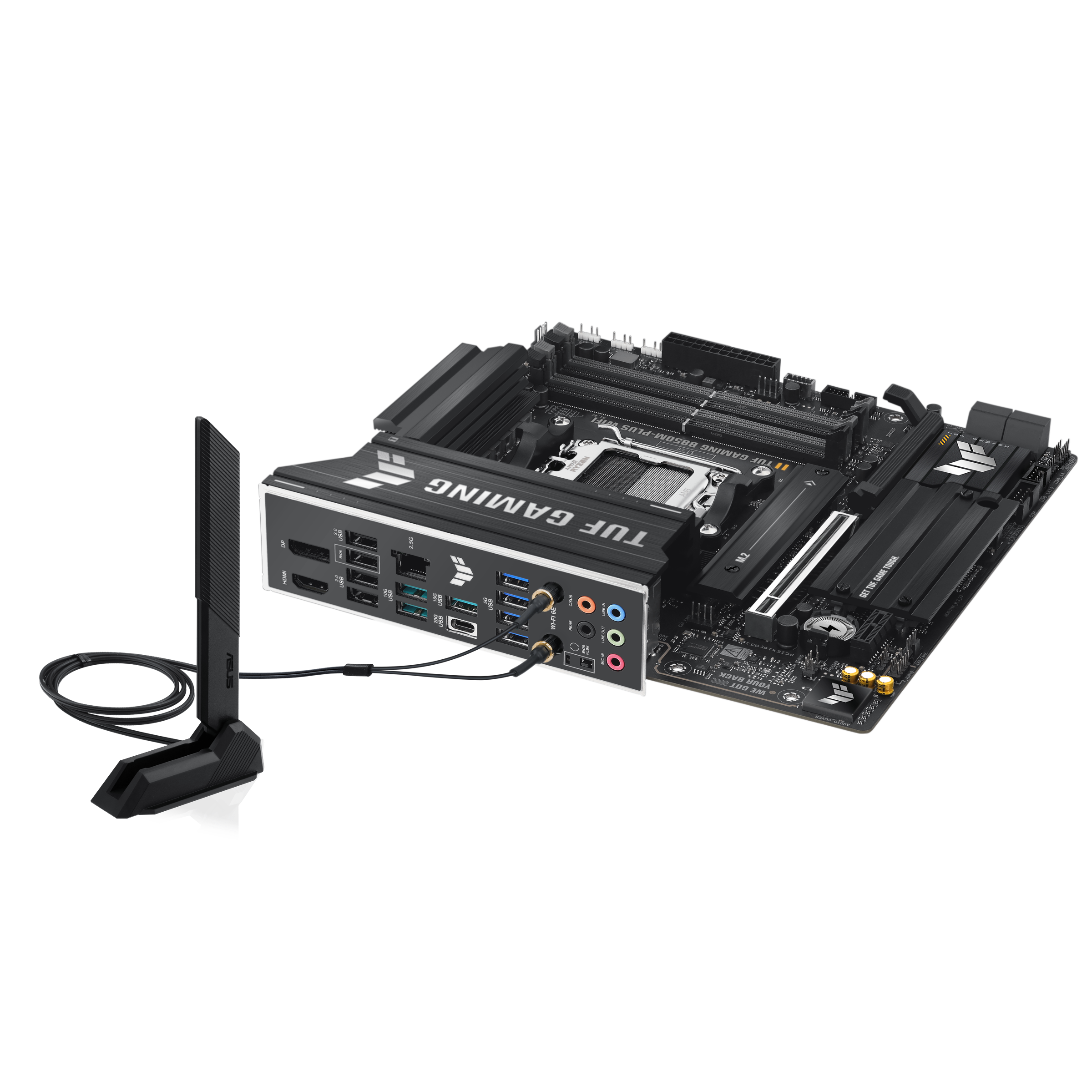

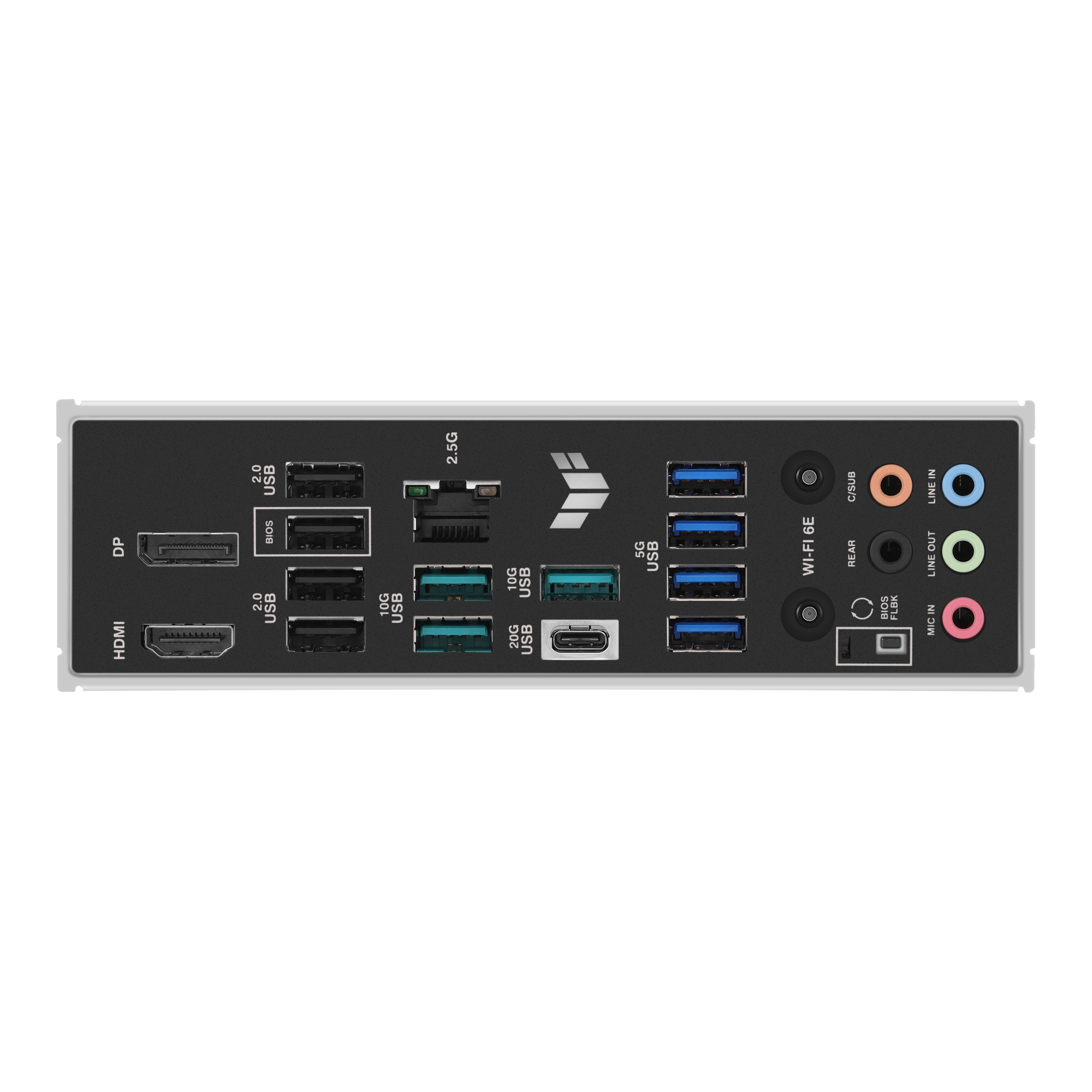

Rear USB Ports
|
1 x USB 20Gbps (Type-C), 3 x USB 10Gbps (Type-A), 4 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A)
|
|
Front USB
|
1 x USB 10Gbps (Type-C), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (3 ports)
|
|
Audio
|
Realtek ALC1220P, 7.1 Surround Sound, Premium features
|
|
Form Factor
|
micro-ATX (24.4 x 24.4 cm)
|
|
Special Features
|
ASUS Armoury Crate, Aura Sync, Fan Xpert 4, Q-Design, BIOS FlashBack™, Stainless-steel back I/O
|
|

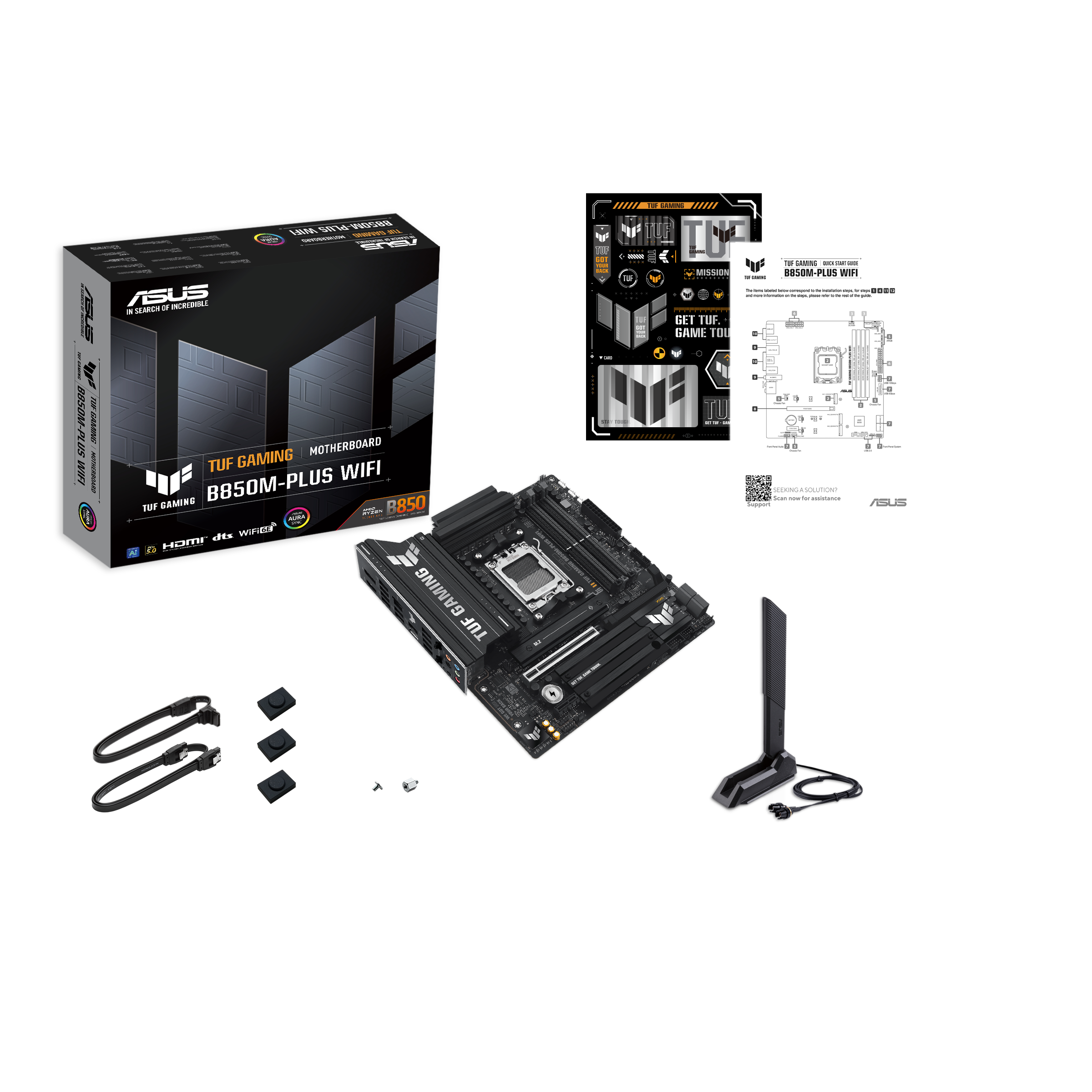

Accessories
|
2 x SATA cables, WiFi Q-Antenna, M.2 screws & accessories, Quick guide, TUF GAMING sticker
|
