Asus

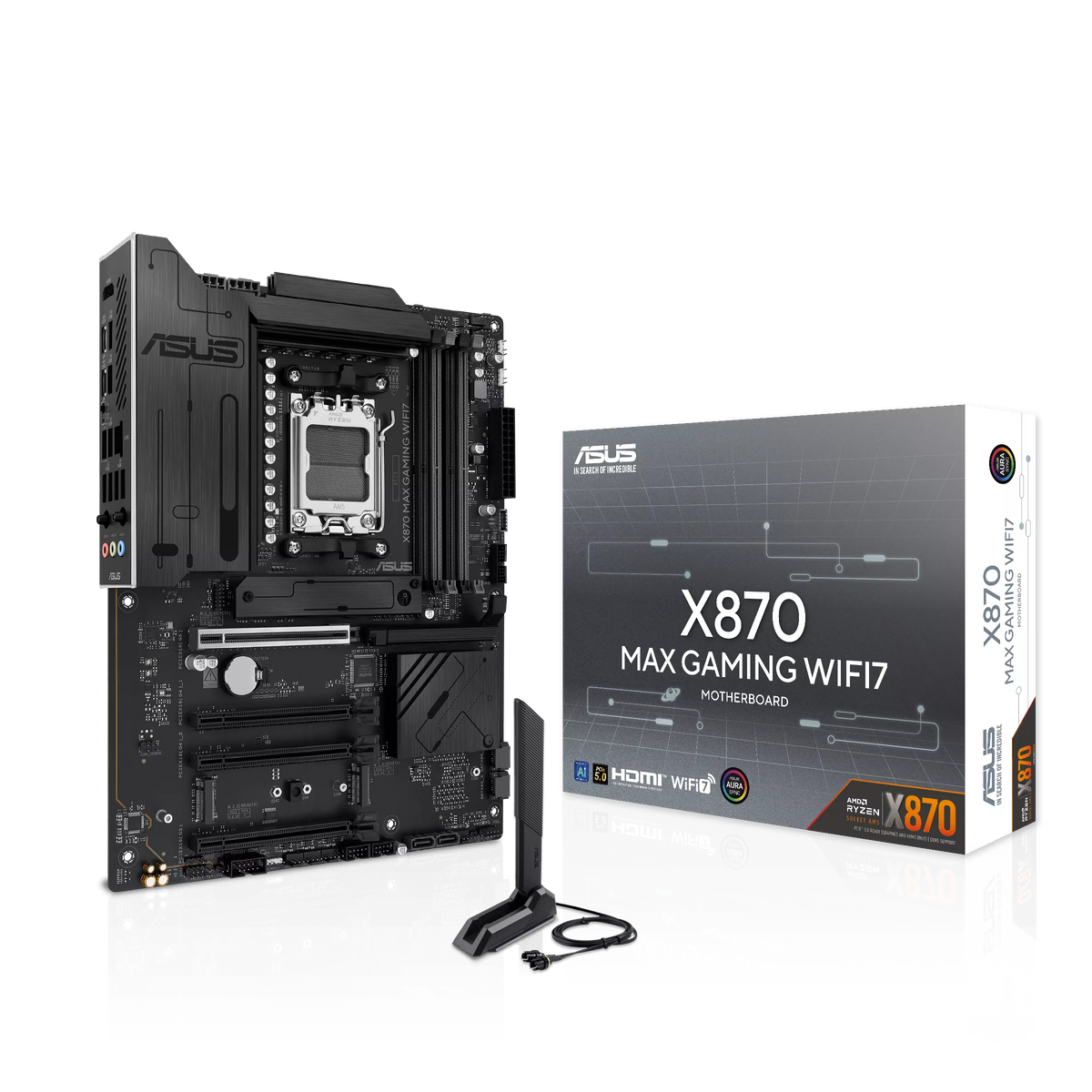

Asus X870 Max Gaming Wifi7

BND 429.00

In stock!

Estimated delivery: Oct 07 - Oct 11

Product Information

• Robust Power Delivery: Features 12(80A) + 2(80A) + 1(80A) power stages with enlarged VRM heatsinks to supply clean, efficient power to high-core-count AMD processors.

• Advanced AI Optimization: Intelligent ASUS AI Solutions like AI Cooling II, AI Cache Boost, and ASUS AI Advisor dynamically tune performance, thermal acoustics, and LLM workflows.

• Next-Gen Connectivity: Built-in WiFi 7, Realtek 2.5Gb Ethernet, and dual USB4 40Gbps Type-C ports ensure ultra-fast data transfers and low-latency networking.

• High-Speed PCIe 5.0 Expansion: Equipped with PCIe 5.0 x16 slots for modern graphics cards and PCIe 5.0 M.2 support for blistering fast NVMe storage speeds.

• EZ PC DIY Innovations: User-friendly design elements like PCIe Slot Q-Release, snap-in Q-Antenna, pre-mounted I/O shield, and Q-LED Core simplify building and upgrading.

• DDR5 Memory Enhancements: Unlocks extreme RAM speeds with AMD EXPO support and ASUS Enhanced Memory Profile (AEMP) for maximum multi-tasking performance.

Product Summary

Unleash the full potential of AMD Ryzen 9000 series processors with the ASUS X870 Max Gaming WiFi 7 Motherboard. Featuring robust 12+2+1 power delivery, PCIe 5.0 expansion, dual USB4 ports, WiFi 7, and suite of ASUS AI performance optimizations, it delivers cutting-edge performance for high-end gaming and AI workflows.

View details

Product Specifications

Warranty Information

Reviews

Category	Specification
Model Name	ASUS X870 Max Gaming WiFi 7
CPU Socket	AMD Socket AM5
Supported Processors	AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors
Chipset	AMD X870
Memory Capacity	4 x DIMM slots, Max. 256GB, DDR5
Memory Speed & Features	Up to 8000+ MT/s (OC), Dual Channel, AMD EXPO, ASUS Enhanced Memory Profile (AEMP), Non-ECC/ECC Un-buffered
Power Solution	12(80A) + 2(80A) + 1(80A) Power Stages, Digi+ VRM, 8+8 Pin ProCool Power Connectors
Graphics Output Options	1 x HDMI 2.1 (4K@60Hz), 2 x USB4 40Gbps Type-C ports (DisplayPort 1.4a output up to 4K@60Hz)
Expansion Slots	1 x PCIe 5.0 x16 (Ryzen 9000/7000) or PCIe 4.0 x16 (Ryzen 8000), 2 x PCIe 4.0 x16 (x1 mode), 1 x PCIe 3.0 x16 (x1 mode)
M.2 Storage Support	1 x M.2_1 (PCIe 5.0 x4 / PCIe 4.0 x4 depending on CPU), 1 x M.2_2 (PCIe 4.0 x4), 1 x M.2_3 (PCIe 4.0 x4)
SATA Storage Support	4 x SATA 6Gb/s ports
RAID Support	AMD RAIDXpert2 Technology (RAID 0/1/5/10 depending on CPU)
Wireless & Bluetooth	Wi-Fi 7 (2x2 802.11be, 160MHz bandwidth up to 2.9Gbps, 2.4/5/6GHz), Bluetooth v5.4
Ethernet	1 x Realtek 2.5Gb Ethernet with ASUS LANGuard
Rear USB Ports	2 x USB4 (40Gbps) Type-C, 1 x USB 10Gbps Type-A, 3 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A
Front Panel USB Connectors	1 x USB 20Gbps Type-C header, 1 x USB 5Gbps header (supports 2 ports), 2 x USB 2.0 headers (supports 4 ports)
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC (Up to 24-Bit/192 kHz playback, Audio Shielding, Premium Capacitors)
Cooling Features	Enlarged VRM Heatsinks, Flexible M.2 Heatsinks, 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump header, 4 x Chassis Fan headers, AI Cooling II, Fan Xpert 4
DIY & Convenience Features	PCIe Slot Q-Release, Q-Antenna, Pre-mounted I/O Shield, BIOS FlashBack Button, Q-LED Core, SafeSlot
Lighting & Headers	Aura Sync RGB, 3 x Addressable RGB Gen 2 headers
Form Factor	ATX Form Factor (12 inches x 9.6 inches / 30.5 cm x 24.4 cm)
Operating System	Windows 11
