Deepcool

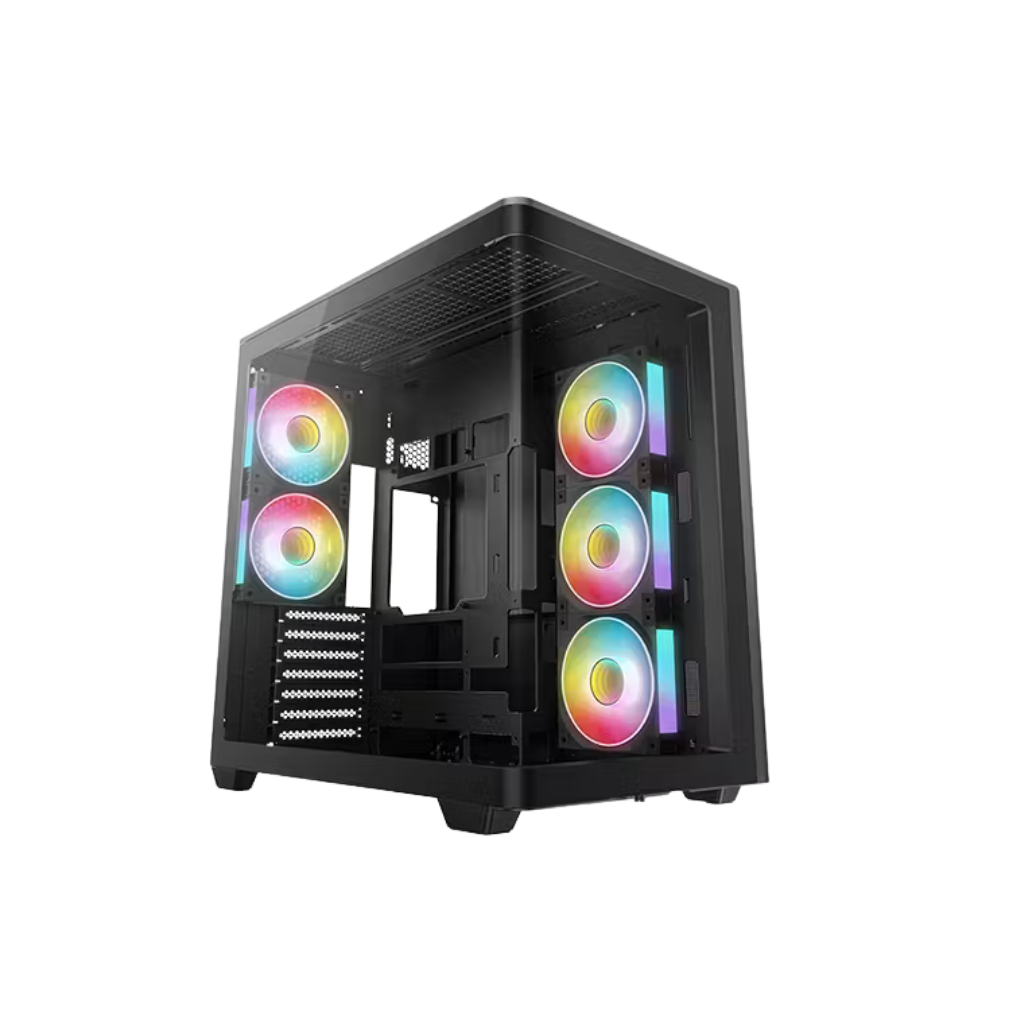

Deepcool CG590U 5F (Black)

BND 145.00

Hurry up! Stock running low!

Estimated delivery: Aug 11 - Aug 15

Product Information

• Seamless Panoramic View: One-piece curved tempered glass offers an unobstructed, continuous view of your internal components.

• Dual-Chamber Layout: Separates the power supply and drives to keep direct, unobstructed intake airflow focused on the graphics card.

• Pre-Installed 5 ARGB Fans: Equipped with 3 side reverse-blade and 2 rear standard 120mm fans for high-volume cooling and customizable lighting out of the box.

• Back-Connect Motherboard Support: Fully compatible with ATX and Micro-ATX reverse-connector motherboards, featuring 45mm of rear space for clean cable routing.

• Broad Hardware Compatibility: Generous interior clearances fit GPUs up to 410mm long, CPU coolers up to 160mm tall, and PSUs up to 210mm.

• Versatile Radiator Capacity: Supports extensive cooling configurations with room for up to 11 fans or 360mm radiators on top, side, or bottom panels.

Product Summary

Showcase your high-performance PC build with the Deepcool CG590U 5F curved-glass panoramic case. Featuring a dual-chamber design, pre-installed 5 ARGB fans, back-connect motherboard support, and versatile 360mm radiator capacity, it delivers optimal airflow alongside a clean, modern aesthetic.

View details

Product Specifications

Warranty Information

Reviews

Specification	Details
Product Dimensions	460 x 285 x 460 mm (L x W x H)
Net Weight	8.2 kg
Materials	ABS, SPCC, Tempered Glass
Motherboard Support	ITX, Micro-ATX, ATX, Micro-ATX (Rear Connector), ATX (Rear Connector)
Front I/O Ports	2x USB 3.0, 1x Gen2 Type-C, 1x Audio/Mic
3.5" Drive Bays	1+1
2.5" Drive Bays	2+1
Expansion Slots	7 Slots
Pre-Installed Fans	Side: 3x 120mm (Reverse-blade ARGB) Rear: 2x 120mm (Standard ARGB)
Fan Support	Top: 3x 120mm / 2x 140mm Side: 3x 120mm Rear: 2x 120mm Bottom: 3x 120mm
Radiator Support	Top: 120 / 140 / 240 / 280 / 360mm Side: 120 / 240 / 360mm Bottom: 120 / 240 / 360mm Rear: 120mm
CPU Cooler Height Limit	160 mm
GPU Size Limit	410 mm
Power Supply Type	ATX PS2 (Maximum length: 210mm)
Cable Management Clearance	45 mm
