Gigabtye

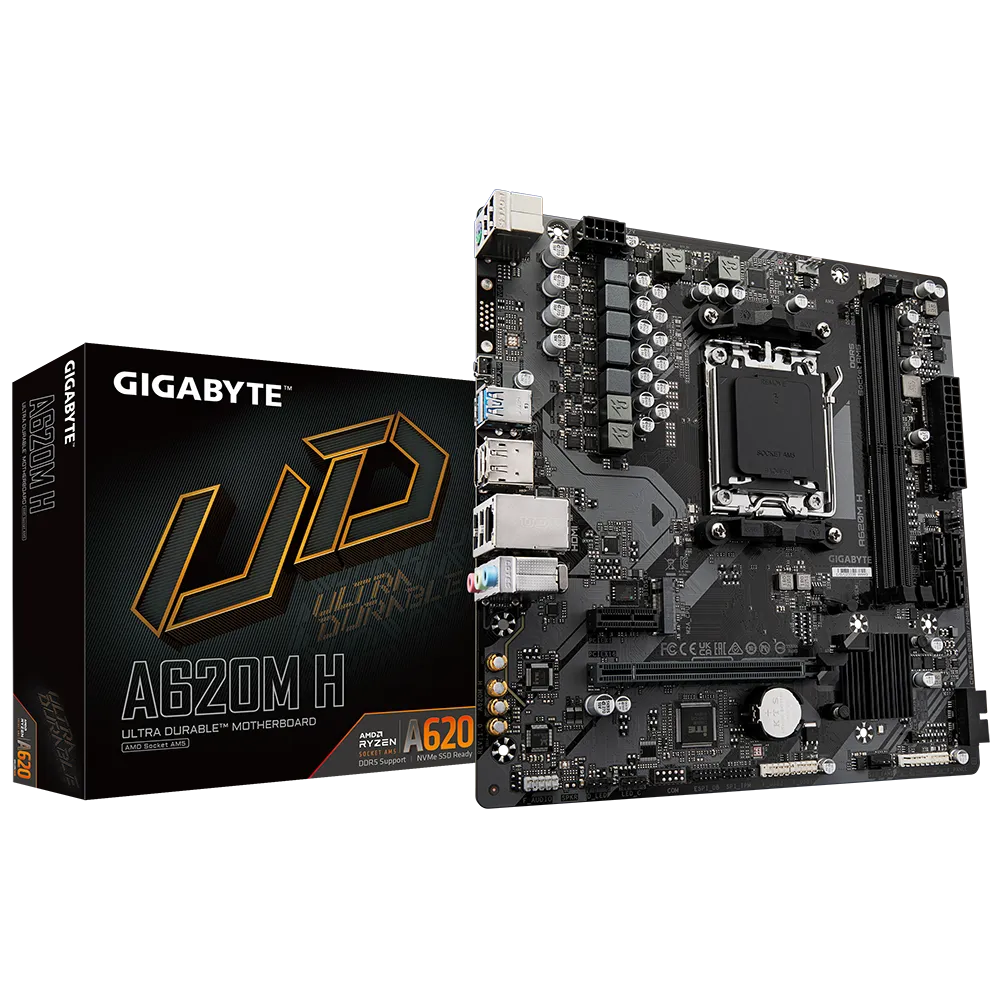

Gigabyte A620M H

BND 138.00

In stock!

Estimated delivery: Dec 22 - Dec 26
Product Information
  • Processor Support: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors.
  • Performance: 5+2+2 Phases Digital VRM Solution.
  • Memory: Dual Channel DDR5, 2x SMD DIMMs with AMD EXPO™ & Intel® XMP support, up to 128 GB.
  • Storage: PCIe 4.0 x4 M.2 Connector, 4x SATA 6Gb/s.
  • Convenience: EZ-Latch PCIe x16 Slot, Q-Flash Plus for BIOS updates.
  • Networking: GbE LAN.
  • Connectivity: DisplayPort, HDMI.
  • Cooling: Smart Fan 6 with multiple temperature sensors and FAN STOP.
Product Summary

The A620M H (rev. 1.0) motherboard supports AMD Ryzen™ 7000/8000/9000 Series Processors with a 5+2+2 Phases Digital VRM Solution. It offers dual-channel DDR5 memory, PCIe 4.0 x4 M.2 storage, GbE LAN, and extensive connectivity with DP and HDMI. Features like EZ-Latch and Q-Flash Plus simplify installation and updates for a seamless experience.
Pairs well with
Gigabyte A620M H
BND 138.00
113995 / 1 Year W...
Related categories
View details
CPU
AMD Socket AM5, supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors. (Refer to "CPU Support List" for more information.)
Chipset
AMD A620
Memory
2 x DDR5 DIMM sockets, up to 128 GB; Supports DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s; Dual channel, non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16; Supports AMD EXPO™ and Intel® XMP memory modules. (CPU and memory configuration may affect supported types and speeds; refer to "Memory Support List" for details.)
Onboard Graphics
Integrated Graphics Processor with 1x DisplayPort (3840x2160@144 Hz, DisplayPort 1.4) and 1x HDMI port (4096x2160@60 Hz, HDMI 2.1, HDCP 2.3). Supports up to 3 displays simultaneously. (Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel. (Functionality of audio jack can be changed via audio software.)
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots
1 x PCI Express x16 slot (integrated in CPU): PCIe 4.0 x16 for Ryzen™ 7000 Series, PCIe 4.0 x8 for Ryzen™ 8000 Series-Phoenix 1, PCIe 4.0 x4 for Ryzen™ 8000 Series-Phoenix 2. Can support graphics card or NVMe SSD. 1 x PCI Express x1 slot (integrated in Chipset): PCIe 3.0 x1.
Storage Interface
1 x M.2 connector (integrated in CPU), supports Socket 3, M key, type 2580 SSDs (PCIe 4.0 x4/x2 for Ryzen™ 7000/8000 Series). 4 x SATA 6Gb/s connectors. Supports RAID 0, 1, 10 for NVMe SSD and SATA storage devices.
USB
CPU: 2 x USB 3.2 Gen 1 (back panel), 1 x USB 2.0/1.1 (back panel). Chipset: 2 x USB 3.2 Gen 1 (internal header), 7 x USB 2.0/1.1 (3 back panel, 4 internal headers).
Internal I/O
1 x 24-pin ATX main power, 1 x 8-pin ATX 12V power, 1 x CPU fan, 2 x system fan, 1 x addressable LED strip, 1 x RGB LED strip, 1 x M.2 Socket 3, 4 x SATA 6Gb/s, 1 x front panel, 1 x front panel audio, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header, 1 x Clear CMOS jumper.
Back Panel Ports
4 x USB 2.0/1.1, 1 x PS/2 keyboard/mouse, 1 x Q-Flash Plus button, 2 x USB 3.2 Gen 1, 1 x DisplayPort, 1 x HDMI, 1 x RJ-45, 3 x audio jacks.
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage, temperature, fan speed, water cooling flow rate detection; Fan fail warning, fan speed control. (Fan speed control depends on fan installed.)
BIOS
1 x 256 Mbit flash, licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.
Unique Features
Supports GIGABYTE Control Center (GCC), Q-Flash Plus, Q-Flash.
Bundled Software
Norton® Internet Security (OEM version), LAN bandwidth management software.
Operating System
Supports Windows 11 64-bit, Windows 10 64-bit.
Form Factor
Micro ATX Form Factor; 23.0cm x 22.5cm.
