MSI

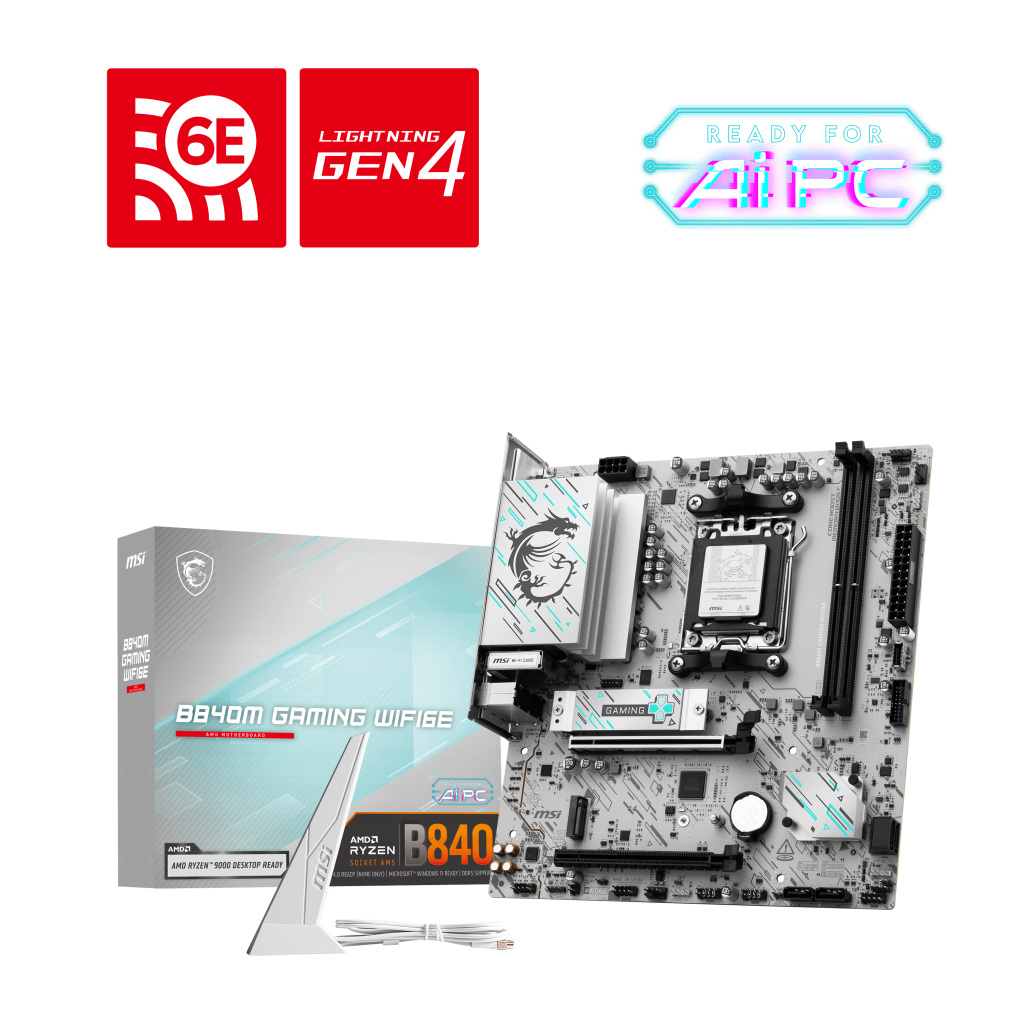

MSI B840M Gaming Wifi 6E

BND 209.00

In stock!

Estimated delivery: Oct 26 - Oct 28
Product Information

MSI B840M Gaming Wifi 6E

  • Supports AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors (Socket AM5)
  • Advanced 7+2+1 Power System for ultra-stable performance
  • Dual Channel DDR5, up to 128GB, 8200+ MT/s (OC)
  • Frozr Guard: Large heatsinks, MOSFET & choke thermal pads, M.2 Shield Frozr for thermal management
  • PCIe 4.0 x16 & x8, dual M.2 Gen 4 slots, four SATA 6G ports
  • High-speed networking: Wi-Fi 6E, 2.5G LAN
  • Audio Boost: Realtek® 7.1 HD Audio codec
  • EZ DIY features: Tool-less M.2 & PCIe slots, quick-release antenna design
Product Summary

Take your gaming setup to the next level with the MSI B840M GAMING PLUS WIFI6E motherboard—AMD Ryzen 9000/8000/7000 ready, supporting cutting-edge DDR5 memory, PCIe 4.0, dual Gen 4 M.2, Wi-Fi 6E, and 2.5G LAN. Engineered for ultimate performance, cooling, and fast connectivity, all in a compact mATX design.
MSI B840M Gaming Wifi 6E
BND 209.00
112836 / 1 Year W...
Pairs well with
Related categories
View details

MSI B840M Gaming Wifi 6E

  • Supports AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors (Socket AM5)
  • Advanced 7+2+1 Power System for ultra-stable performance
  • Dual Channel DDR5, up to 128GB, 8200+ MT/s (OC)
  • Frozr Guard: Large heatsinks, MOSFET & choke thermal pads, M.2 Shield Frozr for thermal management
  • PCIe 4.0 x16 & x8, dual M.2 Gen 4 slots, four SATA 6G ports
  • High-speed networking: Wi-Fi 6E, 2.5G LAN
  • Audio Boost: Realtek® 7.1 HD Audio codec
  • EZ DIY features: Tool-less M.2 & PCIe slots, quick-release antenna design

Product Specifications

Chipset AMD B840
CPU Support AMD Ryzen™ 9000/8000/7000 Series, Socket AM5
Memory 2x DDR5 UDIMM, 128GB Max, Dual Channel, up to 8200+ MT/s OC, AMD EXPO™ support
Graphics 1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz)*
PCIe Slots 2x PCIe x16 (Gen 4/Gen 3), per CPU/Chipset
Storage 2x M.2 (PCIe 4.0 x4, 2280/2260), 4x SATA 6G, RAID 0/1/10 support
Audio Realtek® ALC897 Codec, 7.1 HD Audio
USB 2x USB 2.0 (Rear), 4x USB 2.0 (Front), 4x USB 5Gbps Type-A (Rear), 2x USB 5Gbps Type-A (Front), 1x USB 5Gbps Type-C (Front)
LAN Realtek® 8125D 2.5G LAN
Wireless Wi-Fi 6E, Bluetooth® 5.3, MU-MIMO, up to 2.4Gbps
LED/Debug 4x EZ Debug LEDs, 1x EZ Memory Detection LED, RGB & ARGB headers
Form Factor mATX (226mm x 243.84mm)
Operating System Windows® 11 64-bit
Unique Features Flash BIOS Button, Clear CMOS, Frozr Guard Thermal Management, EZ Clip Tooling
