MSI

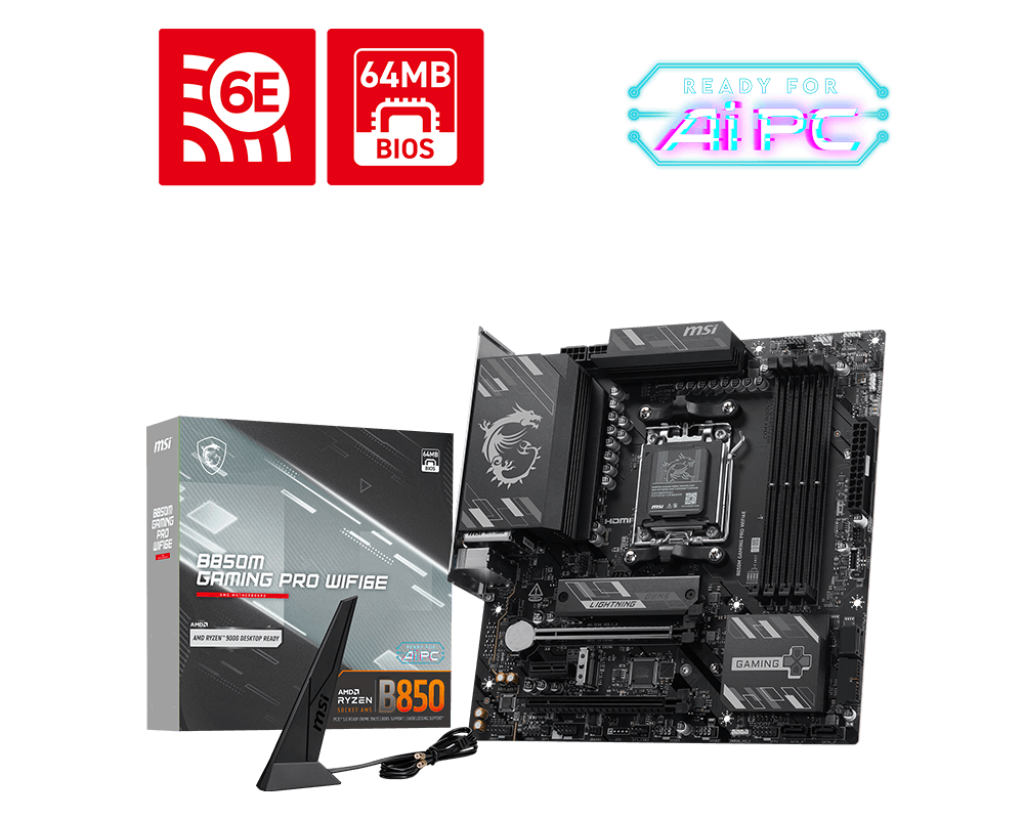

MSI B850M Gaming Pro WiFi 6E

BND 289.00

In stock!

Estimated delivery: Dec 22 - Dec 26

Product Information

Processor Support: AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors.
Memory: DDR5, Dual Channel, up to 8200+ MT/s (OC), 256GB max capacity.
Power Design: Direct 8+2+1 Power System with 55A DrMOS, dual 8-pin CPU power, Core Boost, Memory Boost, 6-layer PCB.
Cooling: Frozr Guard with Extended Heatsink, 7W/mK MOSFET thermal pads, additional choke thermal pads, M.2 Shield Frozr.
Connectivity: 2.5G LAN, Wi-Fi 6E, Bluetooth® 5.3.
Expansion: PCIe 4.0 x16 slot, Lightning Gen 5 x4 M.2, Front USB Type-C.
User-Friendly Features: EZ PCIe Clip II, EZ M.2 Clip II, EZ-Conn Design, EZ Antenna, Audio Boost.

Product Summary

Experience lightning-fast gaming and robust performance with the B850M GAMING PRO WIFI6E motherboard. Supporting AMD Ryzen™ 9000 Series processors and DDR5 memory up to 8200+ MT/s, it features a direct 8+2+1 power system, Frozr Guard cooling, 2.5G LAN, and Wi-Fi 6E for unparalleled speed and stability. Enjoy PCIe 4.0, Lightning Gen 5 M.2, and premium Audio Boost for an immersive experience.

Quantity:

BND 289.00

113994 / 1 Year W...

View details

Product Specifications

Warranty Information

Reviews

Chipset	AMD B850
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors, Socket AM5
Memory	4x DDR5 UDIMM, 256GB Max Capacity; Supports DDR5 8200 - 5600 (OC) MT/s, 5600 - 4800 (JEDEC) MT/s; Supports Memory Overclocking, AMD EXPO™, Dual-Channel, Non-ECC, Un-buffered memory, CUDIMM. (Note: CUDIMM support and POR boot frequency may vary by CPU series. Refer to the Memory Compatibility List for details.)
Onboard Graphics	1x HDMI™ (4K 60Hz), 1x DisplayPort (4K 60Hz). (Available only on processors with integrated graphics; specifications may vary by CPU.)
Slots	2x PCI-E x16 (PCI_E1 Gen PCIe 4.0 x16 from CPU; PCI_E3 Gen PCIe 4.0 x4 from Chipset), 1x PCI-E x1 (PCI_E2 Gen PCIe 3.0 x1 from Chipset). PCI_E1 supports varying PCIe lanes based on Ryzen™ processor series.
Audio	Realtek® ALC897, 7.1-Channel High Definition Audio
Storage	2x M.2 (M.2_1 from CPU: PCIe 5.0 x4, 2280/2260; M.2_2 from CPU: PCIe 4.0 x4, 2280/2260; M.2_2 slot unavailable for Ryzen™ 8500/ 8300 Series processors). 4x SATA 6G. Supports RAID 0, 1, 10 for SATA and RAID 0, 1 for M.2 NVMe.
USB	Front: 4x USB 2.0, 2x USB 5Gbps Type A, 1x USB 10Gbps Type C. Rear: 4x USB 5Gbps Type A, 3x USB 10Gbps Type A, 1x USB 10Gbps Type C.
LAN	Realtek® 8125D 2.5G LAN
Wireless	Wi-Fi 6E Solution (MU-MIMO TX/RX, 2.4/5/6GHz up to 2.4Gbps), Supports 802.11 a/b/g/n/ac/ax, Bluetooth® 5.3. (Note: Wi-Fi 6E 6GHz and Bluetooth 5.3 readiness depend on regional regulations and OS.)
Internal I/O	ATX_PWR, CPU_PWR (2), CPU Fan, Combo Fan, System Fan (3), EZ Conn-header, Front Panel (2), Chassis Intrusion, Front Audio, Com Port, Tuning Controller, Addressable V2 RGB LED (3), RGB LED, TPM pin header, USB 2.0 (4), USB 5Gbps Type A (2), USB 10Gbps Type C (1).
Back Panel Ports	Clear CMOS, USB 10Gbps (Type-A), USB 5Gbps (Type-A), 2.5G LAN, Wi-Fi / Bluetooth, Audio Connectors, Flash BIOS, DisplayPort 1.4, HDMI™, USB 10Gbps (Type-C), USB 10Gbps (Type-A).
Operating System	Support for Windows® 11 64-bit
