Model
|
B850M GAMING WIFI
|
|
Form Factor
|
mATX
|
|
Chipset
|
AMD B850
|
|
CPU Support
|
AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
|
|
CPU Socket
|
AM5
|
|
Power Design
|
Direct 7+2+1 P‑PAK Power System, 8‑pin CPU power connector, Core Boost, Memory Boost, 6‑layer PCB with 2oz thickened copper
|
|
Memory Slots
|
2x DDR5 UDIMM
|
|
Max Memory Capacity
|
128GB
|
|
Memory Type
|
DDR5, Non‑ECC, Un‑buffered, Dual‑Channel
|
|
Memory Speeds (OC)
|
DDR5 8200–5600 MT/s (OC)
|
|
Memory Speeds (JEDEC)
|
DDR5 5600–4800 MT/s
|
|
Ryzen 9000 OC Speeds
|
1DPC 1R: up to 8200+ MT/s; 1DPC 2R: up to 8000+ MT/s
|
|
Memory Features
|
Supports AMD EXPO, AMD POR, Dual‑Channel, CUDIMM (Clock Driver bypass mode only)
|
|
Onboard Graphics Outputs*
|
1x HDMI 2.1 (up to 4K@60Hz); 1x DisplayPort 1.4 (up to 4K@60Hz)
|
|
PCIe Slots
|
2x PCIe x16 physical slots
|
|
PCI_E1 (from CPU)
|
PCIe 5.0 x16 (Ryzen 9000/7000); PCIe 4.0 x8 (Ryzen 8700/8600/8400); PCIe 4.0 x4 (Ryzen 8500/8300)
|
|
PCI_E2 (from Chipset)
|
PCIe 4.0 x4
|
|
Audio Codec
|
Realtek ALC897
|
|
Audio Channels
|
7.1‑Channel High Definition Audio, Audio Boost
|
|
M.2 Slots
|
2x M.2
|
|
M.2_1 (from CPU)
|
PCIe 5.0 x4 (Ryzen 9000/7000); PCIe 4.0 x4 (Ryzen 8000); 2280/2260
|
|
M.2_2 (from CPU)
|
PCIe 4.0 x4; PCIe 4.0 x2 (Ryzen 8500/8300); 2280/2260
|
|
SATA Ports
|
4x SATA 6Gb/s
|
|
RAID (SATA)
|
RAID 0, 1, 10
|
|
RAID (M.2 NVMe)
|
RAID 0, 1
|
|
USB (Rear)
|
2x USB 2.0; 3x USB 5Gbps Type‑A; 1x USB 5Gbps Type‑C
|
|
USB (Front / Internal)
|
4x USB 2.0; 2x USB 5Gbps Type‑A; 1x USB 10Gbps Type‑C header
|
|
LAN
|
Realtek 8126 5G LAN
|
|
Wireless LAN
|
Wi‑Fi 7, MU‑MIMO TX/RX, 2.4/5/6GHz (160MHz) up to 2.9Gbps, 802.11 a/b/g/n/ac/ax/be
|
|
Bluetooth
|
Bluetooth 5.4 (version may update via chipset vendor)
|
|
Cooling / Fan Headers
|
1x CPU Fan; 1x Combo Fan (Pump/Sys); 2x System Fan
|
|
Power Connectors
|
1x 24‑pin ATX_PWR; 1x 8‑pin CPU_PWR
|
|
Internal Headers
|
2x Front Panel; 1x Chassis Intrusion; 1x Front Audio; 1x COM port; 3x ARGB V2 (JARGB_V2); 1x RGB (JRGB); 1x TPM (TPM 2.0); internal USB headers as above
|
|
RGB / LED Features
|
3x Addressable V2 RGB headers; 1x RGB header; 4x EZ Debug LED; 1x EZ Memory Detection LED
|
|
Back Panel I/O
|
DisplayPort 1.4, HDMI, Clear CMOS Button, 5G LAN, Wi‑Fi / Bluetooth antenna connectors, USB 2.0, USB 5Gbps Type‑A & Type‑C, audio connectors, Flash BIOS Button
|
|
DIY Features
|
Frozr Guard with extended heatsink and M.2 Shield Frozr, MOSFET and choke thermal pads, EZ M.2 Clip II, EZ PCIe Clip II, EZ Antenna
|
|
Operating System Support
|
Windows 11 64‑bit
|
|
Special Notes
|
6GHz Wi‑Fi 7 and BT 5.4 availability depend on OS (Windows 11 24H2) and regional regulations; some CPU‑dependent PCIe/M.2 behaviors as noted above
|

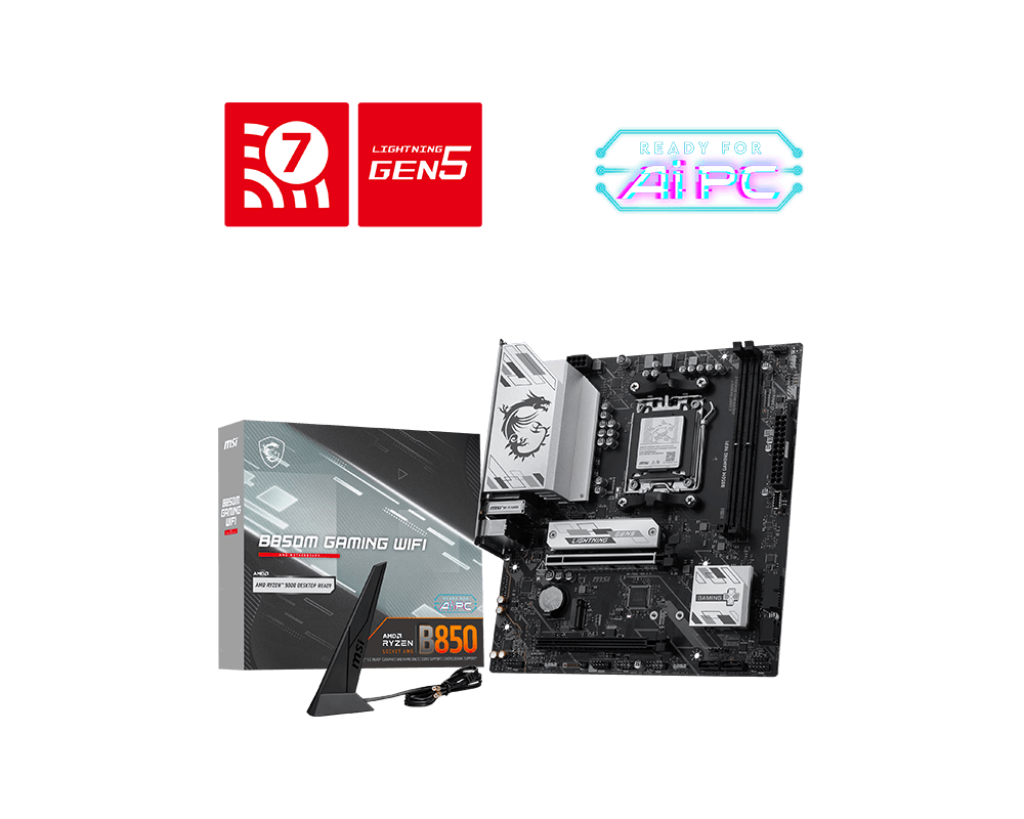

MSI B850M Gaming WiFi
