MSI

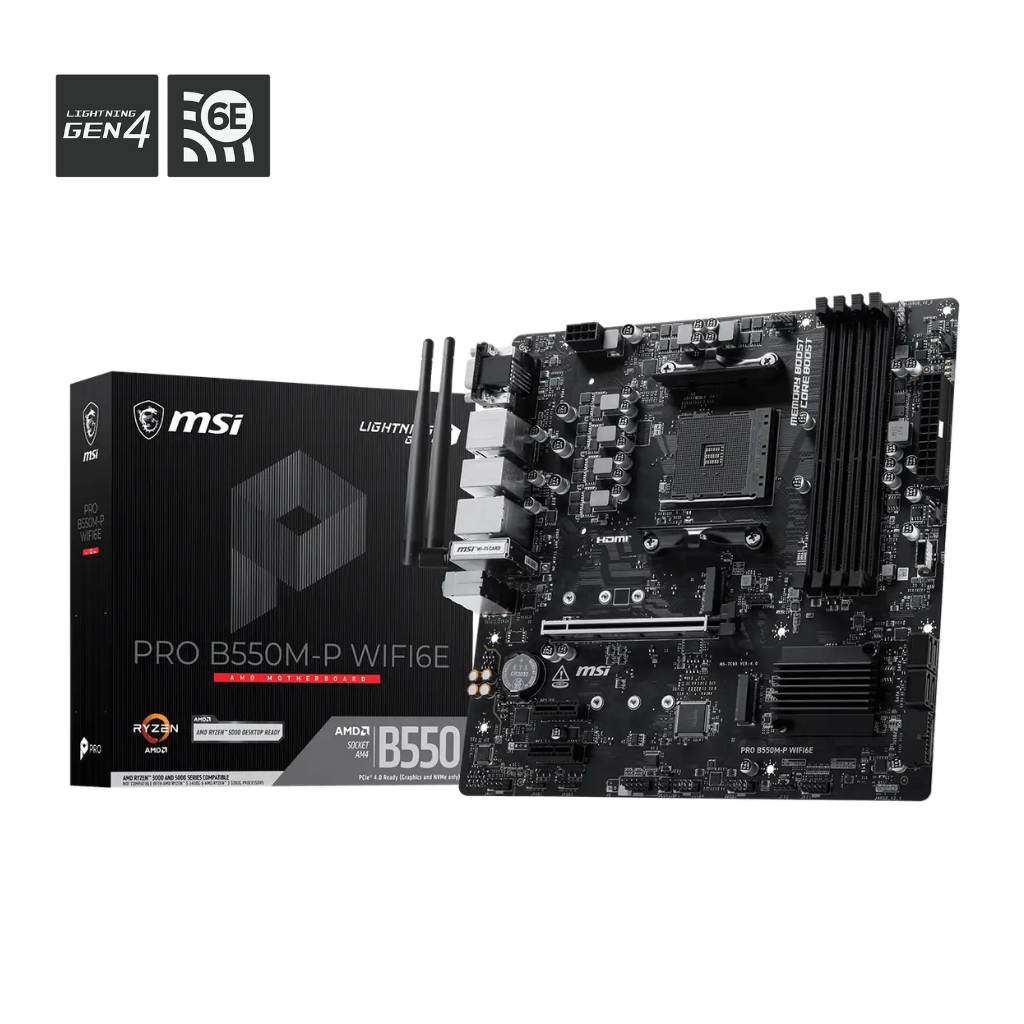

MSI Pro B550M-P WIFI6E

BND 169.00

In stock!

Estimated delivery: Oct 02 - Oct 06

Product Information

• AMD Ryzen Support: Compatible with AMD Ryzen 5000, 5000 G-Series, 4000 G-Series, and 3000 Series desktop processors on the AM4 socket.

• Lightning Fast PCIe 4.0: Features a Gen4 x16 expansion slot and Lightning Gen4 x4 M.2 support for maximum graphics and storage performance.

• Wi-Fi 6E & Bluetooth 5.3: Delivers high-speed, secure, and ultra-low latency wireless networking alongside versatile Bluetooth connectivity.

• DDR4 Memory Boost: Supports up to 128GB of dual-channel DDR4 RAM with A-XMP OC mode reaching speeds over 4400+ MT/s.

• EZ DIY Features: Equipped with EZ Debug LEDs, color-coded pin headers, and solid-pin power connectors for an easy, stable build process.

Product Summary

Boost your business productivity with the MSI PRO B550M-P WIFI6E motherboard. Engineered for AMD AM4 processors, it features PCIe 4.0 speed, DDR4 Memory Boost, and Wi-Fi 6E connectivity. Complete with EZ DIY troubleshooting tools and robust power protection, it ensures a fast, reliable build.

View details

Product Specifications

Warranty Information

Reviews

Specification	Details
Model	PRO B550M-P WIFI6E
Form Factor	Micro-ATX
Socket	AM4
Chipset	AMD B550
CPU Support	AMD Ryzen™ 5000 & 3000 Series (excl. R5 3400G & R3 3200G), 4000 G-Series
Memory Slots	4x DDR4 DIMM slots (Up to 128GB)
Memory Speed	Supports up to 4400+ MHz (A-XMP OC mode), Dual-Channel, Non-ECC
Expansion Slots	1x PCIe 4.0 x16 slot (from CPU), 2x PCIe 3.0 x1 slots (from Chipset)
Graphics Output	1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz), 1x VGA (2048x1536@50Hz)
Storage Slots	1x M.2 (PCIe 4.0 x4 / SATA), 1x M.2 (PCIe 3.0 x4), 4x SATA 6Gb/s ports
RAID Support	RAID 0, 1, 10 for SATA; RAID 0, 1 for NVMe
Wireless & Bluetooth	Wi-Fi 6E (2.4GHz/5GHz/6GHz, 802.11ax), Bluetooth 5.3
Ethernet LAN	Realtek® RTL8111H 1Gbps LAN
Audio	Realtek® ALC897 Codec, 7.1-Channel High Definition Audio
Rear USB Ports	4x USB 5Gbps Type-A, 2x USB 2.0 Type-A
Front USB Connectors	1x USB 5Gbps Type-C, 2x USB 5Gbps Type-A, 4x USB 2.0
Internal Headers	1x CPU Fan, 2x System Fan, 2x Addressable V2 RGB (JARGB_V2), 2x RGB (JRGB), 1x TPM header, 1x COM Port
Power Connectors	1x 24-pin ATX main power, 1x 8-pin ATX 12V power (Solid Pin design)
Diagnostic & Safety	4x EZ Debug LEDs, Overcurrent Protection (OCP), Transient Voltage Suppressors (TVS)
Operating System	Supports Windows® 11 64-bit, Windows® 10 64-bit

Product Warranty: 1 Year

Warranty covers defects or dead-on-arrival items with original receipt and packaging. It excludes damage from misuse, power issues, unauthorized repairs, and software/data.
To claim, contact us within the warranty period with all accessories and packaging. Warranty is non-transferable and for the original buyer only.
For questions, contact us or check our warranty information.
